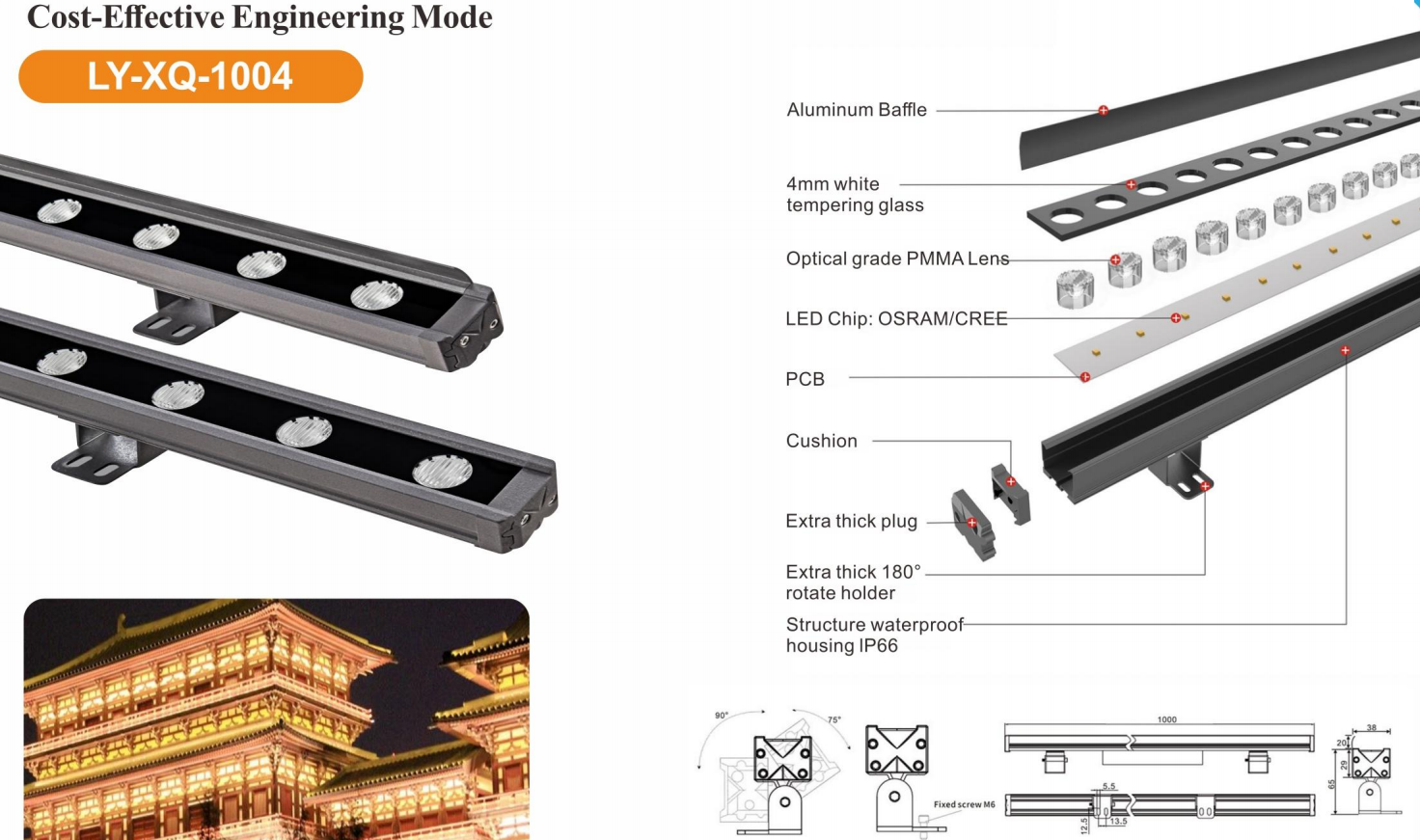

waterproof design without irrigation structure, can be retrofitted with integrated baffle design to effectively control the angle of the beam to avoid glare.

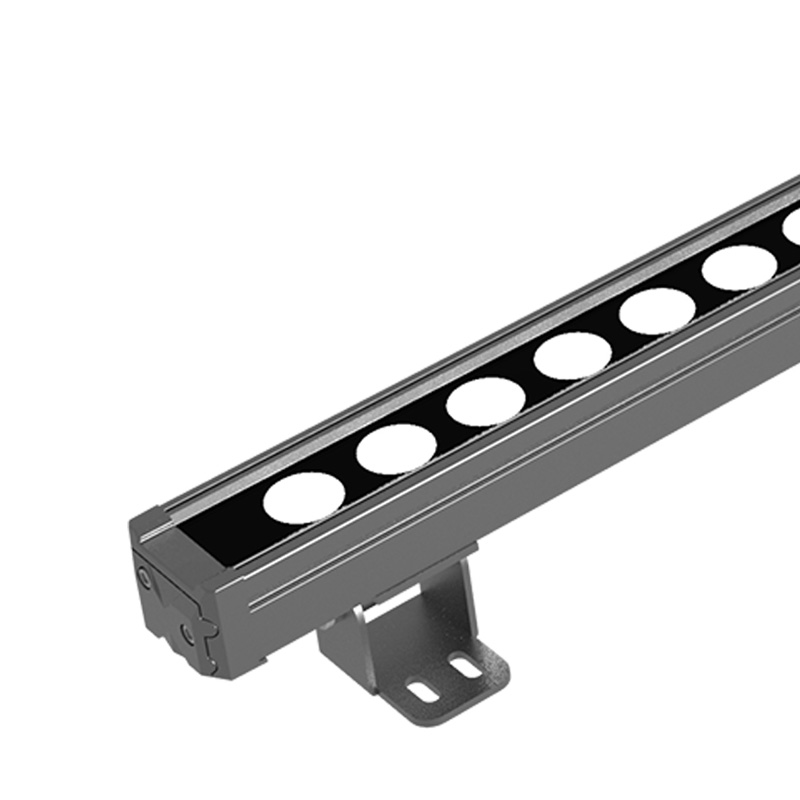

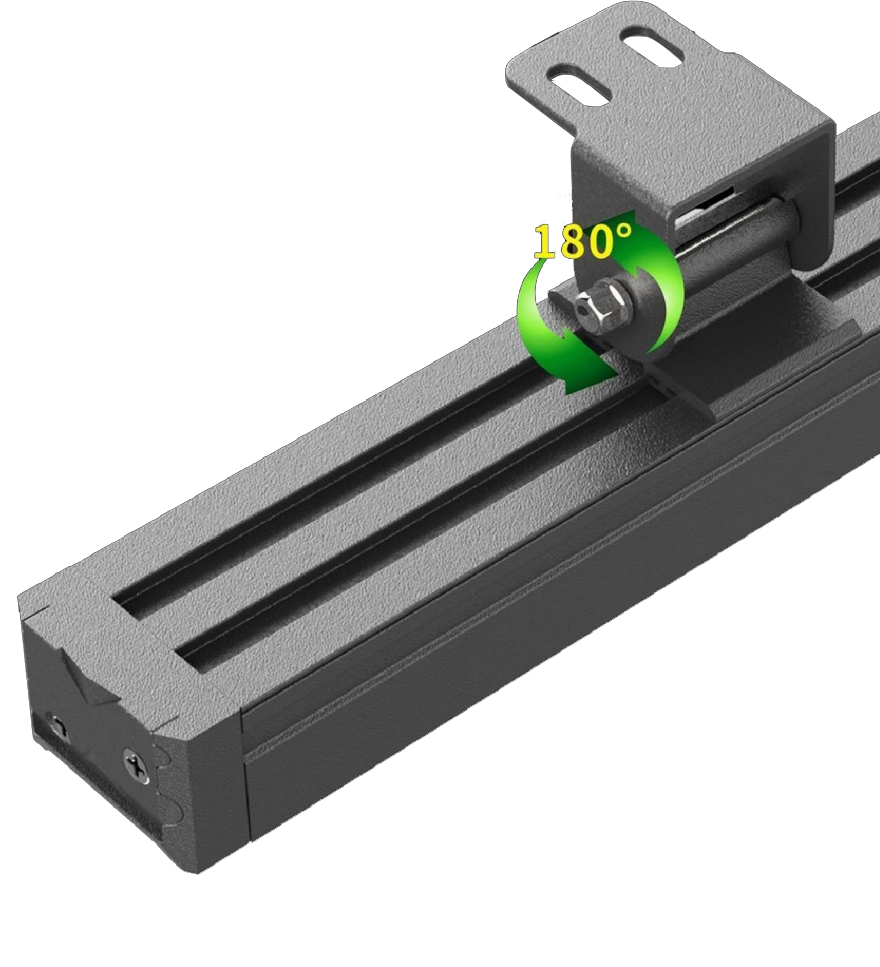

180 ° adjustable bracket.
RGB/RGBW wall washer capabilities.
Low voltage outdoor wall wash light operation (-30°C to +50°C).

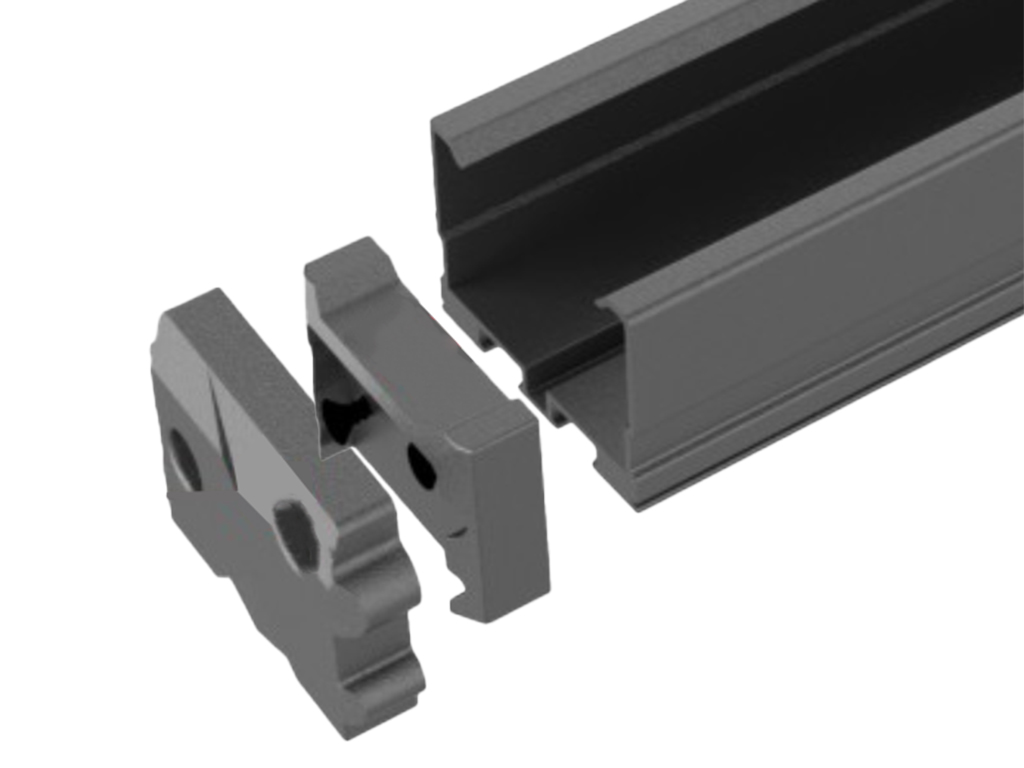

Maintenance-free design with glue-free waterproof seals.

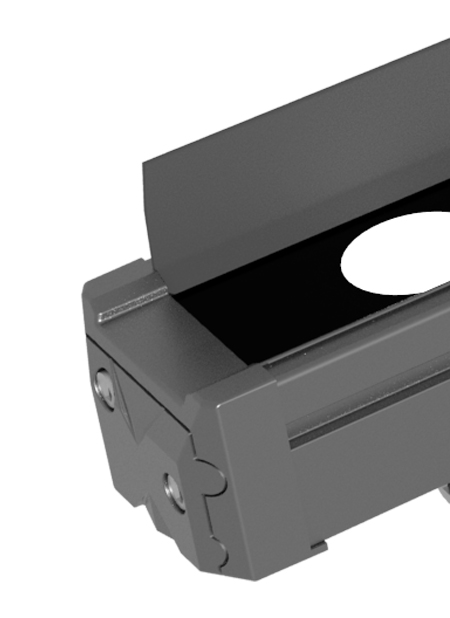

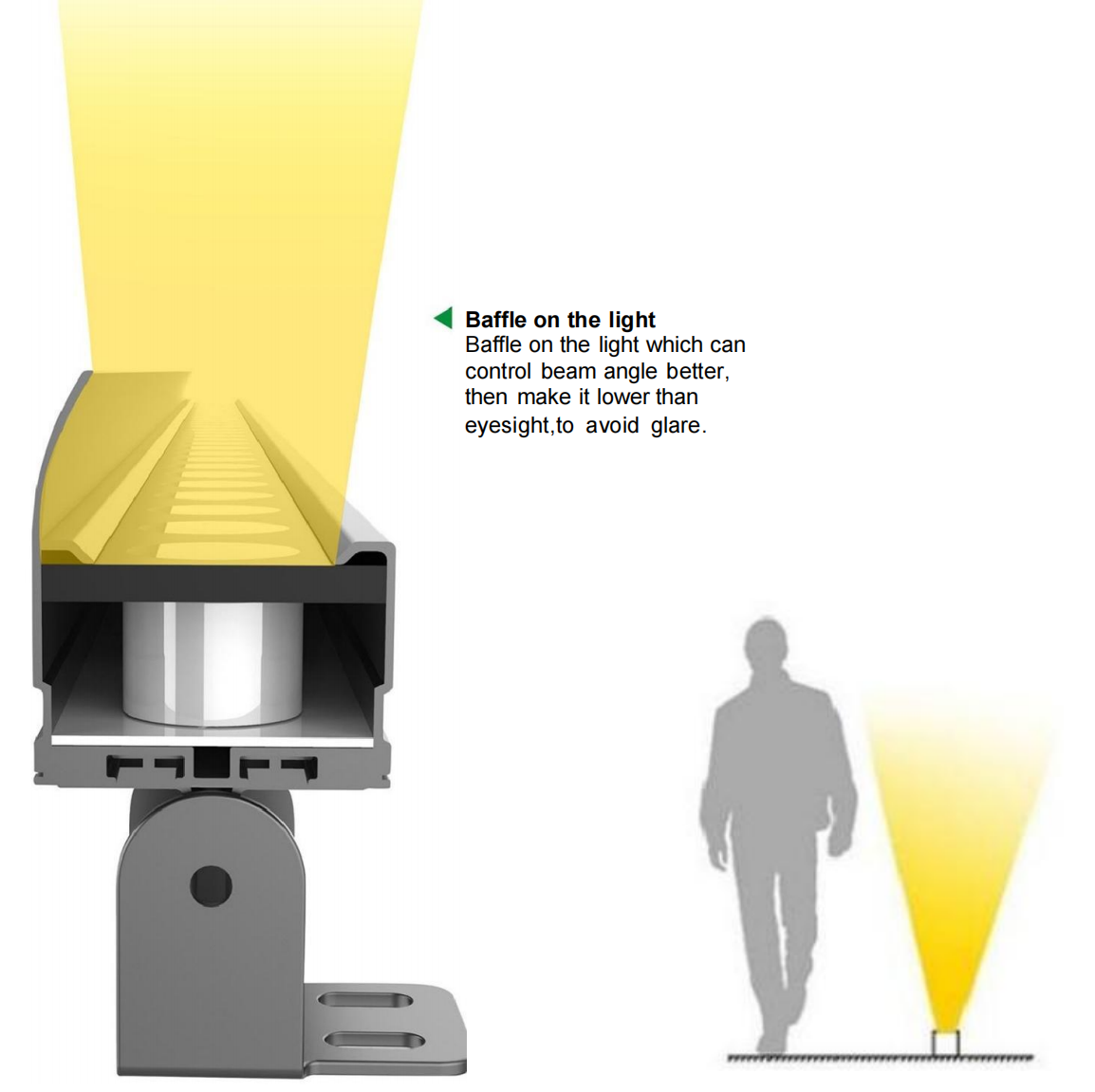

Adoption of integrated baffle design
Customized Engineering.
Anti-glare treatment.
The housing can be customized color.
Single color/RGB/RGBW DMX512.
1.5M deep soak test before leaving the factory.

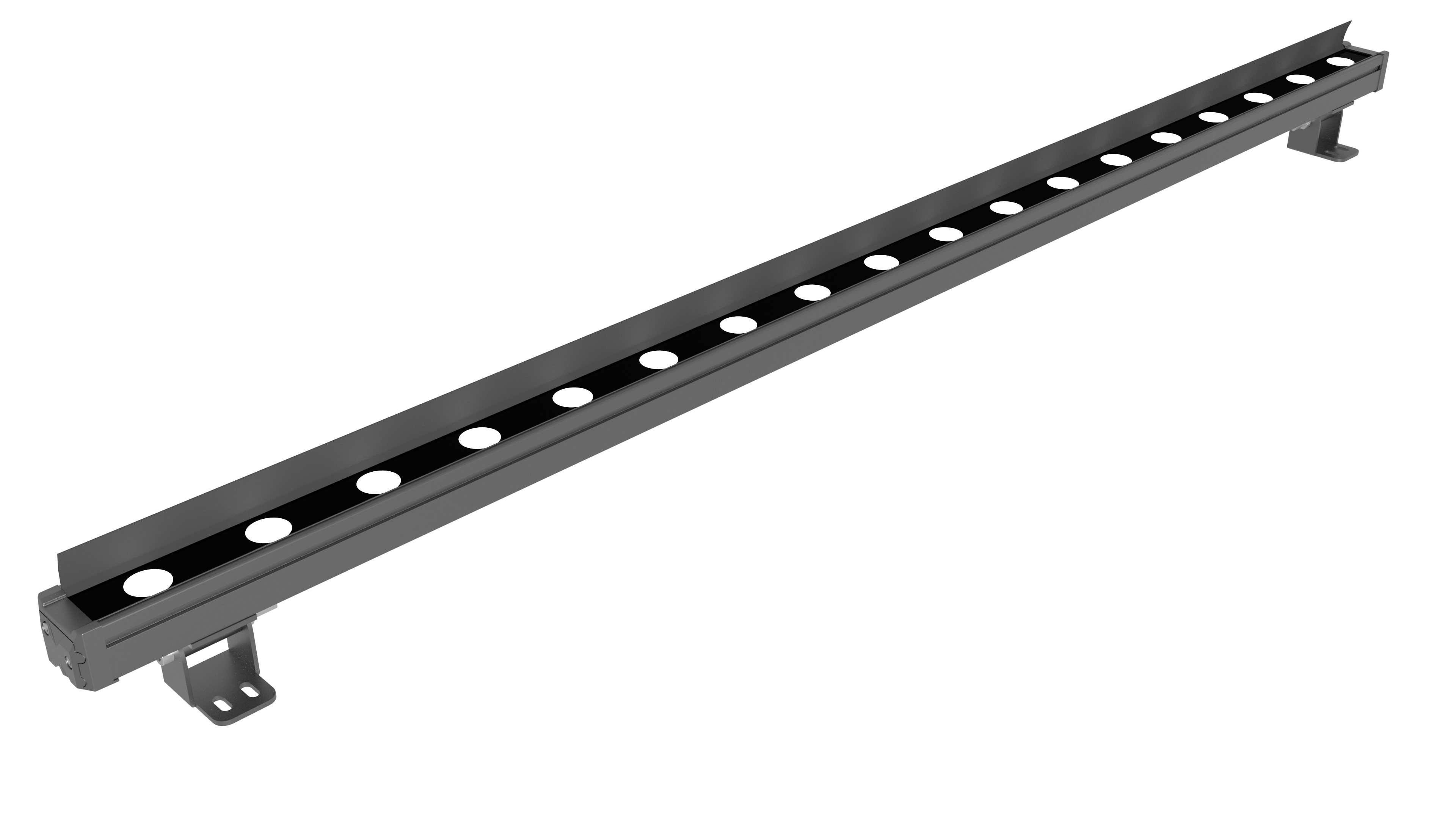

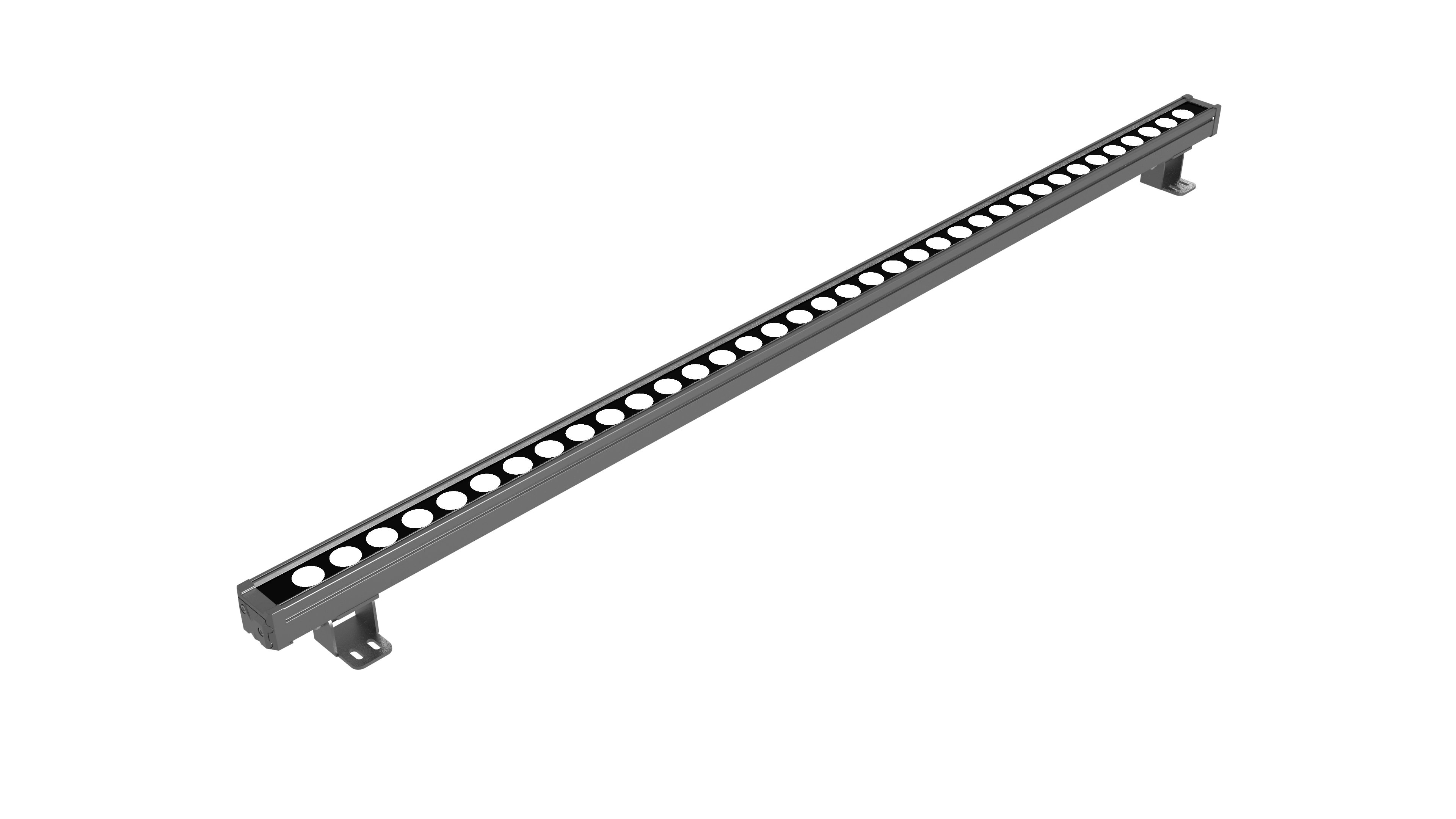

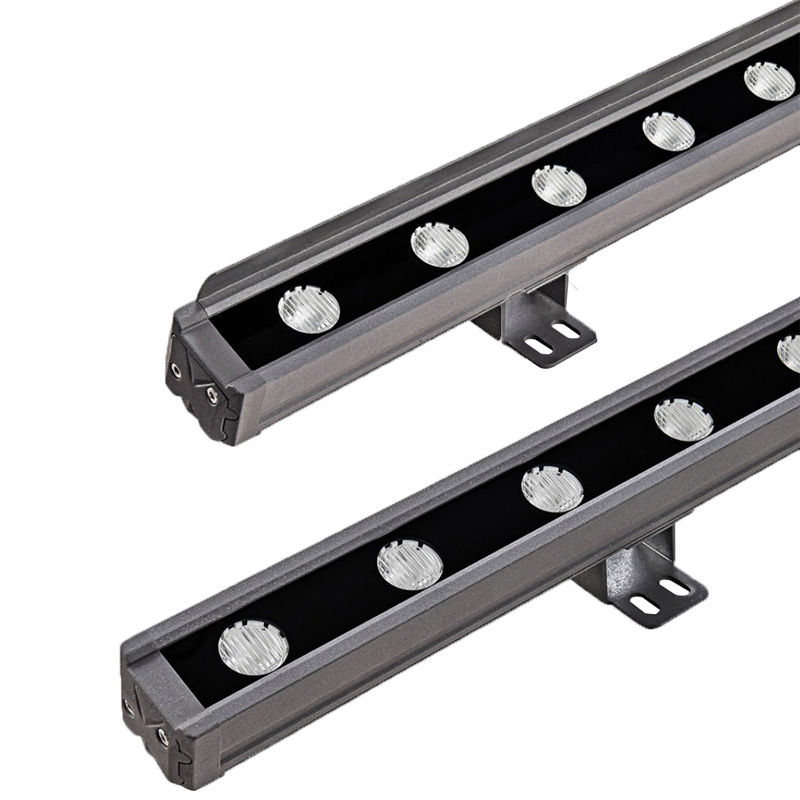

Model
Power
Input Voltage
Lighting Color
Control Ways
LY-XQ-1004A
18W
DC24V/AC220V
1700-6500K/R/G/B/Y
ON/OFF
LY-XQ-1004A1
36W
DC24V
RGBW
DMX512
LY-XQ-1004B
24W
DC24V/AC220V
1700-6500K/R/G/B/Y
ON/OFF
LY-XQ-1004B1
48W
DC24V
RGBW
DMX512
LY-XQ-1004C
36W
DC24V/AC220V
1700-6500K/R/G/B/Y
ON/OFF

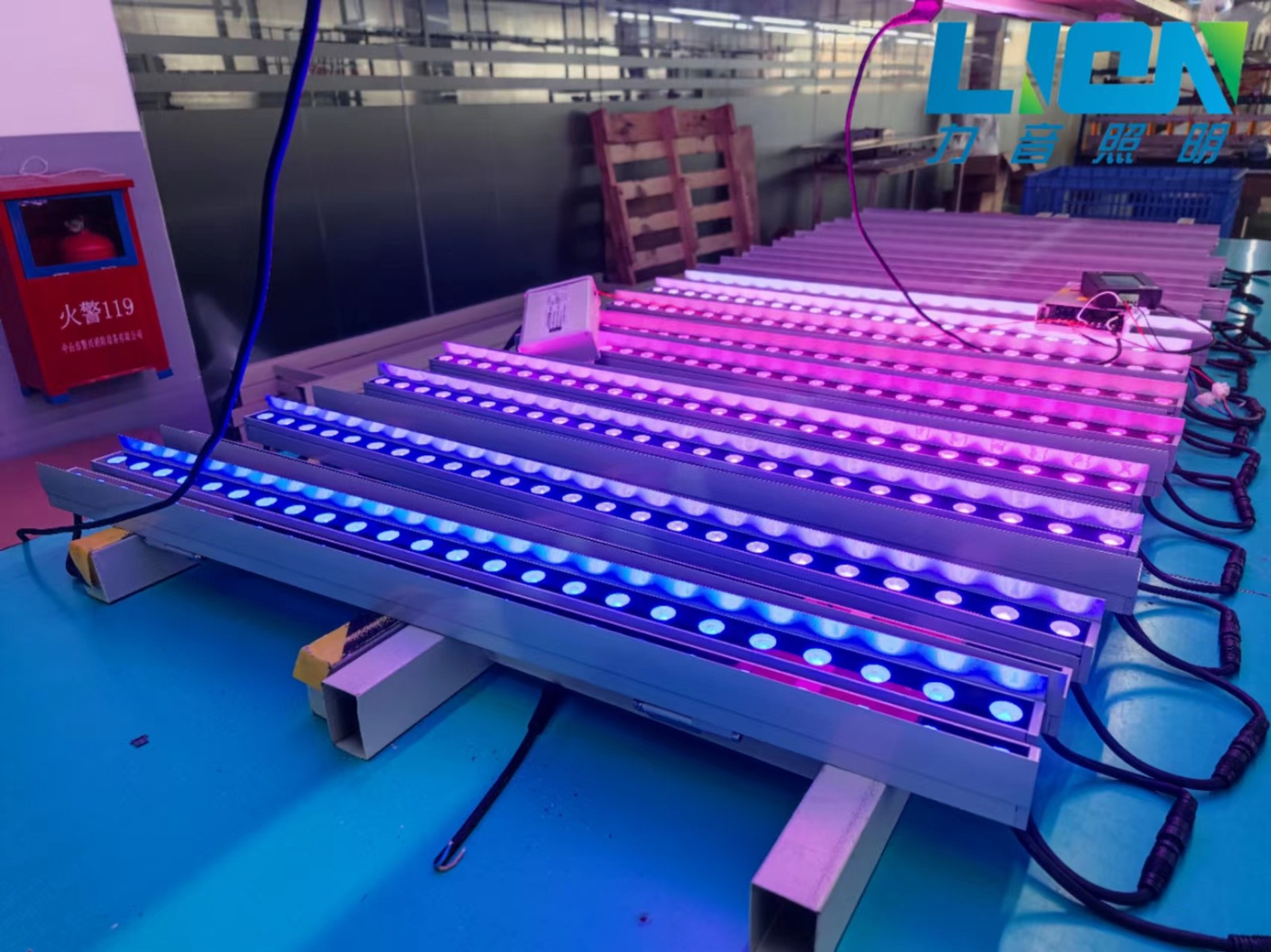

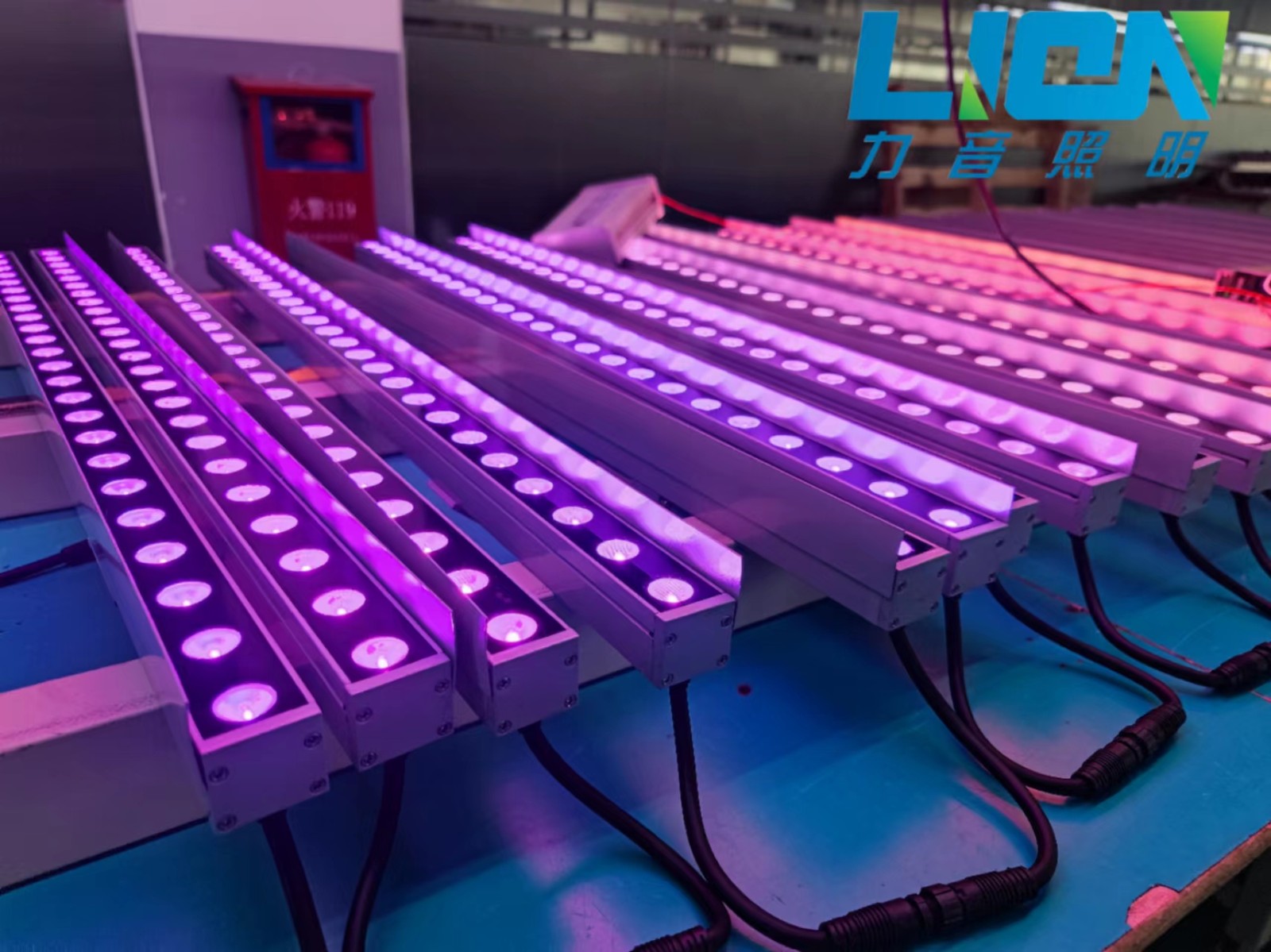

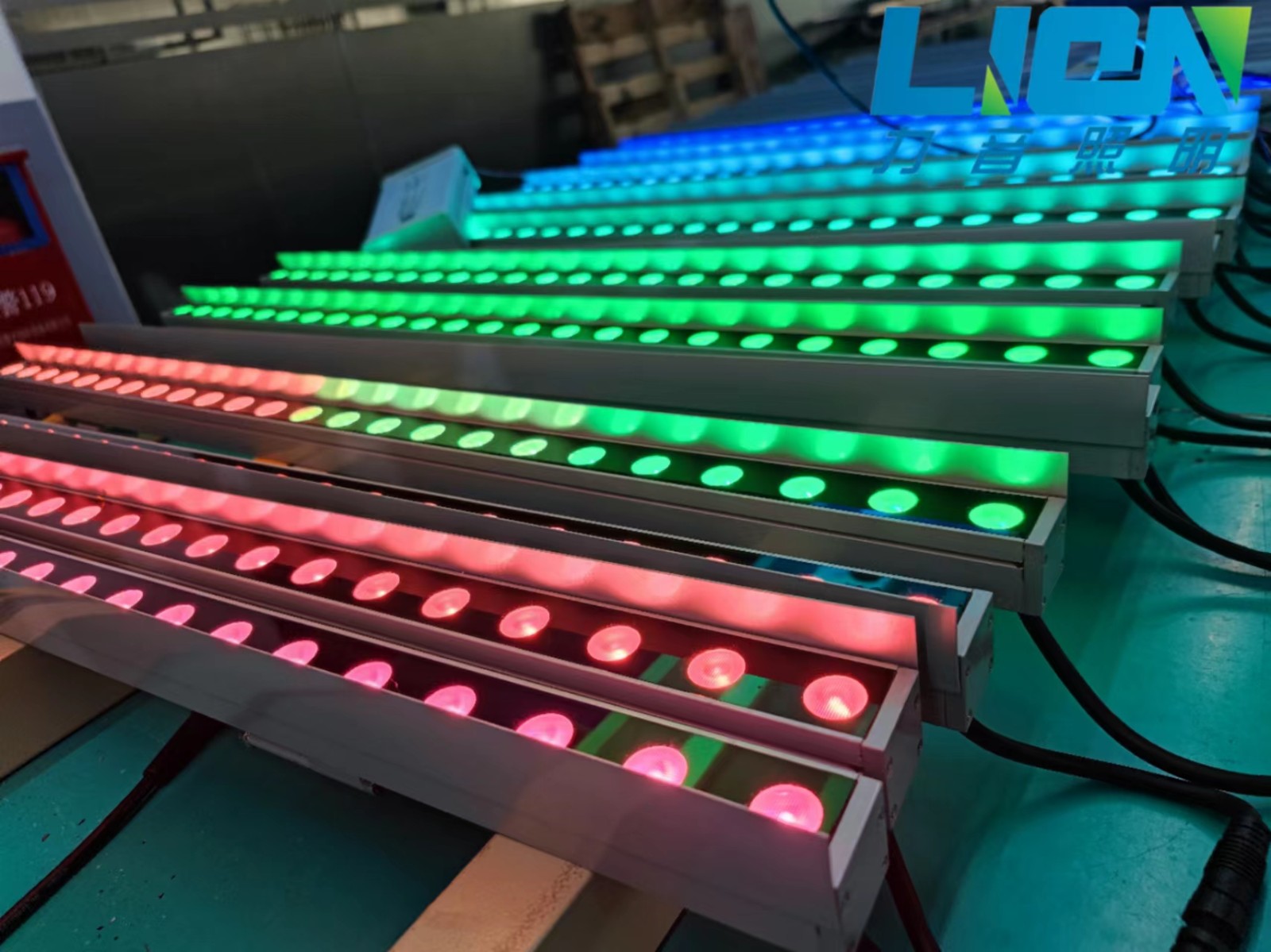

RGBW TEST
RGBW TEST
RGBW TEST
RGBW TEST
Housing customized

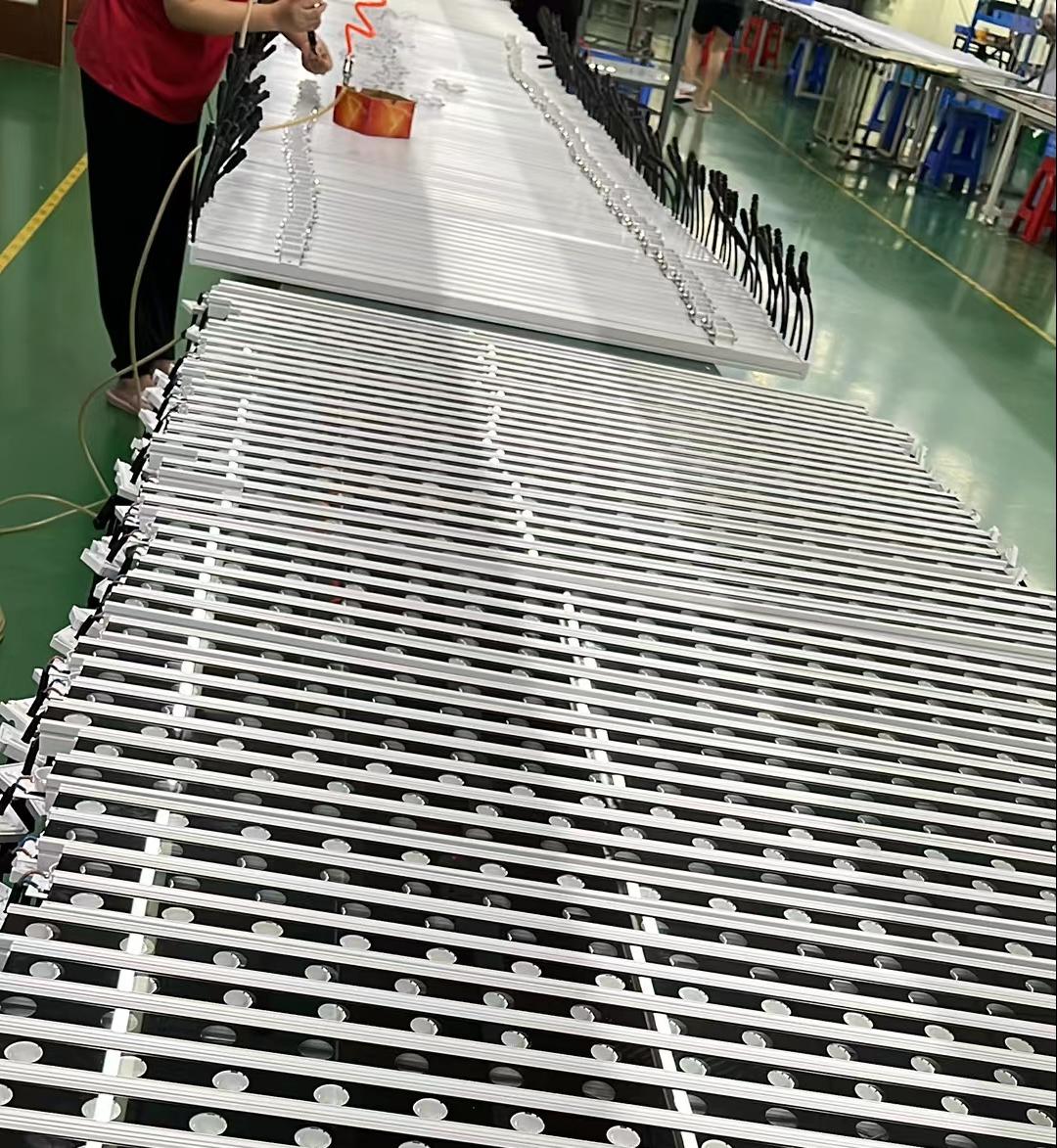

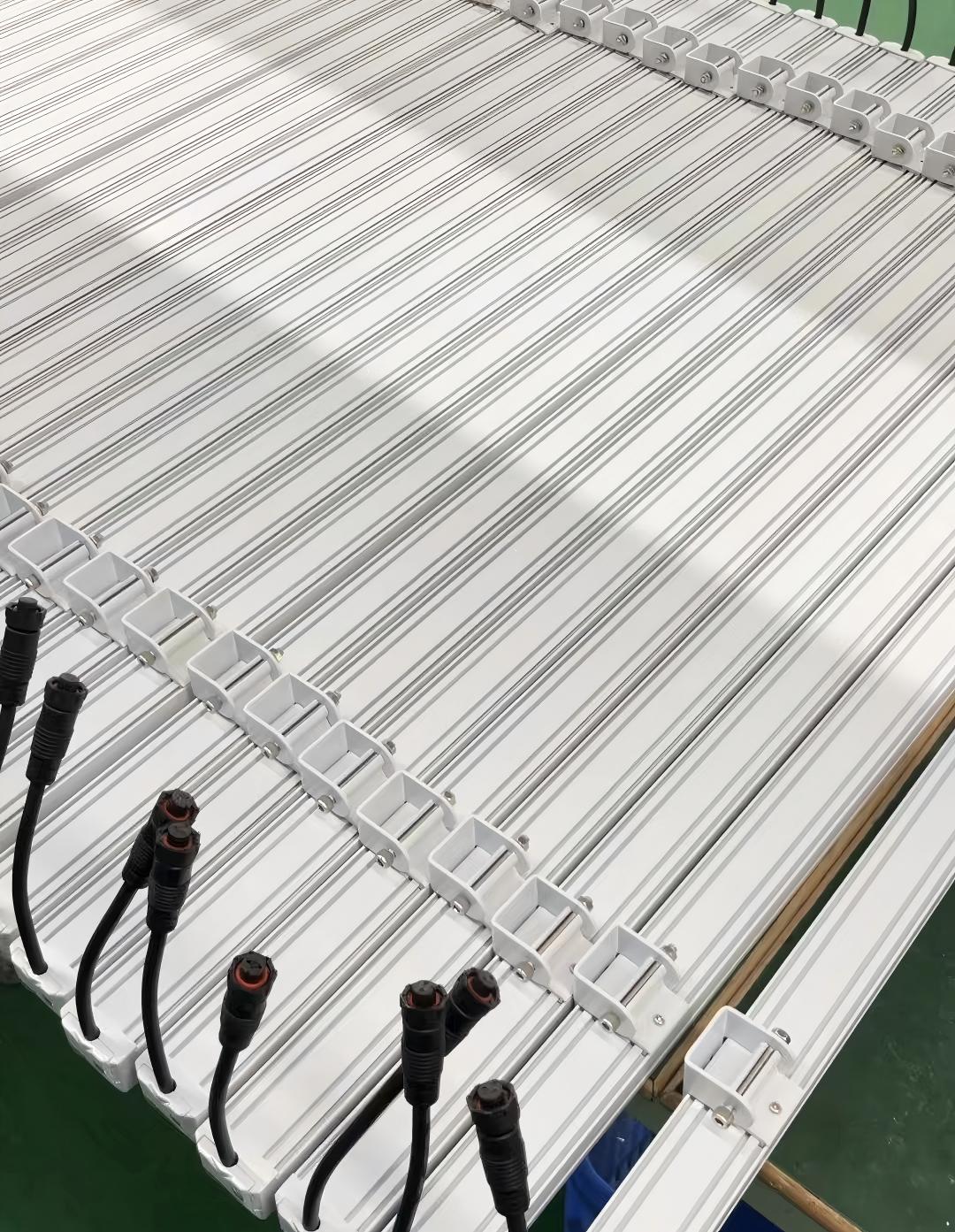

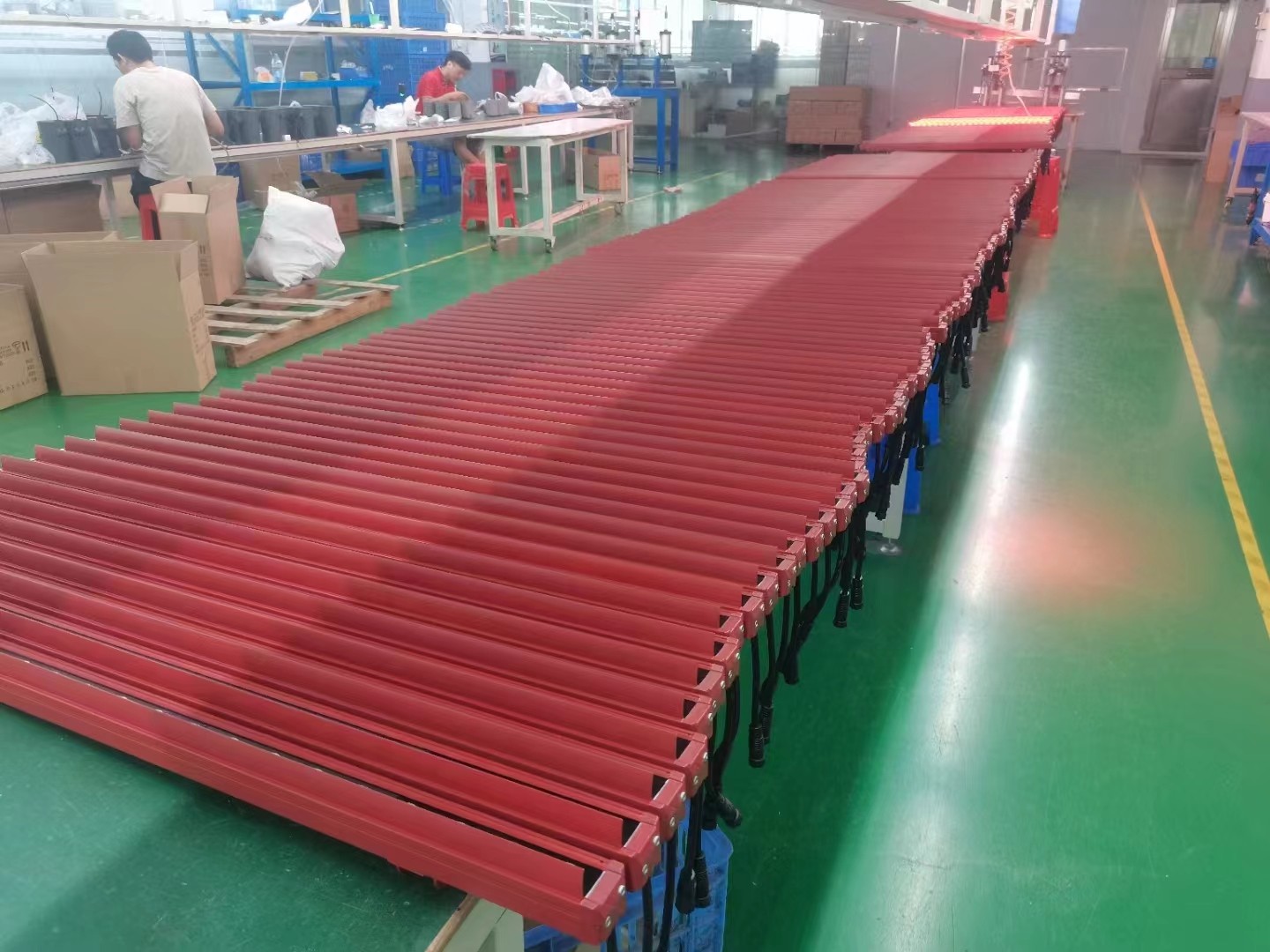

Production

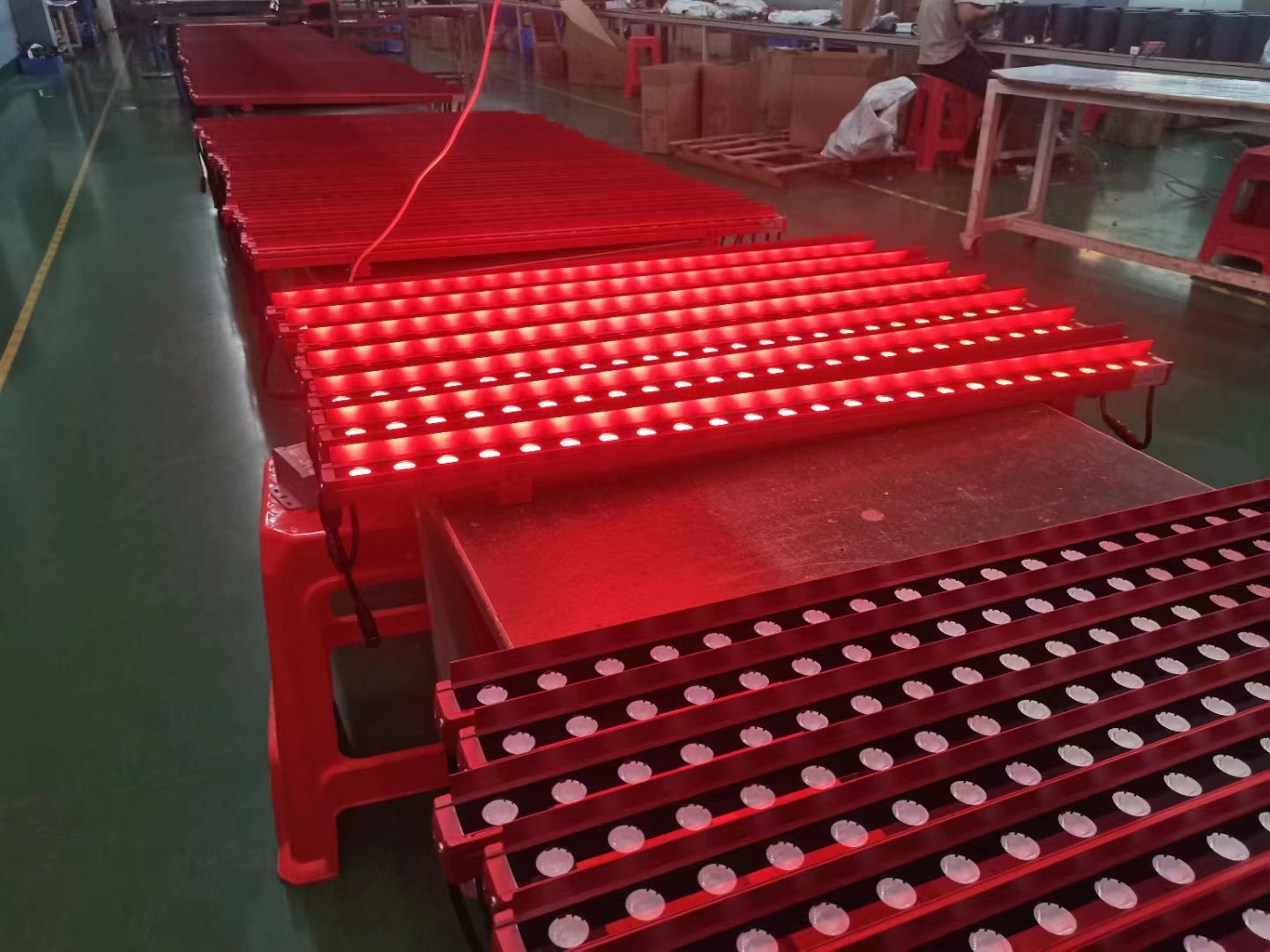

Aging
Aging
Our advantage
24-hour service
Foreign trade cattle is based on the premise of big data analysis
Unlock the goods
Foreign trade cattle is based on the premise of big data analysis
24-hour service
Foreign trade cattle is based on the premise of big data analysis
Convenient search
Foreign trade cattle is based on the premise of big data analysis
About led wall washer light:
Wall Washer Light, known in English as Wall Washer Light, is a lighting device that covers the surface of a wall or object by evenly projecting light. Its core design concept is through a wide angle beam of light “scrub” to the target area, to eliminate shadows and enhance the sense of three-dimensionality, so as to highlight the architectural structure, material texture or artistic decorative details.
Key functions include:
Uniform illumination: Eliminate localized dark areas to achieve large area coverage.
Atmosphere creation: change the mood of the space through the adjustment of color and brightness.
Visual guidance: Utilize light directionality to highlight architectural contours or display highlights.
Energy saving and environmental protection: Reduce energy consumption by adopting high-efficiency light source technology (e.g. LED).
2. LED Wall Washer Light (LED Wall Washer Light)
LED technology is the core driver of contemporary wall washer lights. Compared with traditional halogen or fluorescent lamps, LED Wall Washer Light has the following significant advantages:
Energy efficient: LED luminous efficacy of up to 100-150 lumens/watt, consuming only 20% of the energy of traditional light sources.
Long life span: 50,000 hours or more, reducing maintenance costs.
Color accuracy: support wide color gamut display, especially suitable for places that require high color rendering (CRI>90).
Environmental protection: no mercury and other harmful substances, in line with green building standards.
Application Scenarios: Building facade lighting, museum display, commercial window display, etc.
3. RGB Wall Washer Light (RGB Wall Washer Light)
RGB Wall Washer Light is the first choice for dynamic lighting design through the mixing of the three primary colors of red (Red), green (Green) and blue (Blue), which can generate more than 16 million color variations. Its technical features include:
Intelligent control: supports DMX512, Wi-Fi or Bluetooth protocols for remote color mixing and programming.
Dynamic effects: Gradient, jumping, breathing and other modes can be set to adapt to holiday celebrations or theme exhibitions.
Scene linkage: linkage with music rhythm, sensors or other smart devices to create an immersive experience.
Typical cases: festive light shows in city landmarks, stage background lighting, smart home ambience systems.
4. Adjustable Wall Washer
Adjustable Wall Washer emphasizes the flexibility of installation and light effect, common designs include:
Angle Adjustment: Supports 180° horizontal and 90° vertical rotation to precisely control the beam direction.
Beam Angle Adjustment: Change the beam width (e.g. 15° narrow to 60° wide angle) through lens or reflector.
Brightness grading: Multi-speed brightness or induction dimming to adapt to different environmental needs.
Applicable scenes: art museum sculpture lighting, retail store merchandise display, building columns three-dimensional lighting.
5. Wall Mounted Wall Washer Light
The Wall Mounted Wall Washer Light is designed for fixed installations and features include:
Compact: Typically less than 10cm thick, it blends seamlessly into building facades.
Protection: Outdoor models up to IP65/IP66, dust and water resistant.
Convenient installation: Pre-set screw holes or snap-in design supports wall, floor or ceiling mounting.
Application areas: hotel corridor wall lighting, bridge guardrail lighting, outdoor billboard fill light.
