Features：
1.Fluid Mechanics Design for Aesthetic and Functional Excellence
1.1Perfect Fusion of Form and Function
The LED wall washer light adopts fluid mechanics design, ensuring that its aesthetic form and product functionality are perfectly combined. The lamp’s shape is exquisite and beautiful, making it an ideal choice for high-end architectural lighting projects where visual appeal is as important as performance. 2.2 Fully Structural Waterproof Design (IP66 Rated)
Unlike traditional LED fixtures that rely on potting compounds for waterproofing, this wall washer features a fully structural waterproof design. With a protection level of IP66, it is completely resistant to dust ingress and powerful water jets, making it suitable for harsh outdoor environments. The absence of potting materials also enhances heat dissipation, prolonging the lifespan of the LED components.
---
2.High-Quality Materials for Extreme Durability

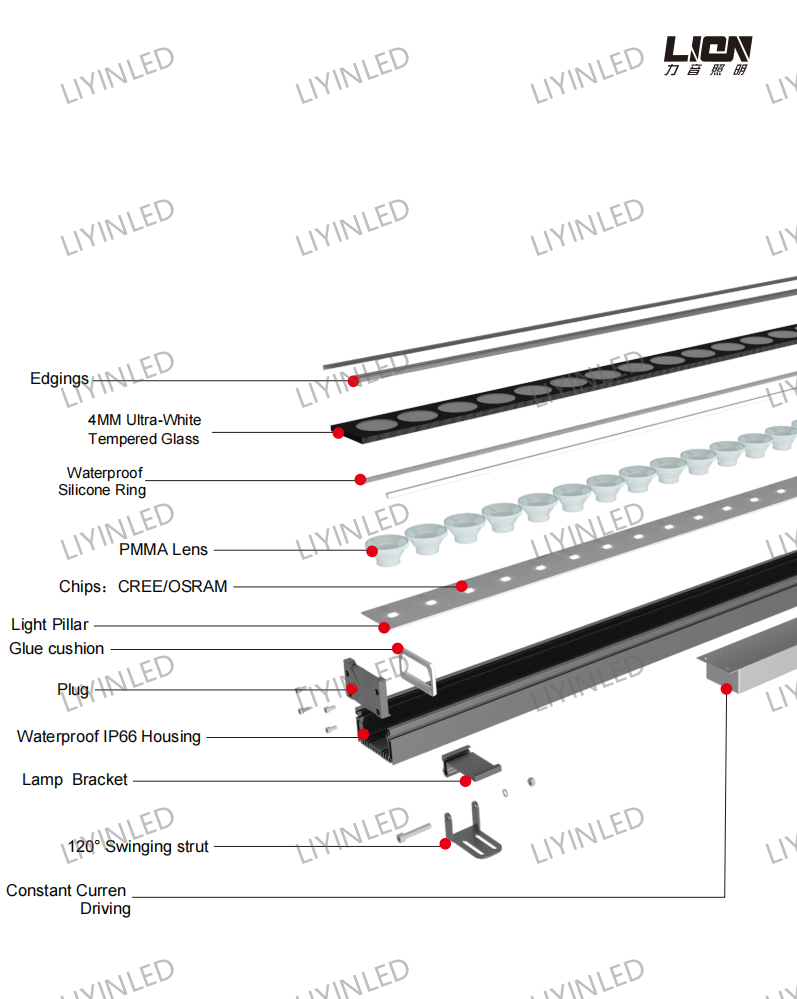

2.1 Aerospace-Grade Aluminum Profile
The lamp body is constructed from aerospace aluminum profile, known for its lightweight yet ultra-durable properties. This material ensures excellent heat dissipation, preventing overheating and maintaining optimal LED performance.
2.2 SUS304 Stainless Steel Screws
To further enhance durability, the fixture is assembled with SUS304 stainless steel screws, which offer superior resistance to rust and corrosion. This makes the light suitable for coastal areas or industrial zones where saltwater and chemical exposure are concerns.
2.3 Electrostatic Spray Coating (Outdoor Grade)
The surface of the LED wall washer undergoes electrostatic spray coating, providing an additional layer of protection against UV rays, acid rain, and extreme weather conditions. This outdoor-grade finish ensures long-lasting color retention and structural integrity.
---
3. Premium Light Source and Optical Performance
3.1 High-Efficiency CREE/OSRAM LEDs
Equipped with imported CREE or OSRAM LED chips, the wall washer delivers exceptional color rendering (CRI >80) and consistent brightness. These high-end light sources ensure vibrant and accurate color reproduction, making them ideal for architectural and artistic lighting.
3.2 High-Transmittance Optical Lenses
The fixture incorporates high-transmittance optical lenses, which maximize light output efficiency while minimizing energy loss. This results in brighter illumination with lower power consumption, enhancing overall energy savings. 4.3 Optional Anti-Glare Light Shield
To reduce light pollution and improve visual comfort, an anti-glare light shield is available as an optional accessory. This feature ensures that the light is directed precisely where needed, preventing unwanted glare and light spillage.
---
4. Advanced Color Control and Smart Lighting Solutions
4.1 Versatile Color Options
The LED wall washer is available in multiple configurations:
-Single Color (White or RGB)
- RGB Three-in-One (Full Color Mixing)
- RGBW Four-in-One (RGB + White for Enhanced Flexibility)
4.2 DMX512 Control System
Supporting the DMX512 control protocol, these lights can be seamlessly integrated into professional lighting systems. This allows for:
- Dynamic color-changing effects
- Synchronized group control
- Precision dimming and scene programming

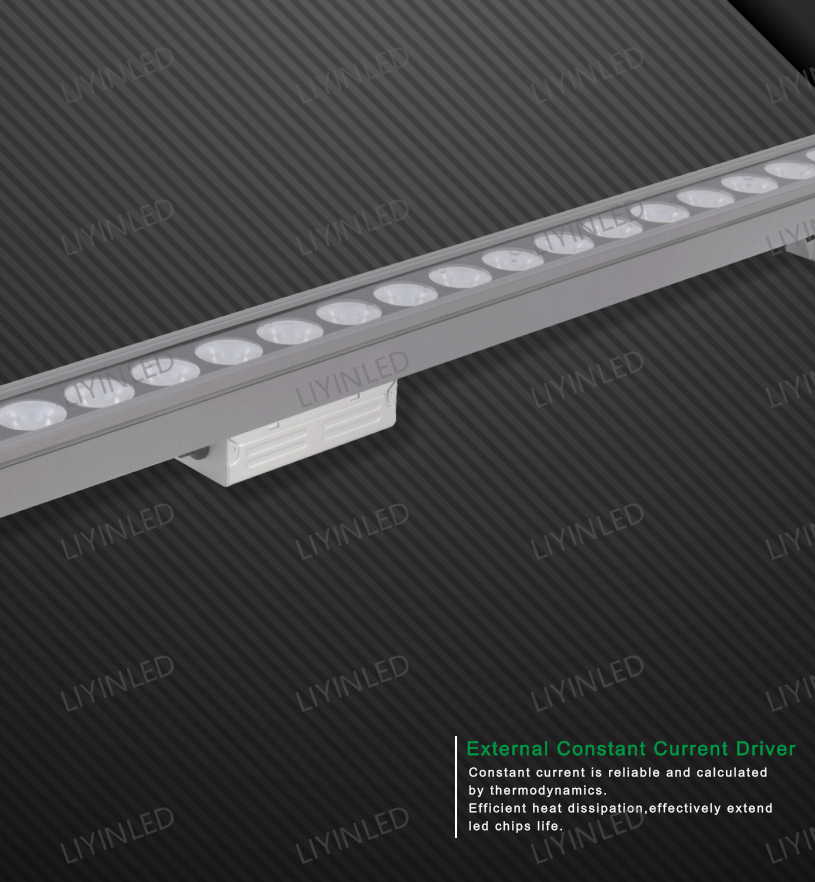

4.3 High-Quality Power Supply with EMI Protection
The built-in brand power supply ensures stable performance with excellent electromagnetic compatibility (EMC). It prevents electromagnetic interference (EMI), making the light safe for use in sensitive environments such as hospitals, airports, and residential areas.
---
5. Applications of LED Wall Washer Lights
Thanks to their durability, high brightness, and flexible control, these lights are widely used in:
- Architectural Facade Lighting (Highlighting buildings, monuments, and bridges)
- Landscape Lighting (Gardens, parks, and water features)
- Commercial Displays (Shopping malls, hotels, and signage)
- Entertainment Venues (Theaters, concert stages, and event lighting)
| LED WALL WASHER LAMP DETAILS |
|---|
| Model No. | LY-XQ-1005(Large Lens) | LY-XQ-1005(Small Lens) |
| Power | 24W/36W/48W
| 48W-72W
| 24W/36W/48W | 48W-72W |
| CCT | Single color | RGB/RGBW | Single color | RGB/RGBW |
Voltage
| AC220V/DC24V | AC220V/DC24V |
Led Chips Qtys
| 24/36/48PCS
| 24/36/48PCS |
Beam Angle
| 3°/6°/8°/ 10°/ 15° | 20°/30°/45°/60°/15x45°/10x60°/20x40° |
Control
| ON/OFF | DMX512 | ON/OFF | DMX512 |

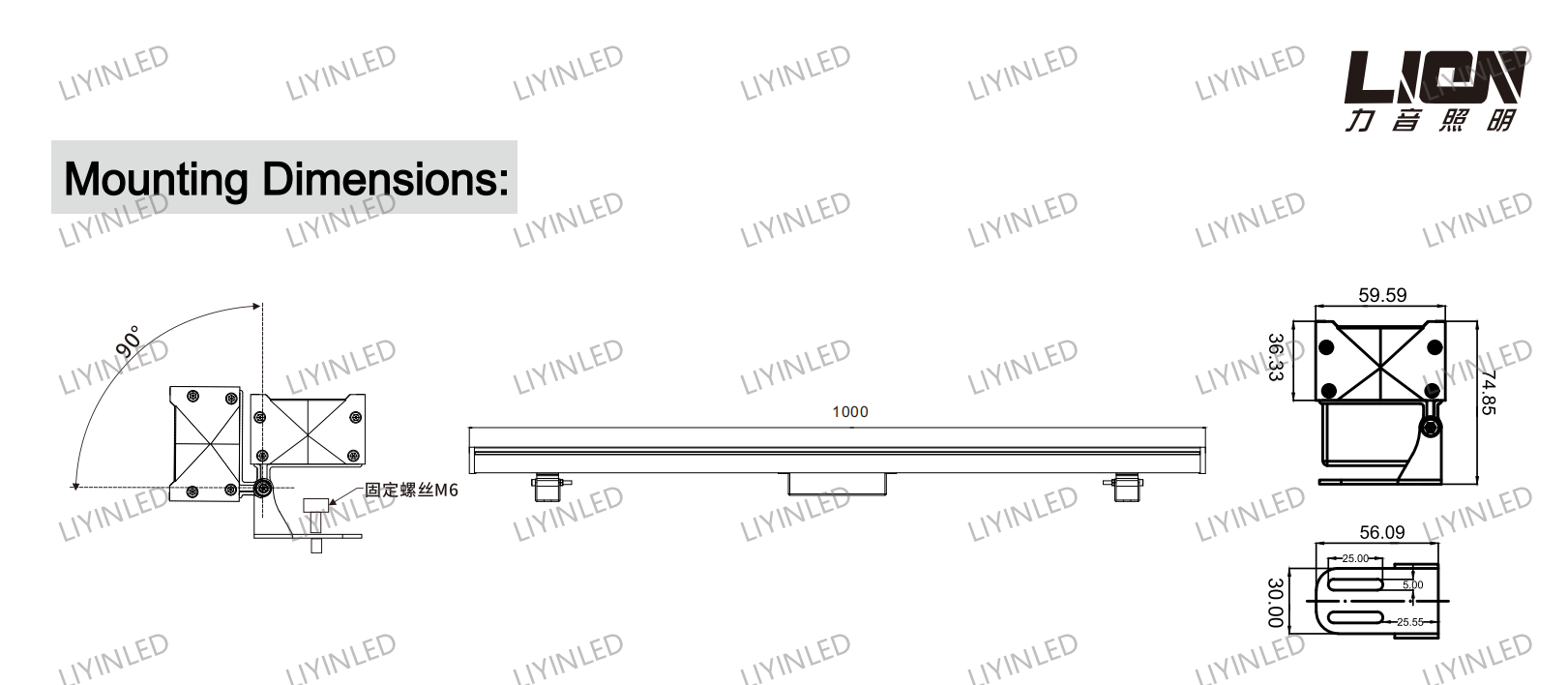

Product size
| L1000/500/300xW59XH75mm | L1000/500/300xW59XH75mm |
