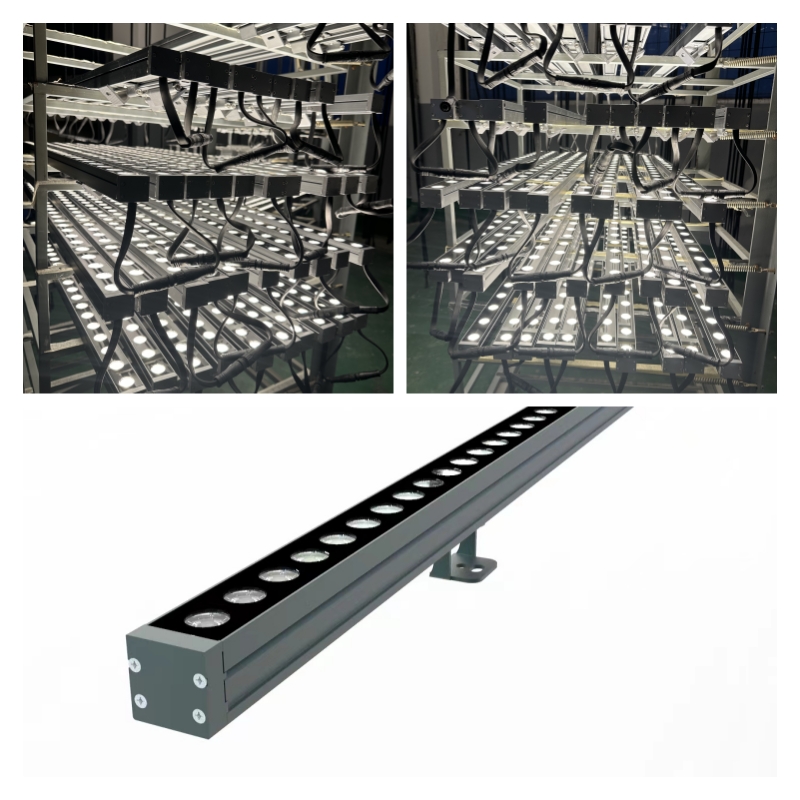

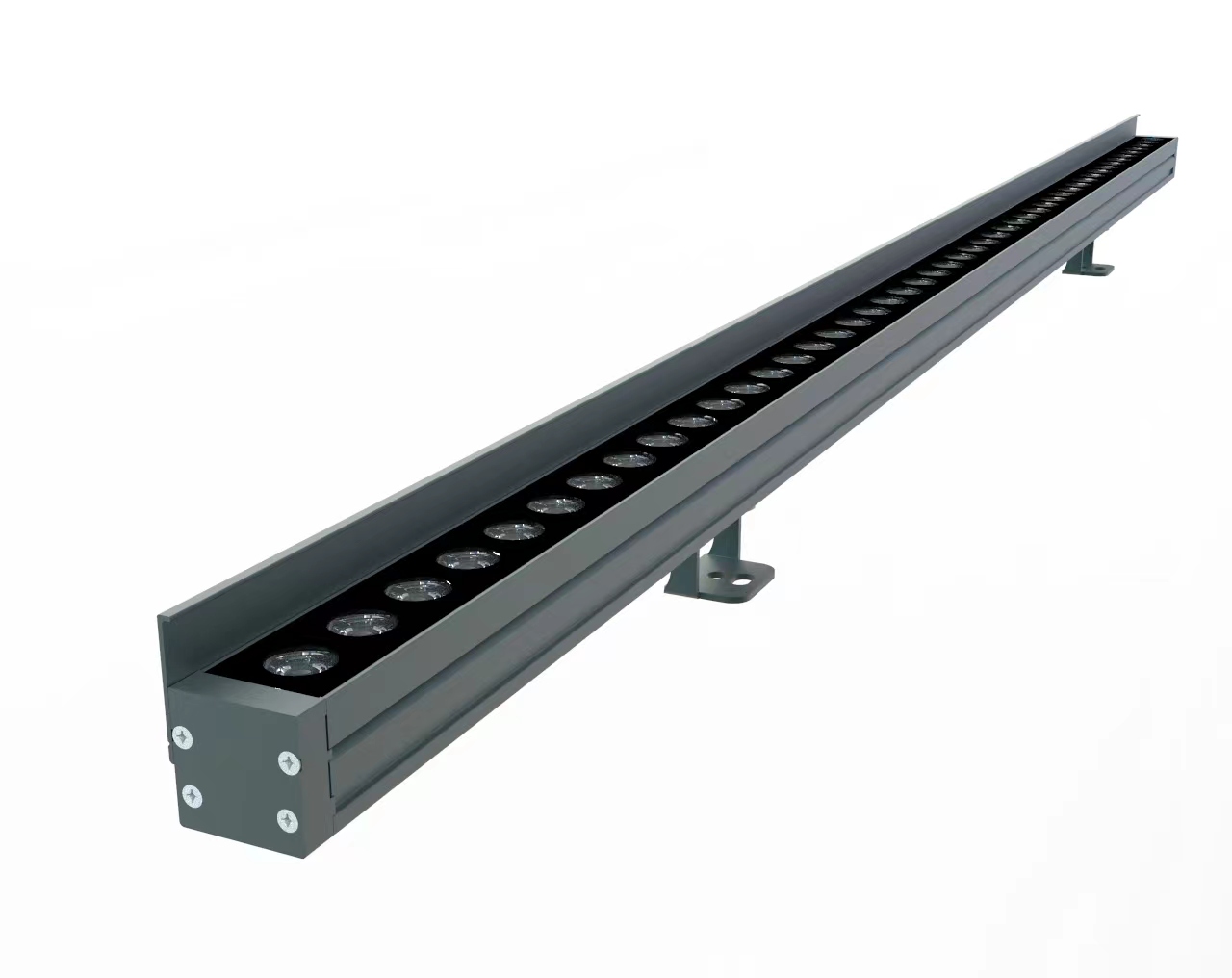

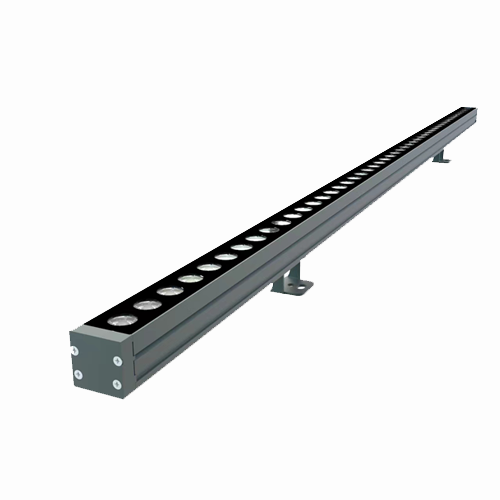

Cost-effective Series Structure Waterproof Led Wall Washer Light
In the realm of outdoor lighting, fixtures must withstand the harshest tests—scorching sun, torrential rain, freezing cold, and extreme heat—while delivering exceptional performance to illuminate spatial beauty. The IP66 structural waterproof wall wash luminaire stands as a masterpiece that integrates cutting-edge technology, artisanal craftsmanship, and extraordinary design, providing a durable, weather-resistant lighting solution for architectural contours, landscape sculptures, and outdoor environments.
Model
Power
Input Voltage
Lighting Color
Control Ways
Pro.size(mm)
Beam angle
LY-XQ-1011A
18W
DC24V
1700-6500K/R/G/B/Y
ON/OFF

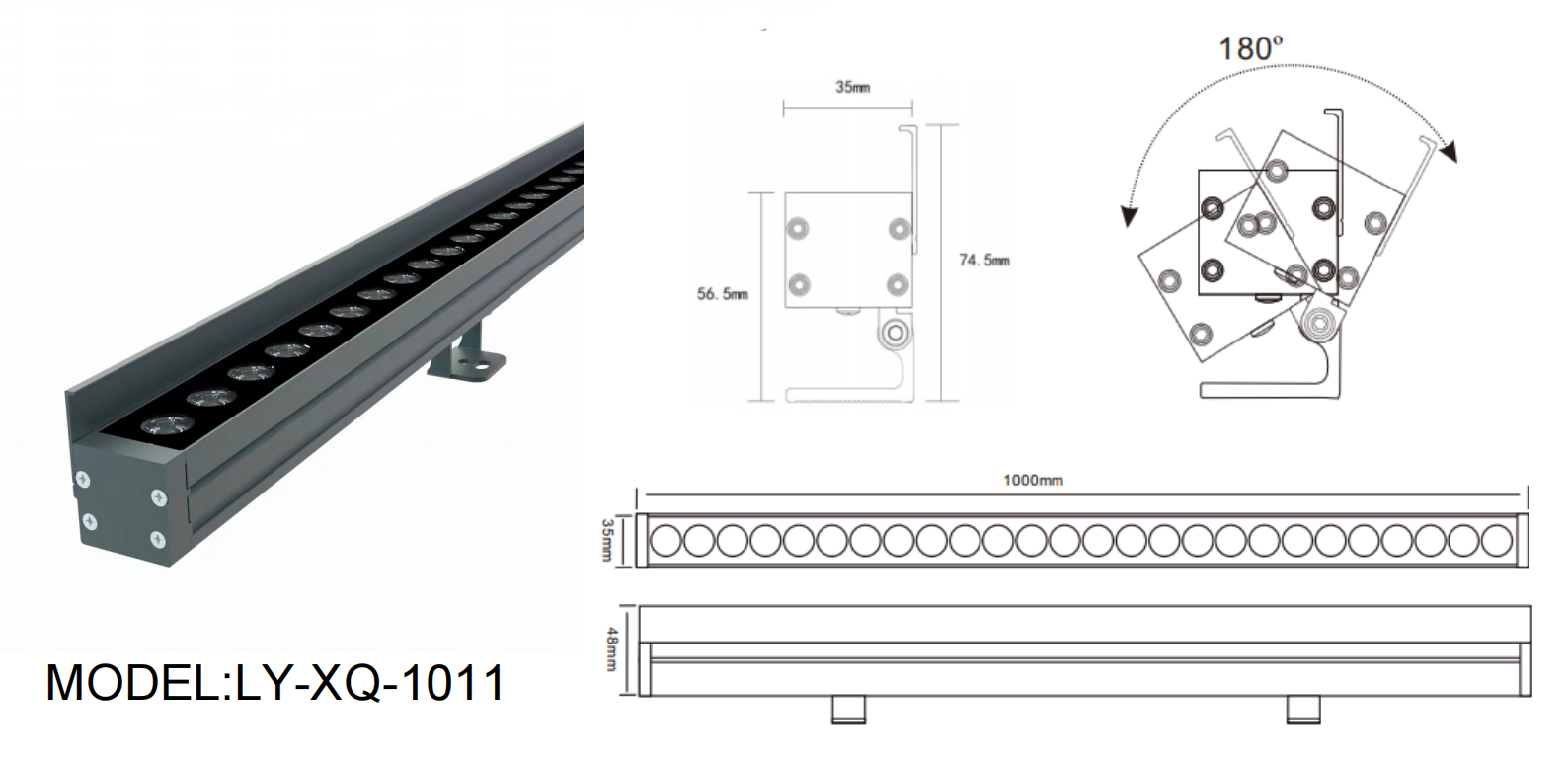

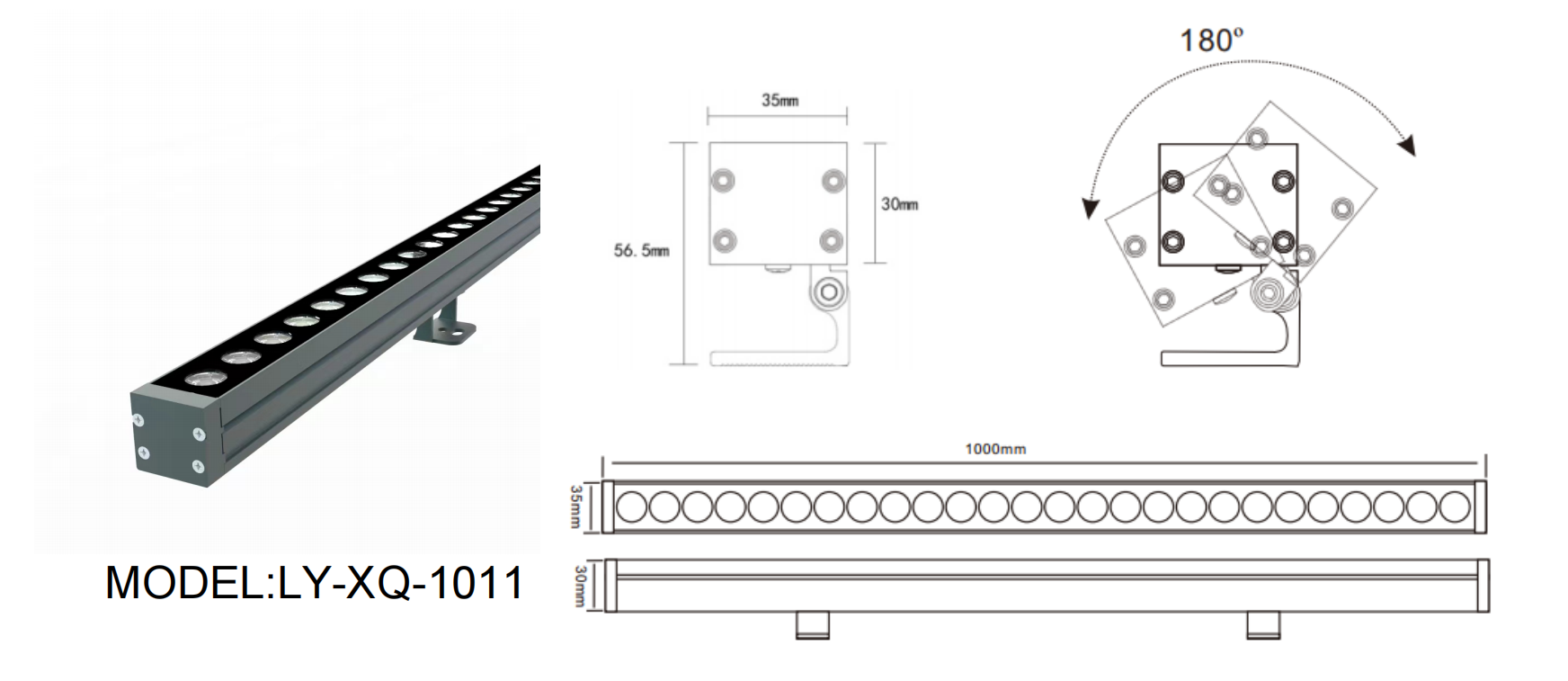

L1000*W35*H56.5
10*60°/25*40°
LY-XQ-1011A
24W
DC24V
1700-6500K/R/G/B/Y
ON/OFF
L1000*W35*H56.5
10*60°/25*40°
LY-XQ-1011A
36W
DC24V
1700-6500K/R/G/B/Y
ON/OFF
L1000*W35*H56.5
10*60°/25*40°
LY-XQ-1011A
36W
DC24V
RGB
DMX512
L1000*W35*H56.5
10*60°/25*40°
LY-XQ-1011A
48W
DC24V
RGBW
DMX512
L1000*W35*H56.5
10*60°/25*40°
Our advantage
24-hour service
Foreign trade cattle is based on the premise of big data analysis
Unlock the goods
Foreign trade cattle is based on the premise of big data analysis
24-hour service
Foreign trade cattle is based on the premise of big data analysis
Convenient search
Foreign trade cattle is based on the premise of big data analysis
About led wall washer light:
I. Aerodynamic Sculpting, Structural Waterproof Excellence: The Pinnacle of Aesthetics and Functionality
Fluid Aesthetics, Rhythm of Light and Shadow: Discarding the bulky edges of traditional fixtures, designers drew inspiration from nature’s flowing lines, utilizing principles of fluid dynamics to meticulously sculpt the luminaire body. This not only grants the fixture an exquisitely elegant, art-like appearance but also optimizes airflow pathways, effectively reducing wind resistance and water retention on the surface. The result is a perfect symbiosis of aesthetic form and waterproof functionality.

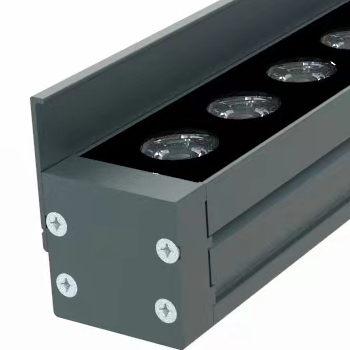

Structural Waterproofing, IP66 Robust Assurance: Unlike traditional waterproofing methods reliant on gaskets, this product innovatively employs a pure physical structural waterproof design devoid of silicone seals. Components interlock via precision-engineered snap-fits, multi-layered labyrinthine waterproof channels, and specialized bonding techniques, forming an impervious barrier. Rigorously certified to IP66 protection standards (withstanding high-pressure water jets and complete dust ingress), it ensures internal core components remain dry and stable even in extreme outdoor environments—torrential storms, sand-laden winds—eliminating water seepage risks and doubling product lifespan.
II. Military-Grade Materials, Defying Time and Corrosion: Engineered for Harsh Outdoor Environments
Aircraft-Grade Aluminum, Lightweight Yet Robust: The main body is precision-extruded from high-purity, premium aviation-grade aluminum alloy. This material offers an exceptional strength-to-weight ratio, guaranteeing structural integrity and resistance to impact deformation while minimizing weight for effortless installation.
SUS304 Stainless Steel, The Unyielding Anchor: All fasteners utilize SUS304 stainless steel screws. Renowned globally as "18/8 stainless steel" for its superior corrosion resistance, it effectively thwarts rust and maintains unwavering tightness even in coastal salt-spray zones, industrial pollution hotspots, or acid rain-prone regions.
Outdoor-Grade Protective Coating, Enduring Beauty: After rigorous pre-treatment (sandblasting, chromate conversion), the housing receives a high-quality, outdoor-specific electrostatic powder coating. This layer boasts outstanding adhesion, abrasion resistance, UV stability, and chemical corrosion resistance. Whether facing freezing winters, scorching summers, humid salt air, or acidic rainfall, it safeguards the aluminum substrate, preserving vibrant color and finish for decades. This triad of materials constructs an impenetrable "armor" against outdoor adversity.
III. Exceptional Chromatics, Superior Efficiency: Professional-Grade Lighting Delivery
Top-Tier Light Source, Foundation of Quality: At its core lie high-quality LED chips from globally leading brands CREE or OSRAM. These sources are celebrated for ultra-high luminous efficacy, precise color consistency (minimal SDCM deviation), excellent color rendering (Ra > 80, true color reproduction), and extraordinary longevity (L70 > 50,000 hours), delivering stable, pure-color illumination for any project.
Precision Optics, Optimized Output: Equipped with high-transmittance (>92%) imported PC or PMMA optical lenses/reflectors, their meticulously engineered design maximizes light capture and directional delivery, significantly boosting luminaire efficacy. Achieve brighter, more uniform wall washing effects at lower power consumption, embodying energy efficiency.
Glare Control, Light Environment Harmony: Features an optional anti-glare baffle or louver system. This design effectively controls beam angles and drastically reduces direct glare, ensuring light softly and comfortably grazes target surfaces. It prevents visual disturbance to pedestrians and surroundings, enhancing comfort and creating high-quality luminous environments.
IV. Dynamic Control, Intelligent Compatibility: Empowering Diverse Applications
Versatile Chromatics, Adaptive Modes: Available in single color temperature (3000K warm white – 6500K cool white), RGB trichromatic mixing, and RGBW (Red-Green-Blue-White quad) full-color variants. Effortlessly create cozy ambiances, dynamic landscape effects, or achieve accurate color rendering.
Professional Protocol, Precision Management: Fully supports the industry-standard DMX512 control protocol, enabling seamless integration into large-scale intelligent lighting networks. Realize individual fixture control, group synchronization, and complex scene programming (fades, chases, gradients), unlocking infinite creative potential for media facades, stage lighting, theme parks, and beyond.
Stable Heart, Electromagnetic Purity: Powered by renowned-brand, high-efficiency constant-current drivers. Rigorously designed and tested, these drivers demonstrate excellent Electromagnetic Compatibility (EMC), complying with international standards (CE, FCC). They ensure stable operation without emitting electromagnetic interference (EMI) that could disrupt nearby sensitive electronics (surveillance, communication systems), guaranteeing clean, reliable performance.
The IP66 Structural Waterproof Wall Wash Luminaire represents the pinnacle of engineering in architectural lighting. It redefines the reliability and artistic expression of outdoor linear illumination through groundbreaking structural waterproofing, military-grade protective materials, globally顶尖 (top-tier) light source and optical configurations, and flexible, powerful intelligent control capabilities. Choosing it signifies embracing confidence against nature's challenges and a commitment to illuminating eternal spatial beauty. Whether deployed in bustling metropolises, coastal developments, or industrial zones, it stands resilient and elegant, forging an enduring legacy of light and shadow.
Deep Dive: Technical Excellence in Action
Structural Waterproofing Mechanics: The multi-stage labyrinth seals create capillary breaks exceeding 15mm, physically blocking water ingress paths. Pressure-equalization channels prevent condensation buildup during rapid temperature shifts. Finite Element Analysis (FEA) validates structural integrity under 100km/h wind loads and thermal cycling (-40°C to +85°C).
Material Science: The 6063-T5 aluminum alloy undergoes solution heat treatment and artificial aging, achieving tensile strength > 160 MPa and yield strength > 110 MPa. SUS304 fasteners meet ASTM A276/A276M specifications. Powder coating thickness (80-120μm) and adhesion (ASTM D3359 Cross-Hatch: Class 5B) are rigorously controlled. Accelerated salt spray testing (ASTM B117) exceeds 2000 hours without base metal corrosion.
Opto-Electronic Performance: Utilizing CREE XP-E2 or OSRAM Duris S5 LEDs, binned within 3-step MacAdam ellipses for color uniformity. Drivers boast >90% efficiency, <10% THD, and PF >0.95. Optical systems achieve >85% overall luminaire efficacy (lm/W). Optional honeycomb louvers (10°, 25°, 45°) reduce UGR (Unified Glare Rating) to below 16.
Control & Integration: DMX512-A (E1.11) compliance ensures interoperability. Supports RDM (Remote Device Management) for configuration and monitoring. Optional wireless DMX (2.4GHz/5.8GHz) and IoT protocols (DALI-2, KNX) enable future-proof smart city integration. EMC filtering exceeds CISPR 15/EN 55015 Class B limits by 6dB.
This luminaire transcends mere illumination; it is a meticulously engineered system designed for decades of flawless performance in the planet's most demanding environments. It embodies the convergence of physics, materials science, photonics, and digital control—a testament to human ingenuity dedicated to shaping light, defining space, and enduring time. Invest not just in a fixture, but in a legacy of luminous resilience.
