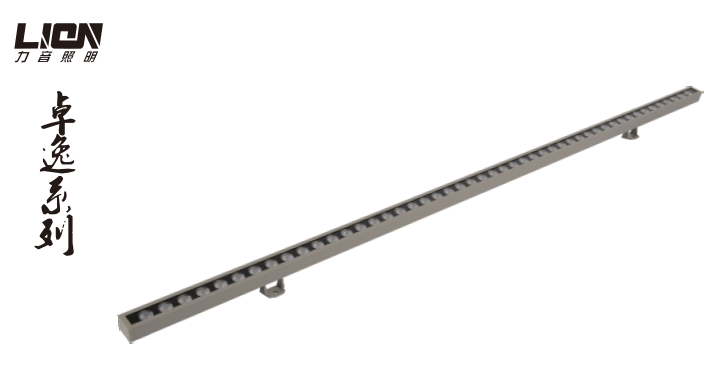

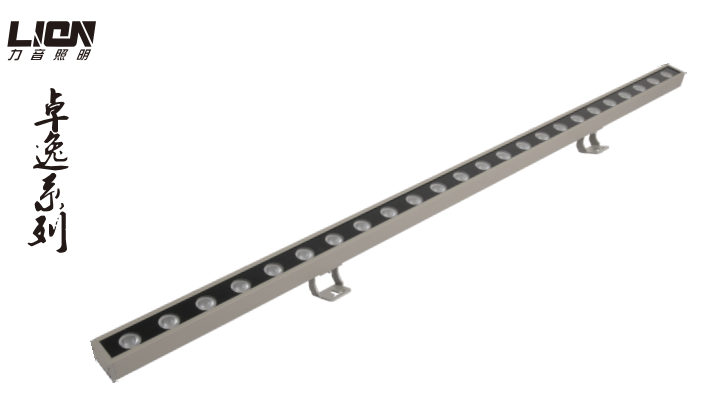

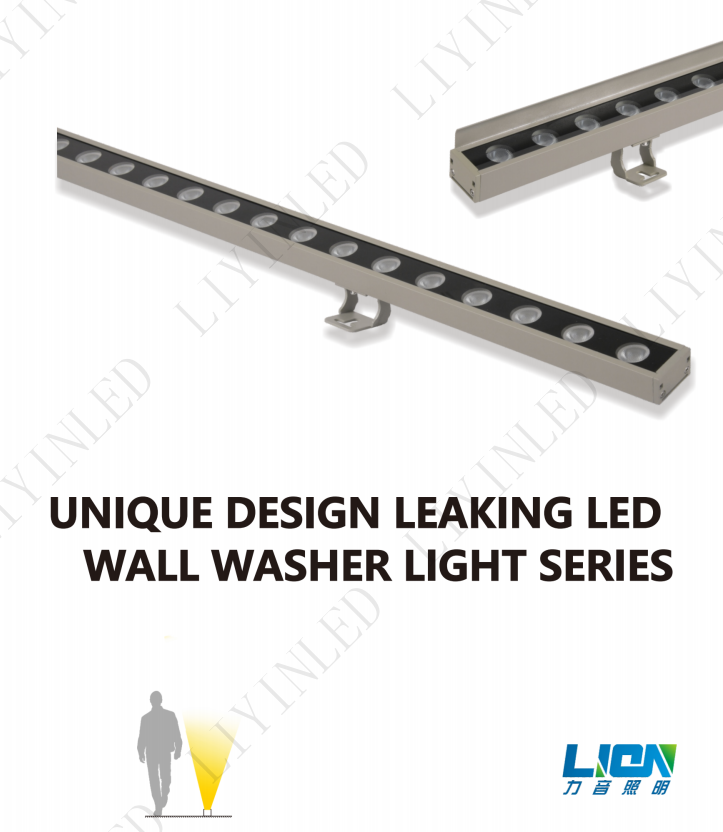

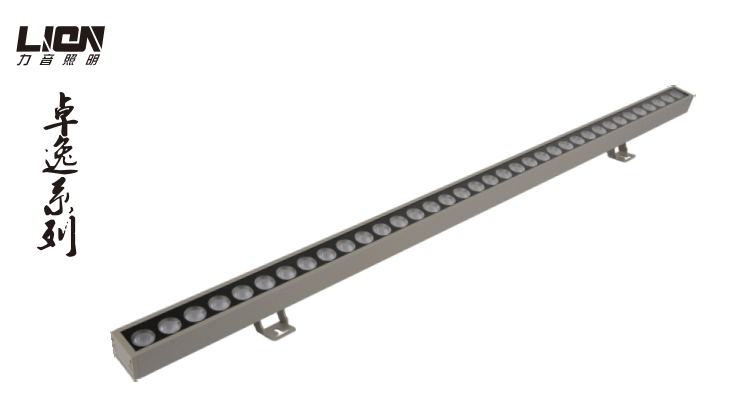

Unique design leaking led wall washer light LY-XQ-1010

Unique Design Leaking

Led Wall Washer Light LY-XQ-1010

The real charm of wall washer light lies in its sublimation of lighting into visual art. Through multi-stage dimming and dynamic color programming, it can achieve from monochrome gradient to colorful water fantasy effect. For example, in the landscape lighting of a park in Yangjiang, wall washer lights through the DMX512 control system, so that the trees in the night show “spring green, summer blue, autumn yellow, winter white” seasonal changes. This dynamic light and shadow not only attracts visitors to stop, but also becomes the carrier of the city's cultural narrative.

In the field of architectural design, the wall washer light's contour outline and material enhancement function can be called the finishing touch. High-pressure cast aluminum lamp body with optical grade PMMA lens, not only can accurately control the beam angle (6 ° - 40 °), but also to avoid light pollution. The glass curtain wall of a skyscraper in Lujiazui, Shanghai, is projected alternately with warm and cold light through the wall washer lamp, which makes the cold glass façade show a silk-like flowing texture, and becomes the iconic “sculpture of light” in the night sky.

Product Features：

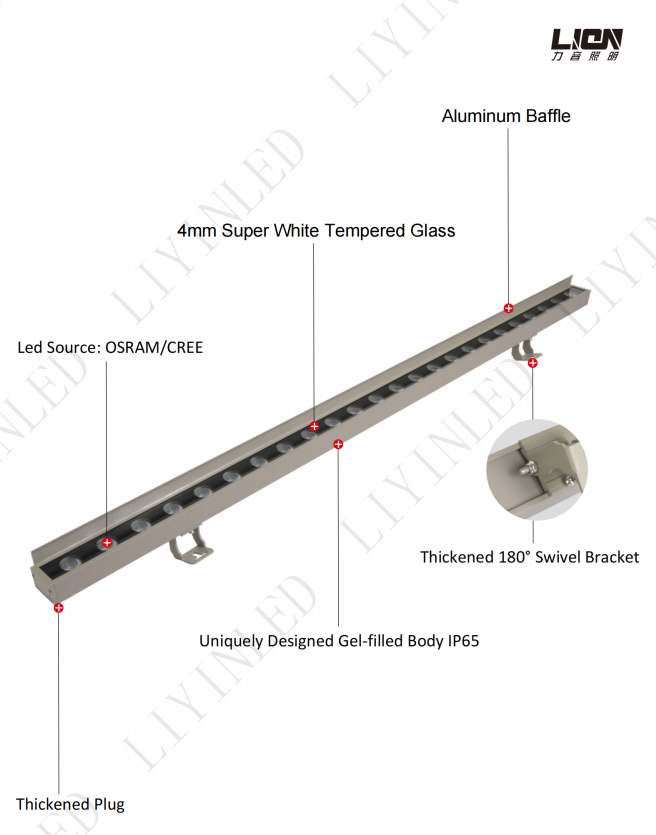

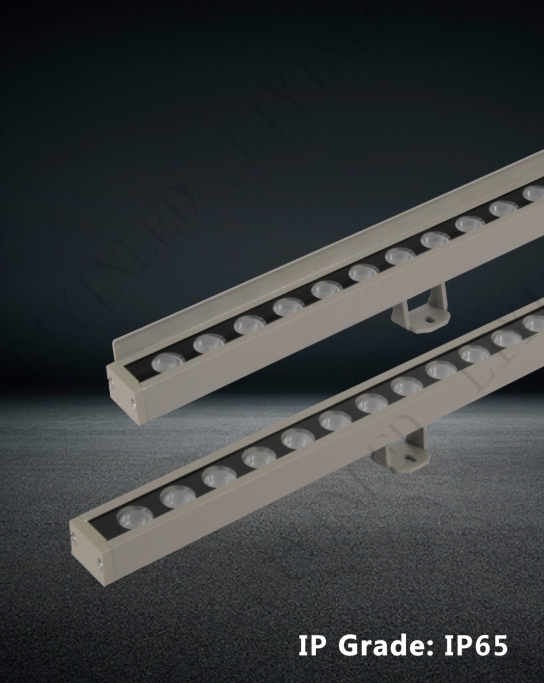

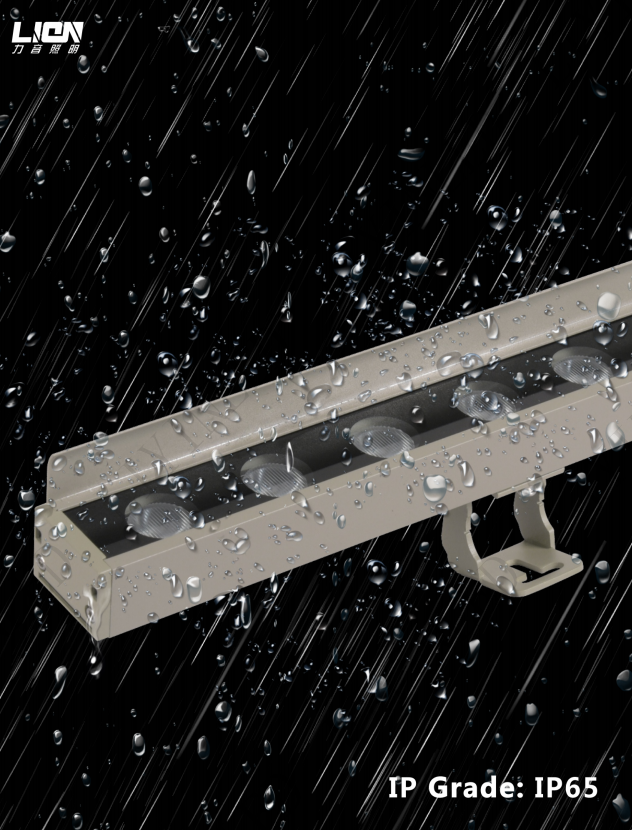

• Adopting hydrodynamic design,perfect combination of aestheticform and product function,delicate and beautiful lamp type.Uniquedesign of the full irrigation models wall washer light,protection grade IP65.

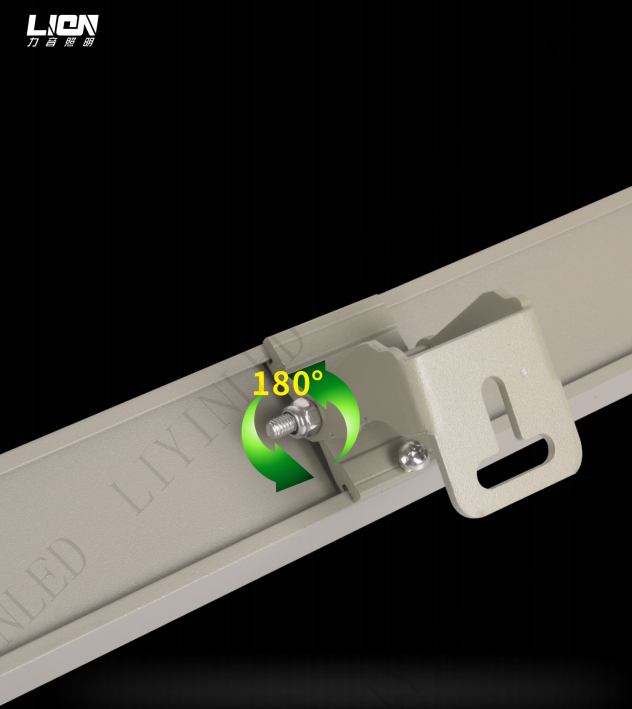

• Profile aviation aluminum lamp body,SUS304 stainless steelscrews,the surface of the outdoor grade electrostatic spraying,corrosion resistance,suitable for harsh outdoor environments.

• Configuration CREE/OSRAM imported light source has excellentlight color performance.High transmittance optics,effectivelyimprove the light efficiency of the lamps and lanterns,optional anti-glare visor.

• Monochrome/RGB three-in-one/RGBW four-in-one full-colorcontrol,support DMX512 control system brand power supply,withgood electromagnetic compatibility,will not cause electromagneticinterference to the surrounding environment.

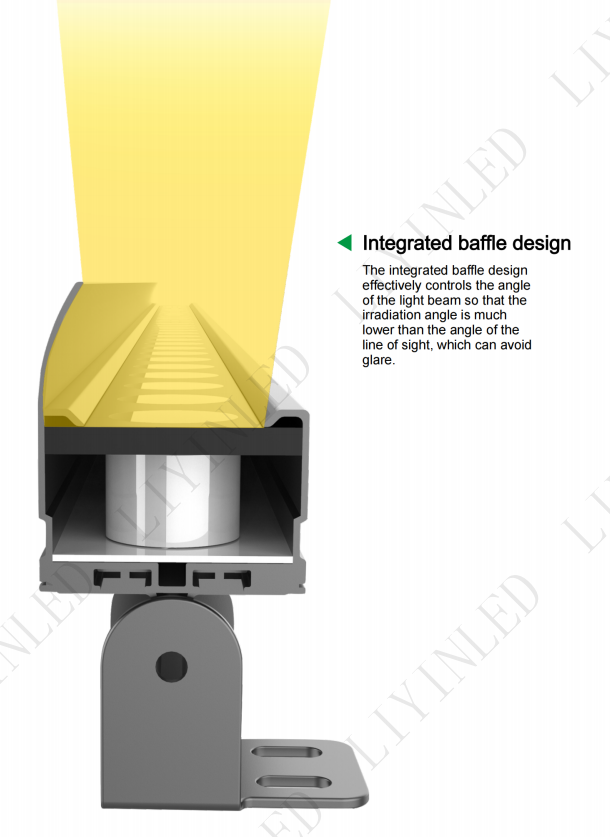

Adoption of integrated baffle design

• Customized Engineering.

• Anti-glare treatment.

• The housing can be customized color.

• Single color/RGB/RGBW DMX512.

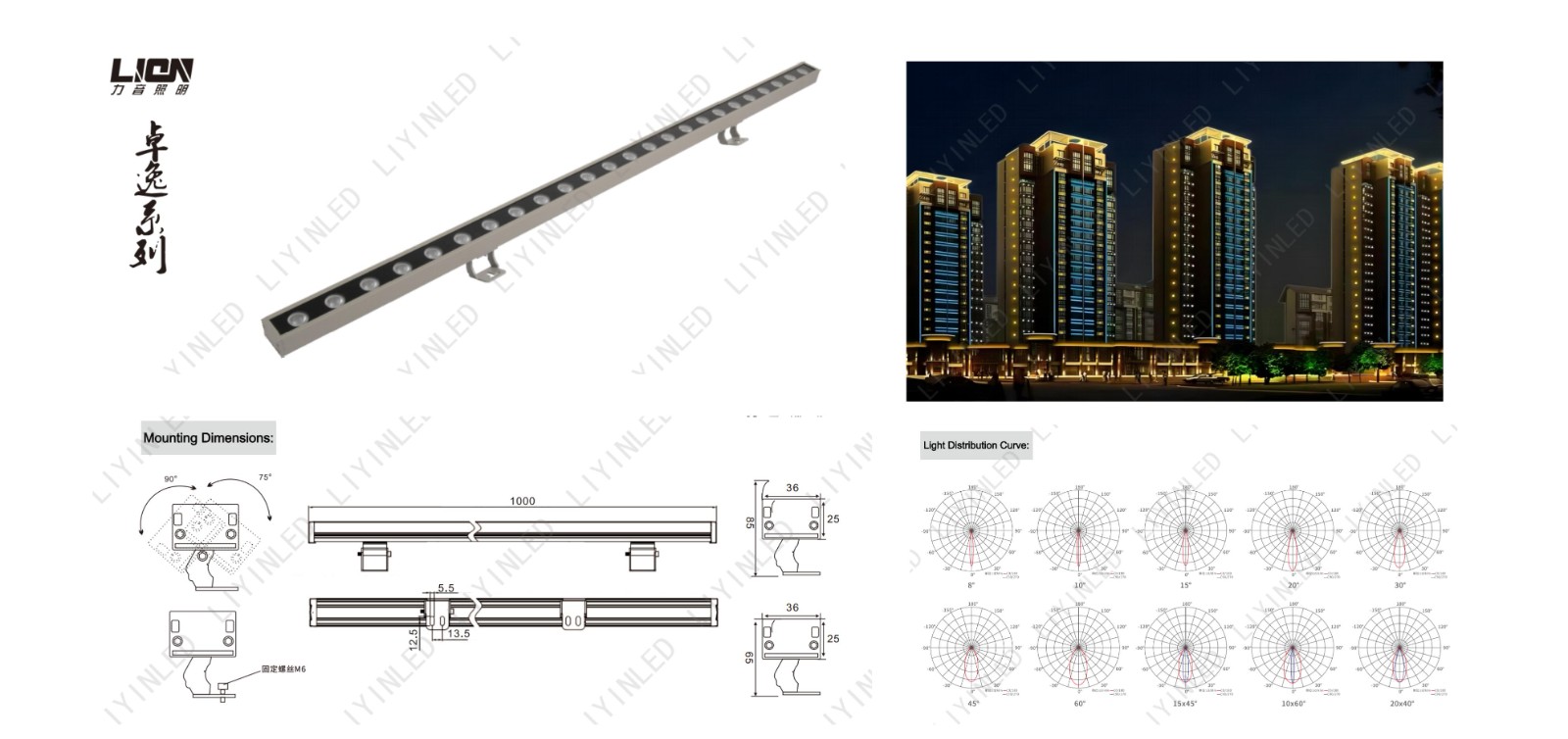

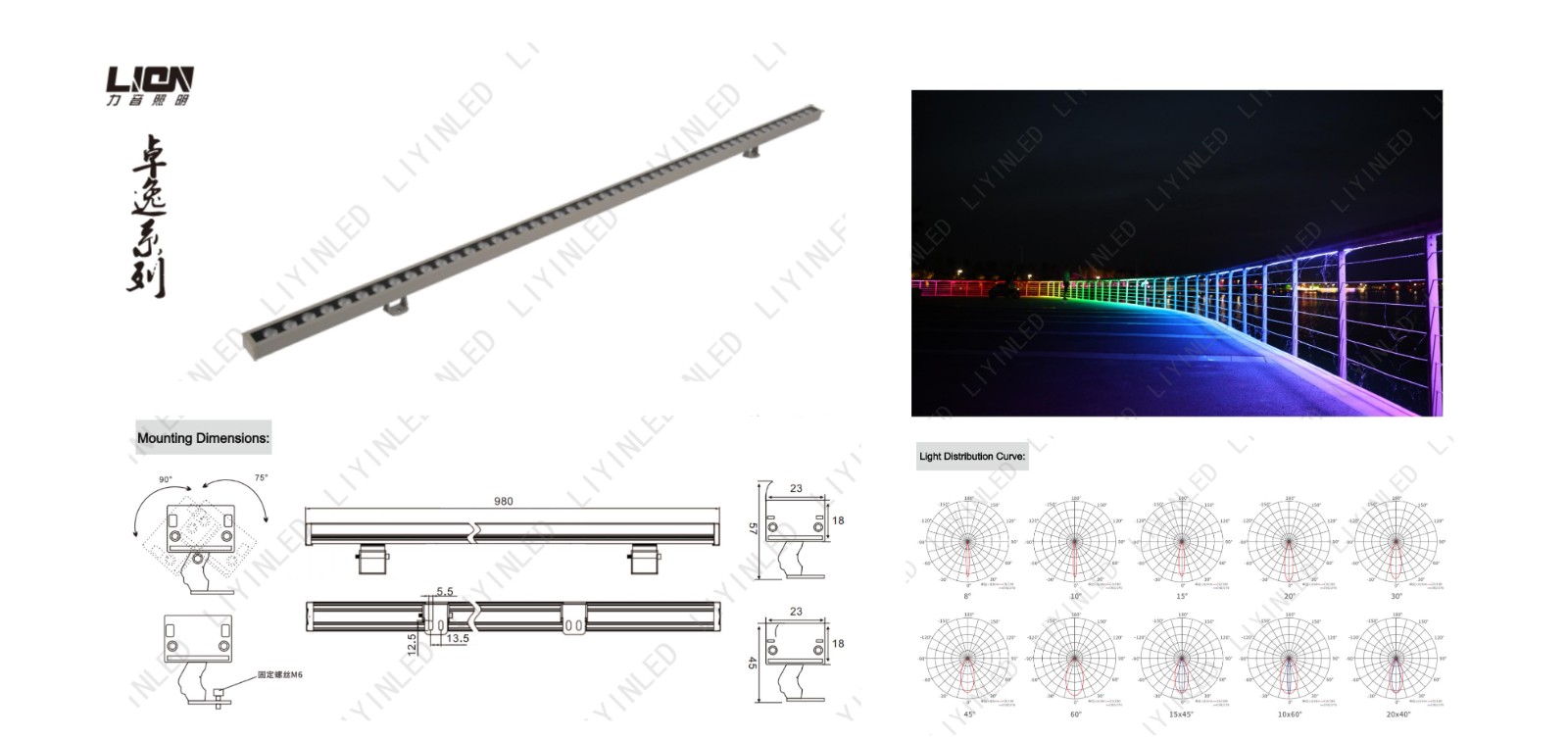

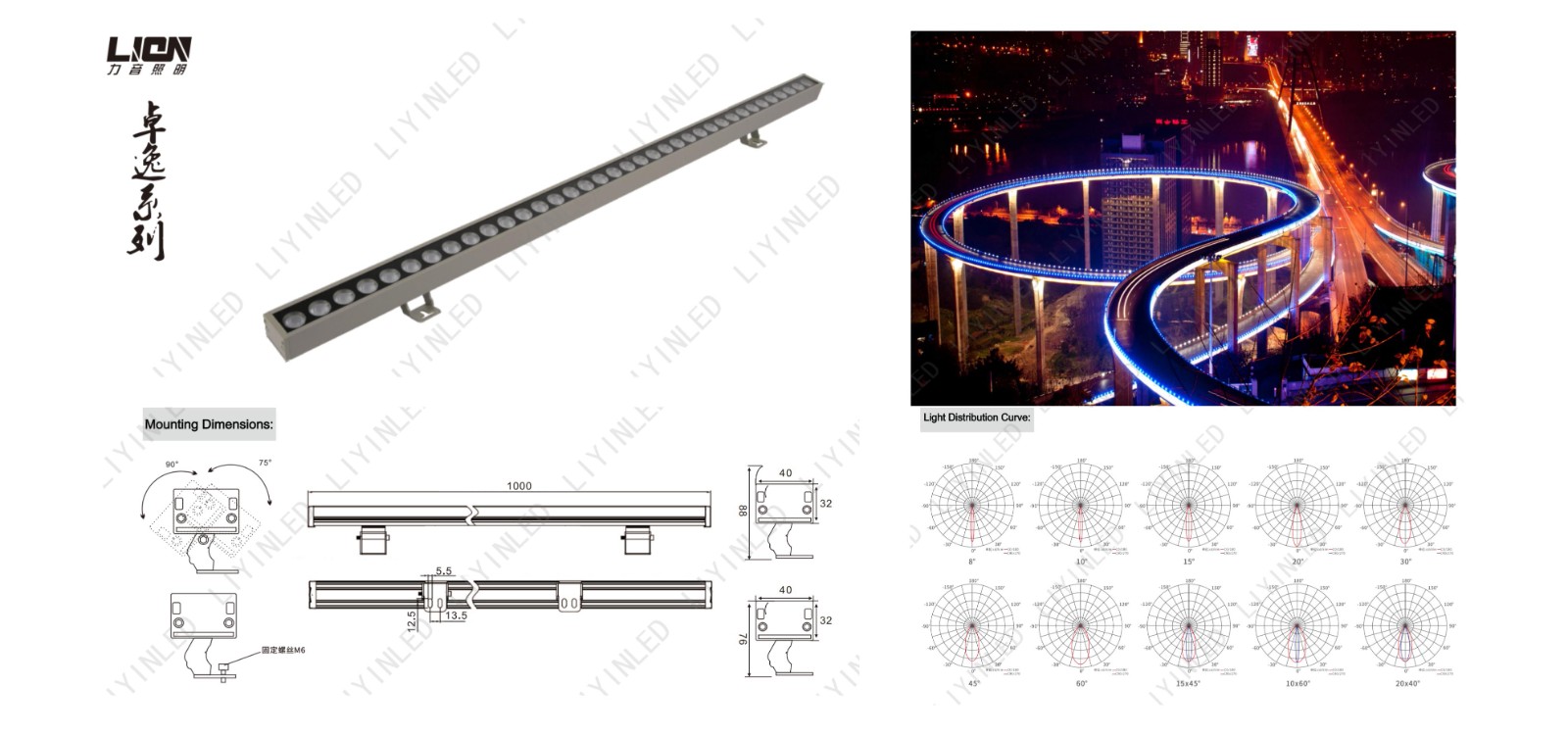

Model	Power	Voltage	Led chips Qtys	Light Color	Beam angle	Control	Product size
LY-XQ-1010A	12W	DC24V	48PCS	1700-6500K/R/G/B/Y	30°/45°/60°/15*45°/20*40°	ON/OFF	L1000/500/300*W23*H45(57)mm
LY-XQ-1004A	12W			RGB/RGBW		DMX512

Model	Power	Voltage	Led chips Qtys	Light Color	Beam Angle	Control	Product size
LY-XQ-1010B	18W	DC24V	18PCS	1700-6500K/R/G/B/Y	30°/45°/60°/15*45°/20*40°	ON/OFF	L1000/500/300*W36*H65(85)mm
	24W		24PCS
	36W		18PCS	RGB/RGBW		DMX512

Model	Power	Voltage	Led chips Qtys	Light Color	Beam Angle	Control	Product size
LY-XQ-1010C	36W	DC24V	36PCS	1700-6500K/R/G/B/Y	30°/45°/60°/15*45°/20*40°	ON/OFF	L1000/500/300*W40*H76(88)mm
LY-XQ-1010C	48W		24PCS	RGB/RGBW		DMX512

Common Application Scenarios:

• Building Exterior: outline the building, enhance the three-dimensional sense at night.

• Interior decoration: illuminate the background wall, display cabinets, artwork, etc.

• Landscape lighting: floodlighting of trees, sculptures, water features.

• Commercial space: atmosphere creation of shopping malls, hotels, windows.
