APL-TD-4415

Product origin China

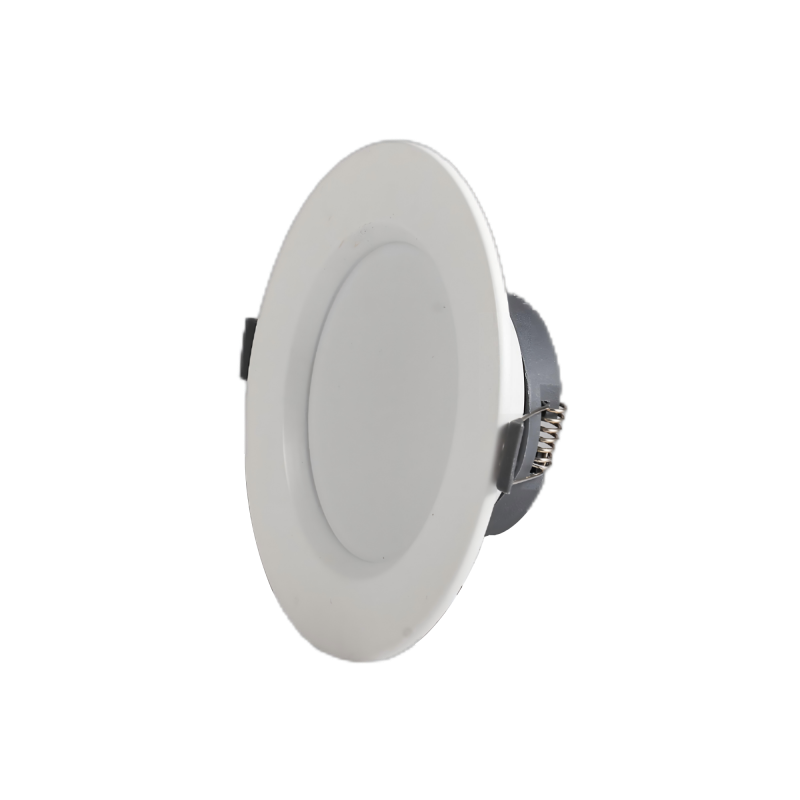

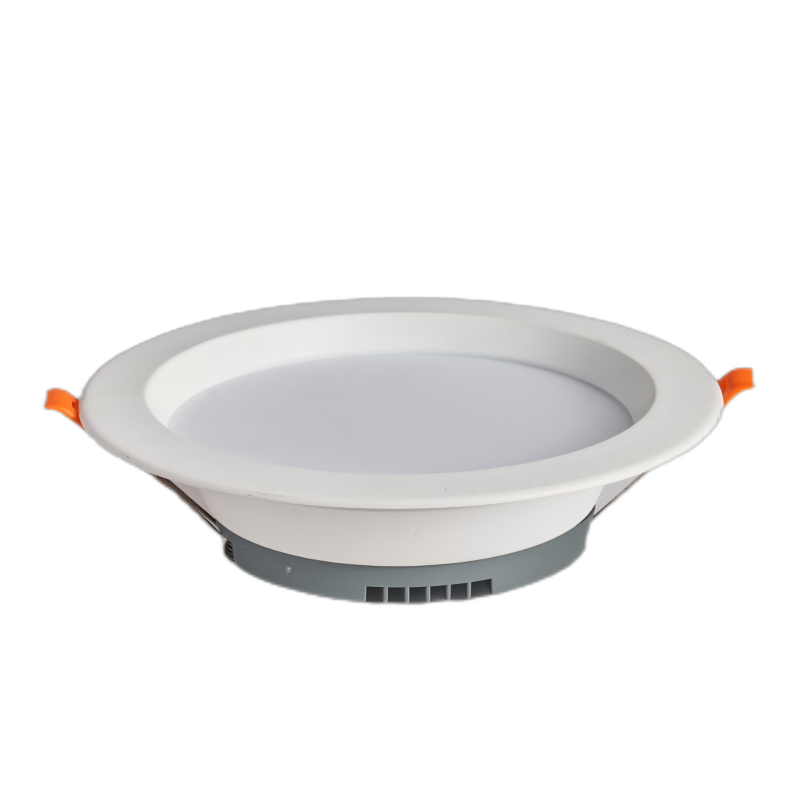

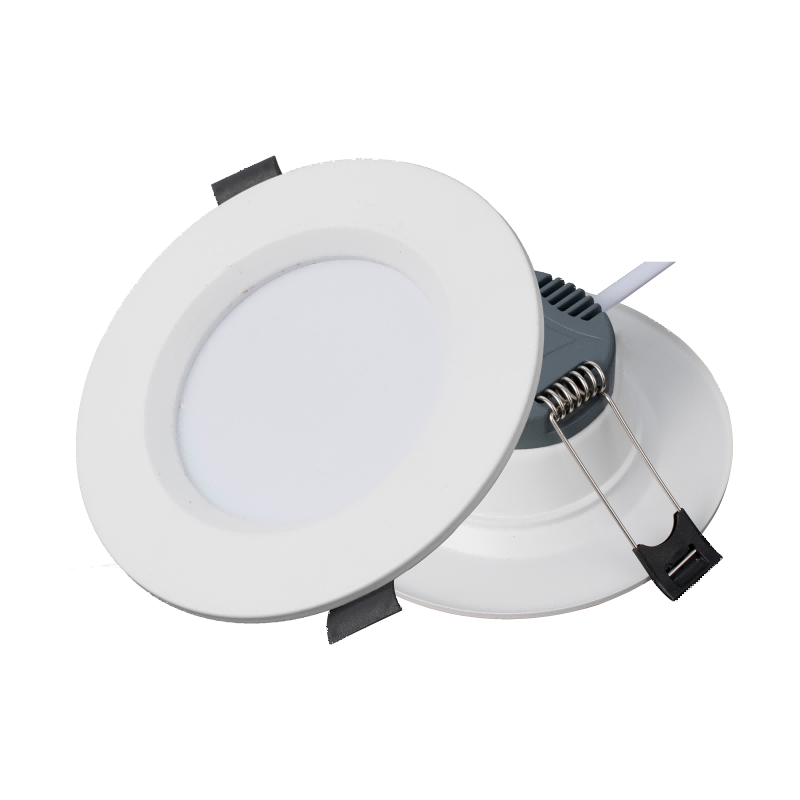

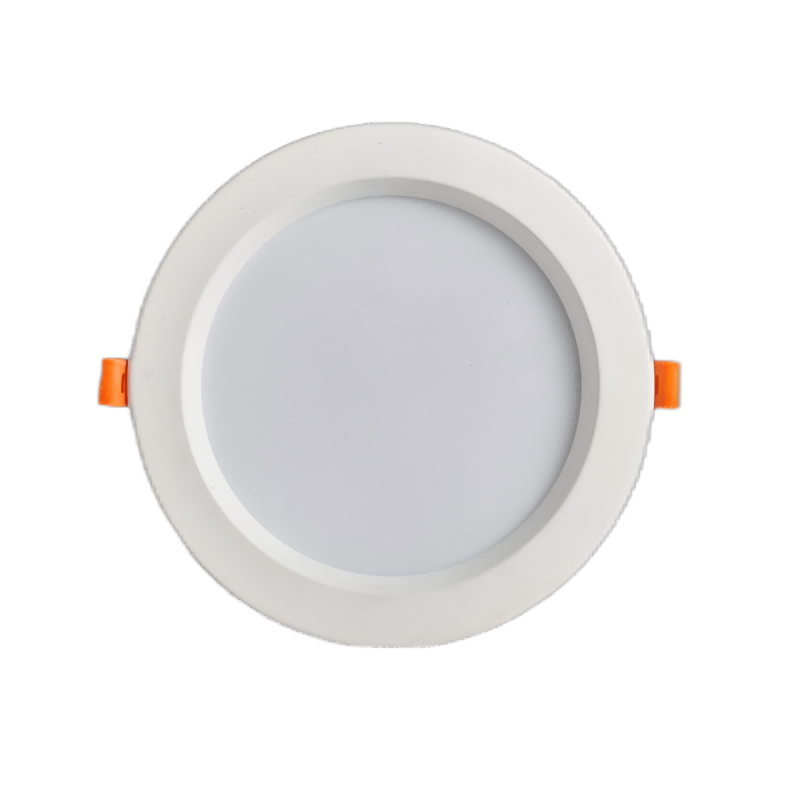

5W-22W options in 40-45mm slim profiles. "Small cutout, large faceplate" design fits Φ75-200mm openings. SMD2835 source (70-80lm/W efficacy), AC160-265V input. PP housing with steel heatsink. 70-80 CRI, non-dimmable (PF≥0.5). EU/ASEAN certified. Ideal for warehouse/industrial retrofits.

I. Revolutionary Form Factor Architecture

"Small Cutout, Large Faceplate" Design Philosophy

Core Innovation: 80-130mm faceplates conceal 75-120mm openings, covering ceiling irregularities (±3mm tolerance)
Engineering Benefit: Maximizes light emission area while minimizing structural intrusion (H40 slim profile)
Retrofit Advantage: Single downlight fits multi-generational cutouts in EU/Asian buildings

II. Power Scalability Platform

Wattage	Faceplate Ø	Cutout Ø	Lumen Output	Application Profile
5W	100mm	Φ75mm	350-400lm	Niche accent lighting
7W	110mm	Φ90mm	500-560lm	Hotel corridor zones
12W	120mm	Φ90mm	840-900lm	Retail task lighting
18W	130mm	Φ120mm	1,260-1,350lm	Industrial workbenches
22W	150mm	Φ150mm	1,540-1,650lm	Warehouse aisle lighting
(Custom)	180-220mm	Φ200mm	2,200lm+	High-bay pre-rollout

Note: All variants maintain constant 40-45mm depth - industry's thinnest multi-watt solution

III. DOB Technology Integration

Driver-on-Board AC Direct System

Circuit Topology: Passive PFC buck converter (No IC - discrete components only)
Voltage Optimization: Narrow-range AC160-265V targeting stable-grid regions (SE Asia/Latin America)
Thermal Management:

22W model: Cold-rolled steel heatsink (1.2mm) with 48 fins
≤18W: Die-cast zinc alloy base

IV. Material Science Breakdown

Component	Material	Certification	Functional Purpose
Housing Trim	Polypropylene (PP)	UL94 HB flame retardant	Electrical isolation + 120°C stability
Heat Sink Assembly	CRC steel (0.8-1.2mm)	ISO 9227 salt spray 96hr	5.8W/mK thermal conductivity
Optical Chamber	Aluminumized reflector	EN ISO 11664 photometric	84% reflectivity (vs. 70% industry avg)
Light Source	SMD2835 (120Lm/W bin)	LM-80 Q90 reporting	Cost-optimized efficacy solution

V. Photometric & Electrical Profile

Standard Testing Conditions (Ta=25°C)

Parameter	Specification	Test Standard
Luminous Efficacy	70-80 lm/W	LM-79-08 Annex B
CRI (Ra)	70-80 (Typ. 75)	CIE 13.3-1995
Power Factor	≥0.5 (±0.02 full range)	EN 61000-3-2 Class C
THD	<25% @230V	IEC 62301
Inrush Current	20A (max, 10μs pulse)	EN 60947-1

Thermal Performance

Junction Temp: ≤105°C @18W (Ta=40°C) - validated via IR thermography
L70 Lifetime: 25,000hrs (TM-21 extrapolation for 70-80°C Tc)

VI. Regional Compliance Matrix

Market	Electrical	EMC	Material
EU/UK	EN 60598-1 + EN 61347-1	EN IEC 55015/61547	RoHS 2015/863
ASEAN	CNS 14115 (Taiwan)	CISPR 15 Ed.7.0	MS IEC 60065
Middle East	ESMA UAE.S 5019-1	GSO 1613	SASO 2870
Exclusions	Not UL/cUL certified	Non-dimmable	IP20 (dry indoor)

VII. Installation Engineering

Critical Clearance Protocol

Thermal Buffer: Maintain ≥20mm air gap between ceiling & housing (clause 12.5 EN 60598)
Wiring Specification: 0.75-1.5mm² solid/core cables only (terminal capacity: 2×2.5mm²)
Mounting Sequence:

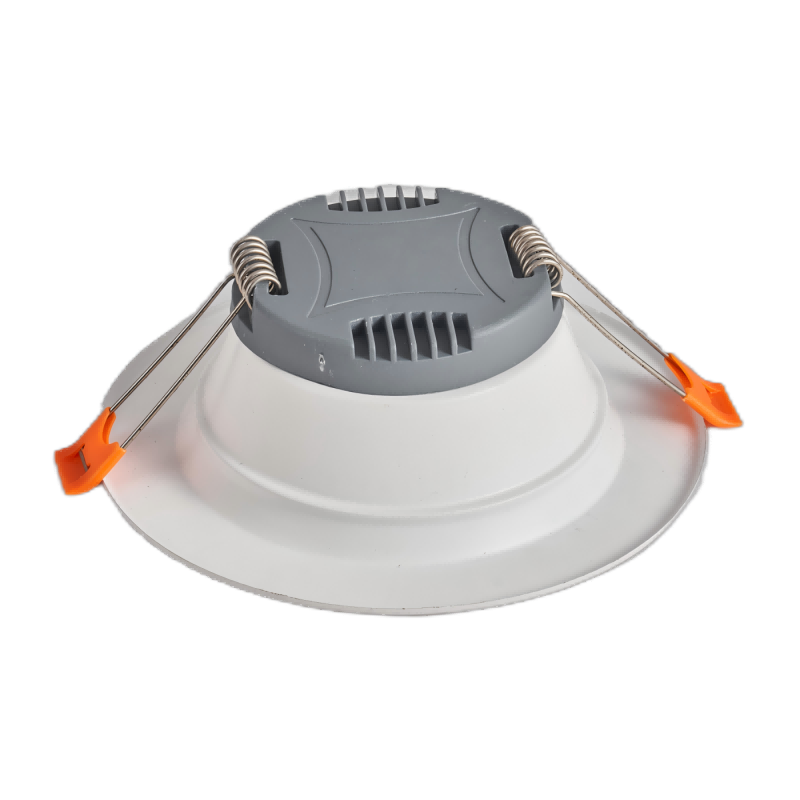

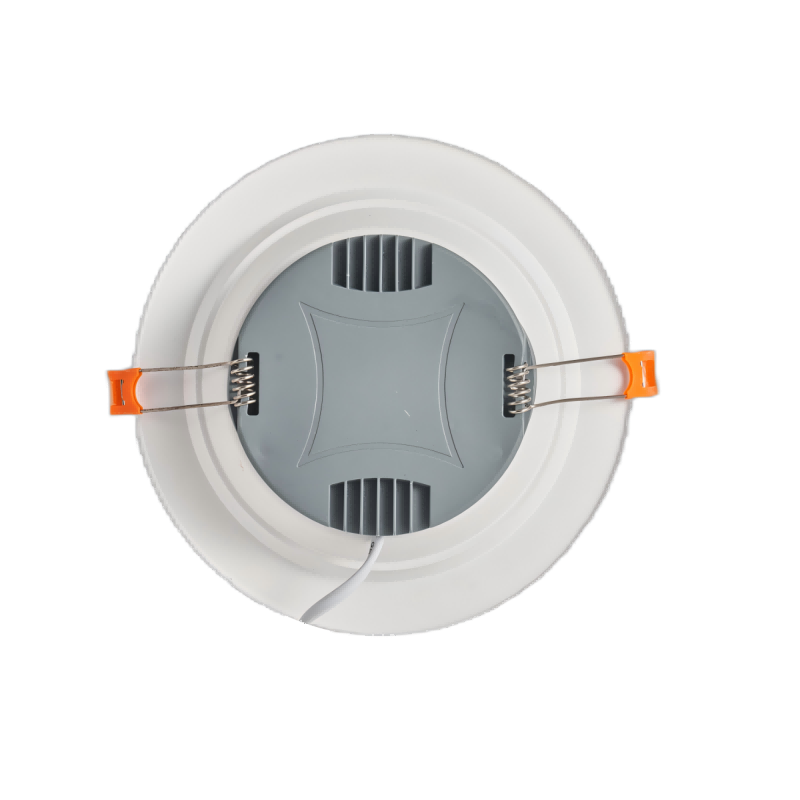

Insert springs vertically → rotate 90° until click
35kg max. pull-out force certification

VIII. Ordering & Logistics

Wattage	Carton Qty	GW/Carton	Pallet Stack	Production Lead
≤12W	24 pcs	5.4kg	8 layers	STD: 15 days
18-22W	12 pcs	6.1kg	5 layers	Custom: 30 days

Packaging Detail:

Anti-static foam slot packaging (ESD 20kV protection)
Master carton labeling: Voltage bins (V1:160-210V / V2:210-265V)

IX. Application-Specific Guidelines

Low CRI Warning: Not recommended for art galleries/medical facilities (use ≥90CRI variants)
High Bay Pre-wiring: Dedicated suspension kits required for >5m mounting height
Voltage Caution: Avoid installation in <150V grids (Japan/110V regions excluded)
