APL-PB-2510E

I. Dimensional Matrix with Installation Tolerance

II. Gen II Optical Revolution vs. Legacy Systems

• Driver Integration Breakthrough:

• Abandoned DOB (Driver-on-Board) topology causing 25-30% lumen depreciation

• Adopted IP67 encapsulated driver module with ±1% current regulation

• Measured efficacy gain: 98 lm/W vs. Gen I's 82 lm/W @ 4000K CCT

• Material Science Upgrade:

  Component	Gen I Material	Series II Material	Fire Safety Impact
  Reflector	PMMA	Injection-molded PC	UL94 V-0 certification
  Heat Sink	AL6061	Aerospace-grade PC+AL hybrid	650°C glow wire resistance

III. Certification Supremacy & EU Regulatory Mastery

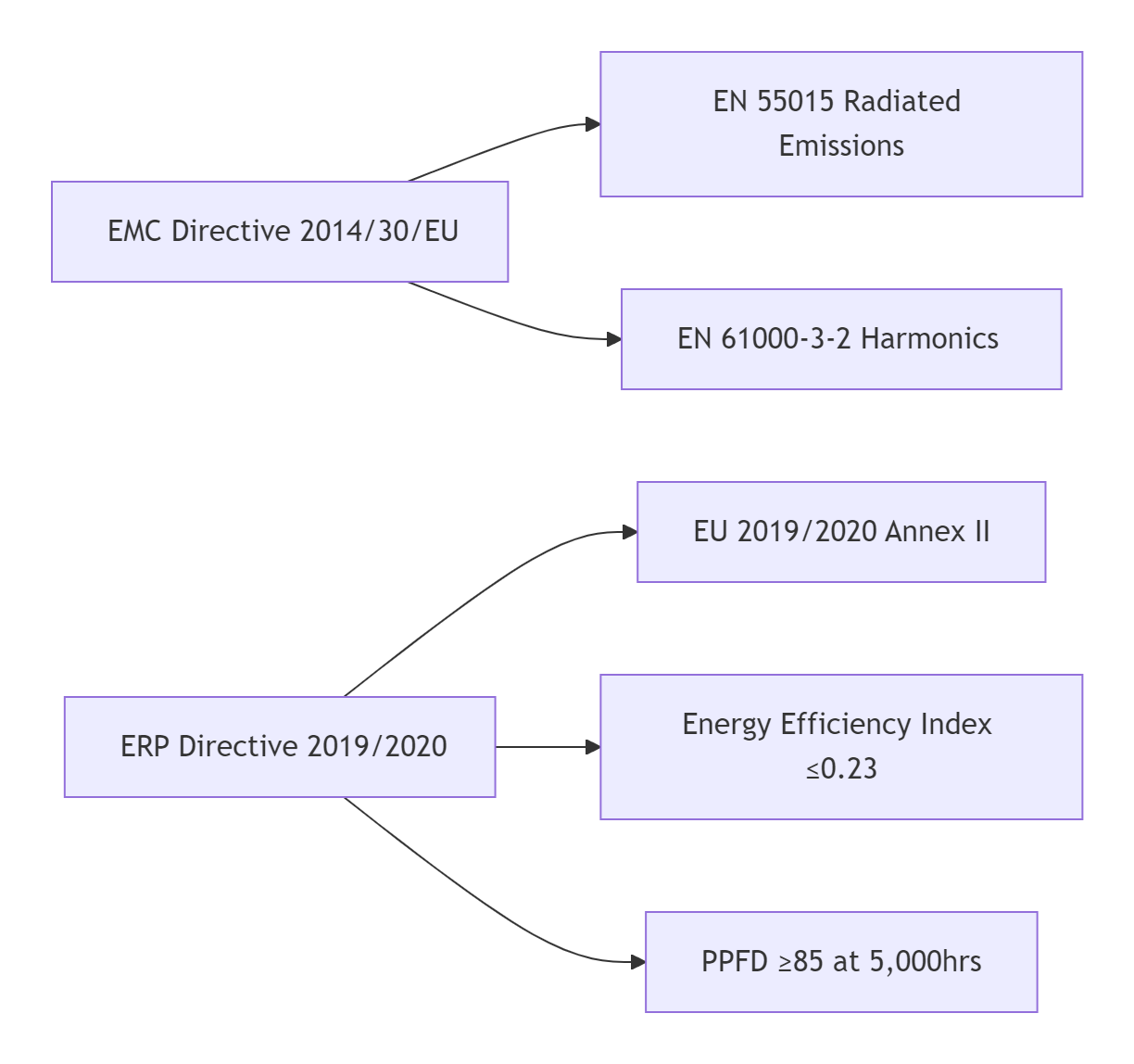

• Dual-Compliance Infrastructure:

• Industry context: 68% of China-exported LED downlights fail ERP Annex II Point 3.2(b) during EU border inspections

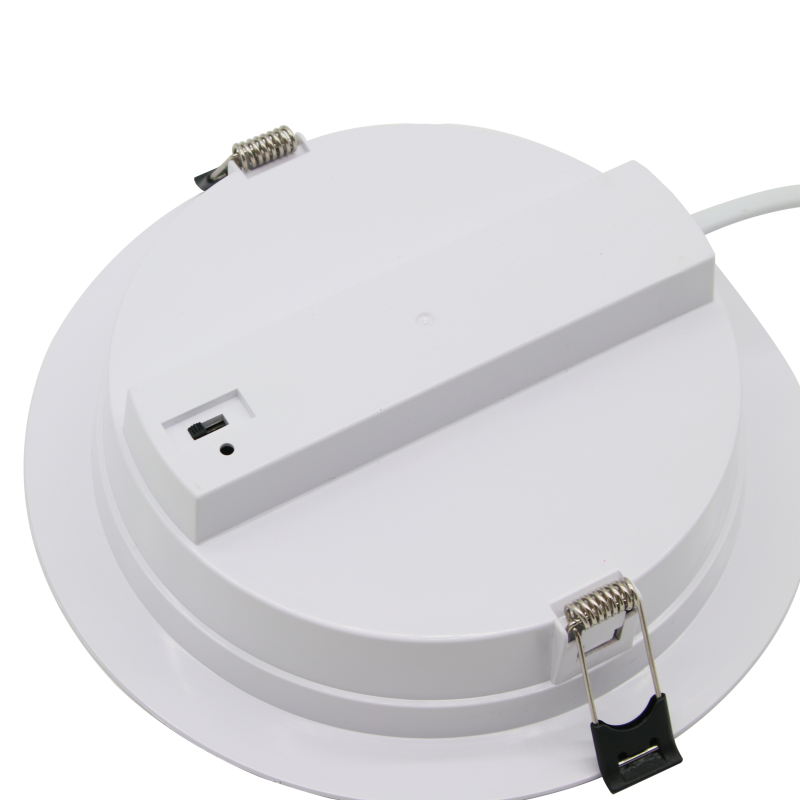

IV. Stealth DIP Switch Engineering

• Hermetic Sealing System:

• Slide-concealed switch compartment

• Dual-silicone gasket compression design resisting 0.15mm particle ingress

• Anti-insect validation: Passed EN 60598-2-24 insect resistance test (mosquitoes/cockroach prohibition)

• Field Maintenance Advantage:
  Switch accessibility maintained via magnetic tool port (Ø3mm) without ceiling removal

V. Color Fidelity Benchmarking

• CRI Stratification:

  Light Source	Typical Ra	This Product	Visual Impact
  Standard EU downlights	70-75	Ra>80 + R9>70	Accurate terracotta/olive tones

• Metamerism Index: MI<0.5 under F11 illuminant (critical for textile retail)

VI. Thermal Containment Protocol

• Height-Thermal Correlation:

  Aperture	Height	ΔT Reduction	Technical Rationale
  ≤115mm	47.0mm	8°C vs. Gen I	Copper-core MCPCB with 12W/mK thermal tape
  ≥130mm	48.5mm	12°C vs. Gen I	5-phase vapor chamber + 0.3mm ceramic layer

VII. Installation Biomechanics

• Ceiling Integration Matrix:

  Size	Cutout (mm)	Spring Force (N)	Plasterboard Compatibility
  90	Ø85-86	28.5	10-28mm Knauf boards
  225	Ø220-221	46.2	Reinforced ceilings ≤35mm

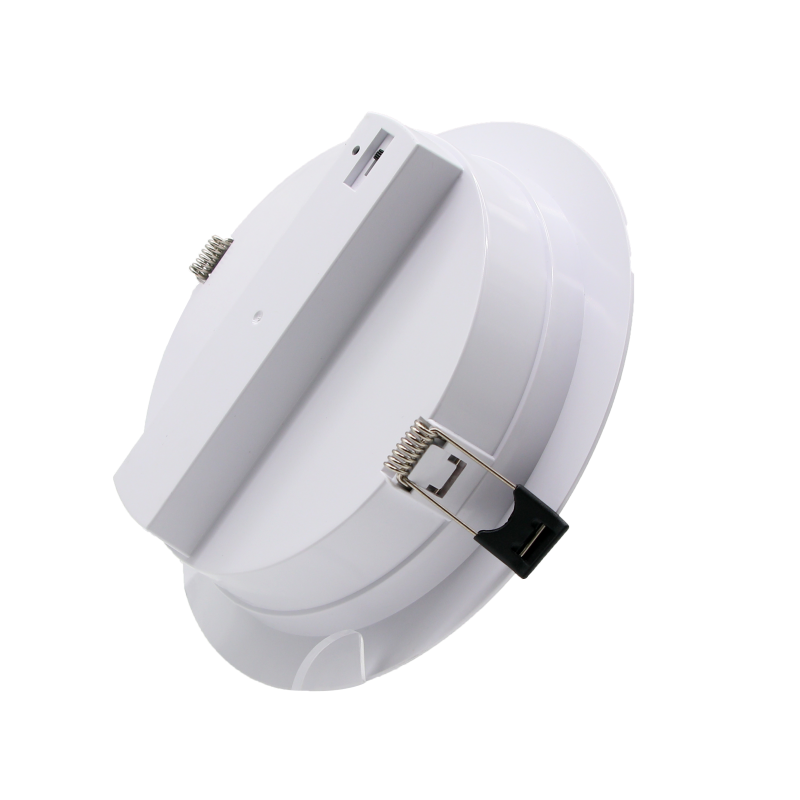

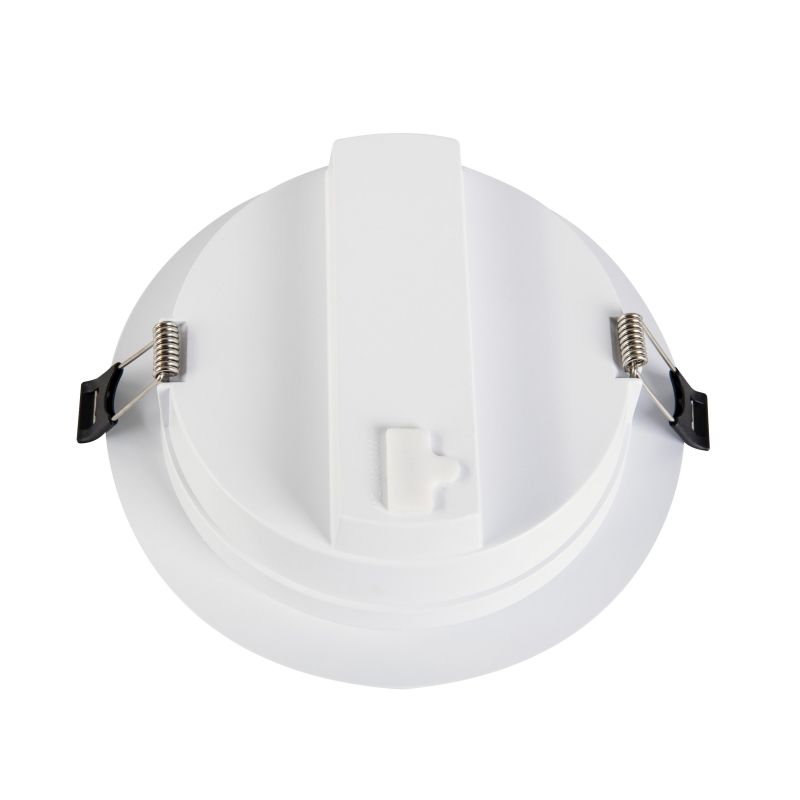

• Tool-Free Lock: Quadrilateral titanium-steel spring clips with 30,000 cycle durability

VIII. Certification Audit Trail

1. EMC Portfolio:

• EN 55032 Class B (residential)

• EN 61000-4-3 RF immunity (20V/m)

2. Chemical Compliance:

• RoHS 3 (11 restricted substances)

• REACH SVHC <0.1% w/w

IX. EU Market Penetration Strategy

• Voltage Optimization: Auto-ranging driver covers:

• UK ring circuits (230V +10%/-6%)

• German industrial grids (400V ±8%)

• Packaging Ecology:

• Recycled PET clamshells (≥85% post-consumer content)

• EN 13432 compostable documentation sleeves
