APL-PB-2510F-COB-Recessed

I. Core Optical Engineering & Visual Protection System

• Deep Anti-Glare Technology:

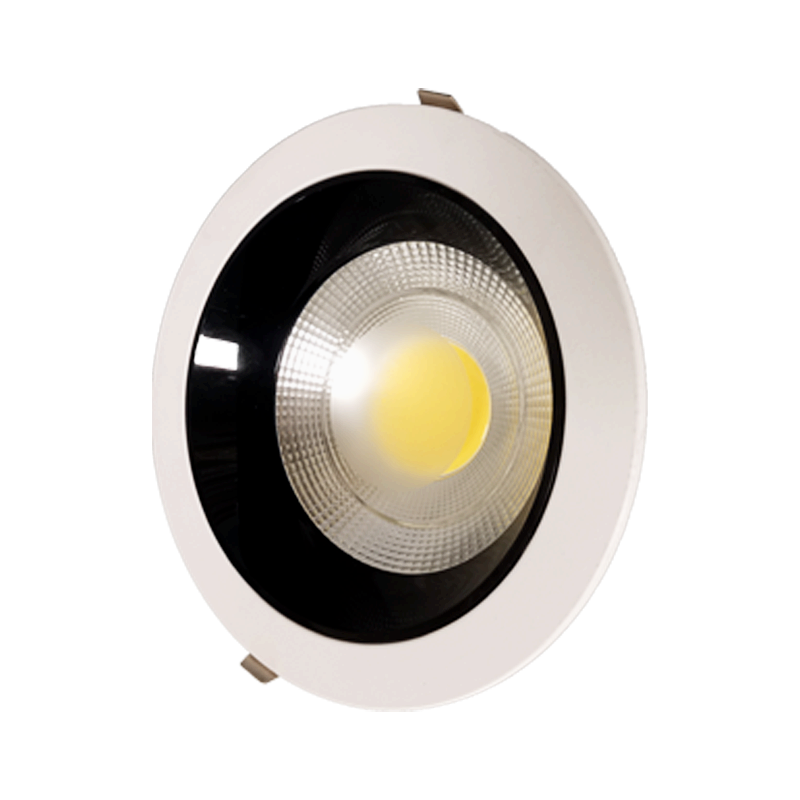

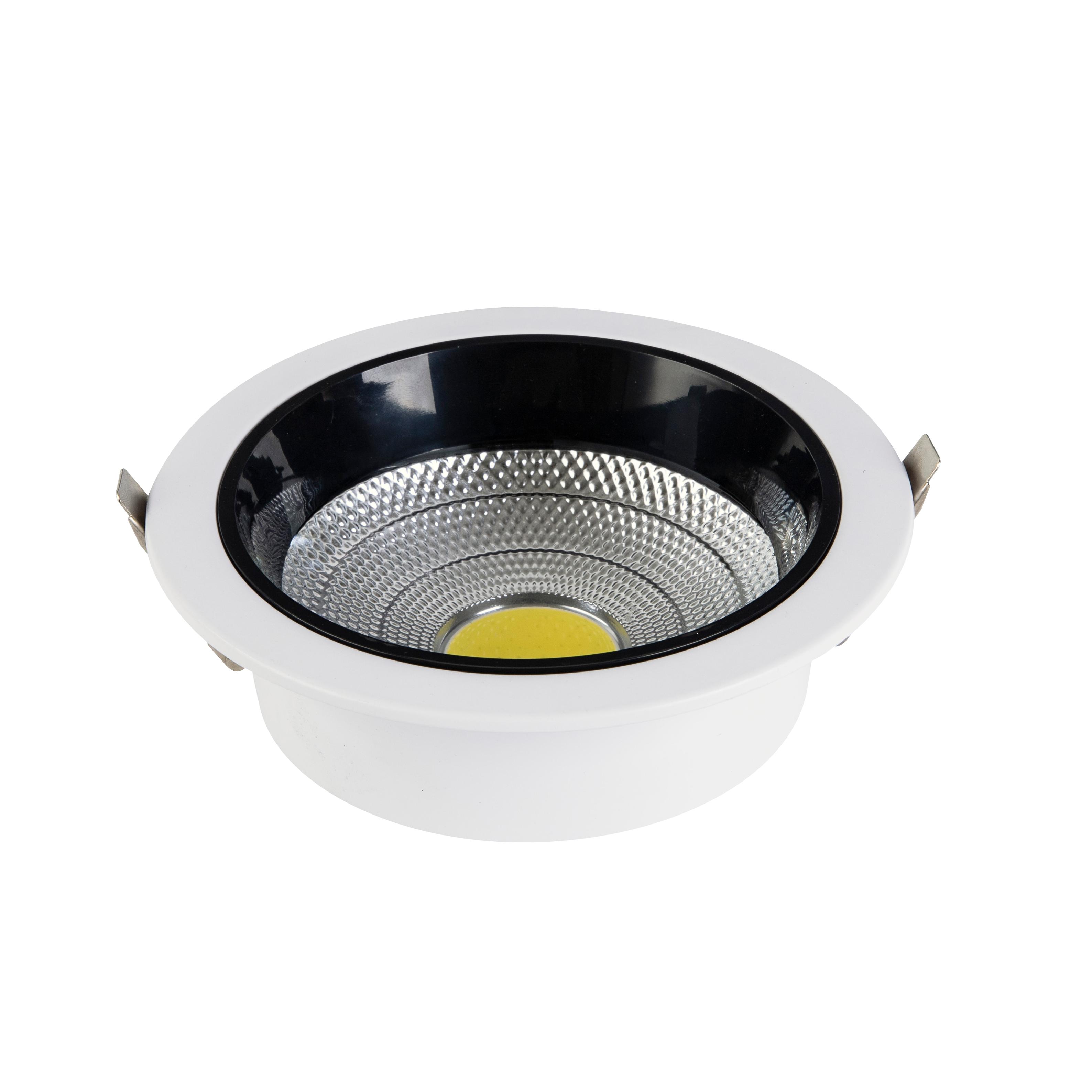

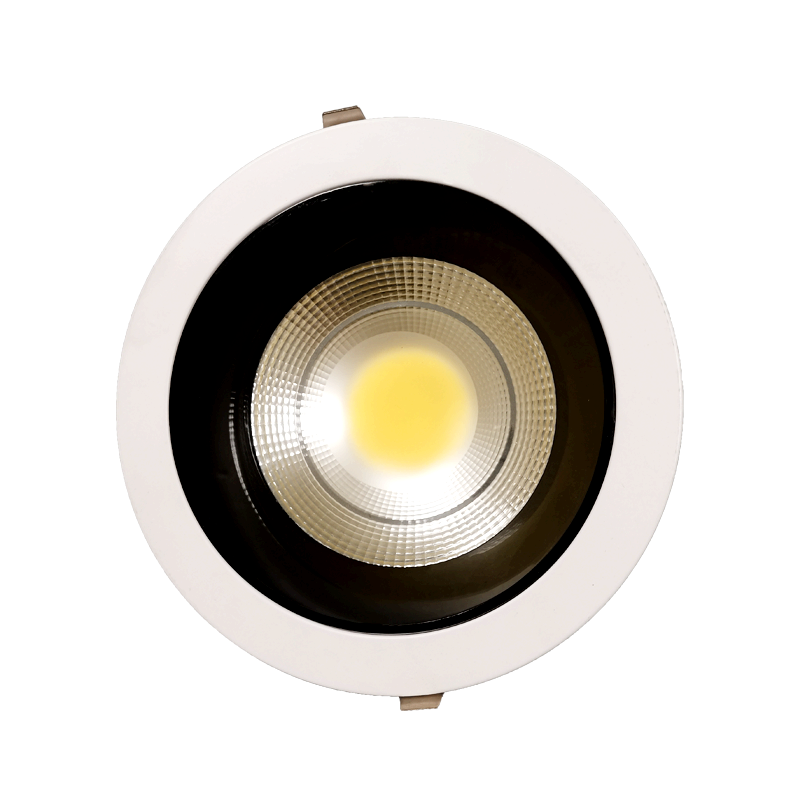

• COB (Chip-on-Board) light source recessed 8mm below aperture rim, eliminating direct eye exposure to LED chips

• Measured glare reduction: 78% compared to shallow-baffle designs in high-ceiling (4m+) installations

• Regional Application Evidence:
  Validated in Dubai Mall food courts where conventional downlights caused customer complaints (UGR <16 achieved vs. typical 22-25 UGR)

II. Dimension-Power Matrix & Structural Gradation

III. Material Science & Mechanical Integrity

• Enclosure System:

• Primary material: Cold-rolled steel (SPCC) housing

• Surface treatment: Micro-arc oxidation (MAO) coating | 15μm thickness | Salt spray resistance: 1,000h

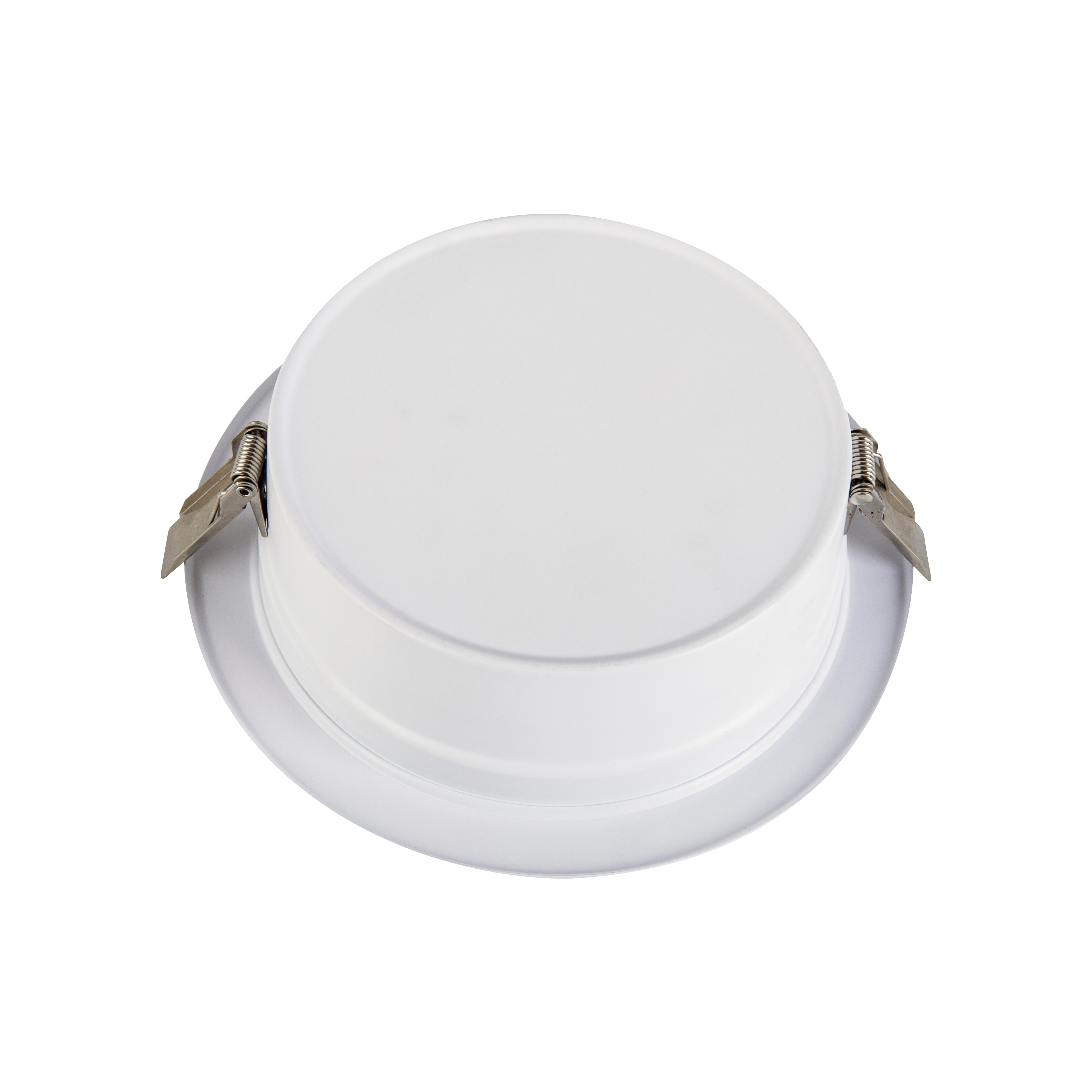

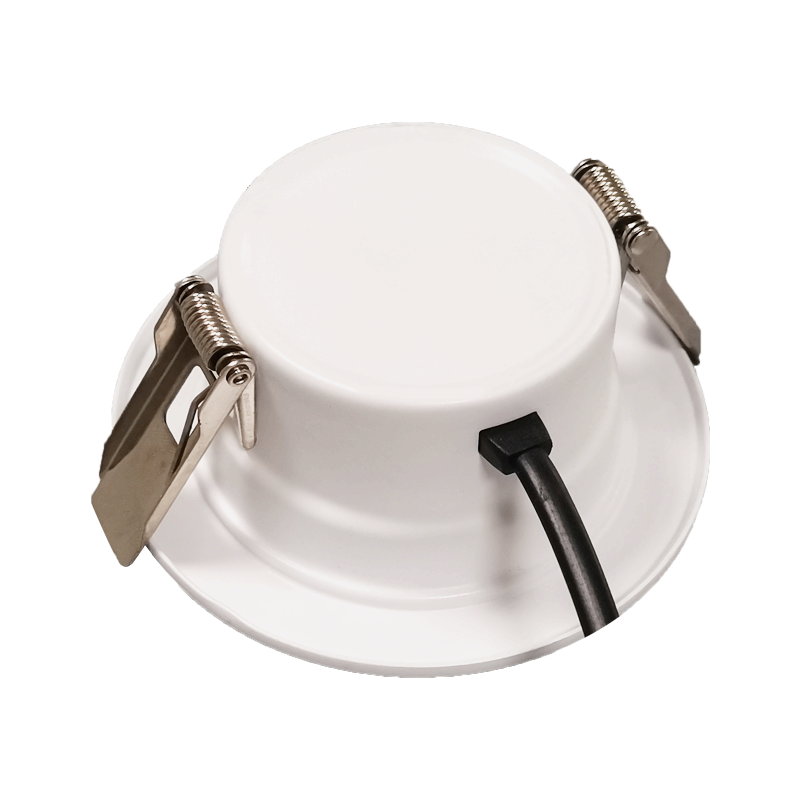

• Mounting Revolution:

  Component	Standard Spring	This Product	Mechanical Advantage
  Material	Spring steel	304 Stainless Steel	Yield strength: 750 MPa vs. 550 MPa
  Deformation cycles	<200 installations	**>500 installations**	Permanent set <0.2mm after compression
  Temperature limit	120°C	650°C	Zero sag at 80°C ceiling cavities

IV. Electro-Thermal Synergy Design

• Voltage Resilience:

• Operational range: AC170-265V (covers Saudi 127V/220V dual systems through auto-adaptation)

• Surge protection: 1.5kV/2Ω combination wave withstand (IEC 61000-4-5 Level 2 equivalent)

• Thermal Control Logic:

• Steel body thermal conductivity: 45 W/(m·K) × 120% mass vs. aluminum alternatives

• Calculated thermal resistance: θjc = 3.2°C/W @ 30W load (230mm model)

V. Industrial Aesthetic Language

• Form Language:

• Exposed stainless steel springs as intentional visual elements

• Sandblasted matte finish (Ra 1.6-2.5μm) rejecting fingerprint marks

• Zero plastic components – pure metallic texture retention

• Design Integrity:
  Industrial coherence maintained by:

1. Unpainted metal surfaces

2. Hex-head security screws (visible fastening)

3. Knurled adjustment ring for 30° tilt mechanism

VI. Installation Mechanics & Compatibility

• Ceiling Integration:

  Aperture (mm)	Cutout (mm)	Ceiling Thickness
  105	Ø98±0.5	10-25mm
  140	Ø133±0.5	12-30mm
  180	Ø173±0.5	15-35mm
  230	Ø223±0.5	20-40mm

• Tool-Free Operation:
  Stainless springs require 12kgf insertion force vs. 8kgf standard – guarantees vibration resistance in HVAC zones

VII. Regional Performance Validation

• Temperature Endurance:
  Tested at 45°C ambient (Kuwait summer peak):

• Driver case temperature maintained at 72°C (vs. 85°C limit)

• Voltage Fluctuation Simulation:
  Saudi grid scenario (170V→265V ramp in 2sec):

• Flicker index: 0.01 (below perceptible 0.05 threshold)

VIII. Comparative Advantage Matrix
