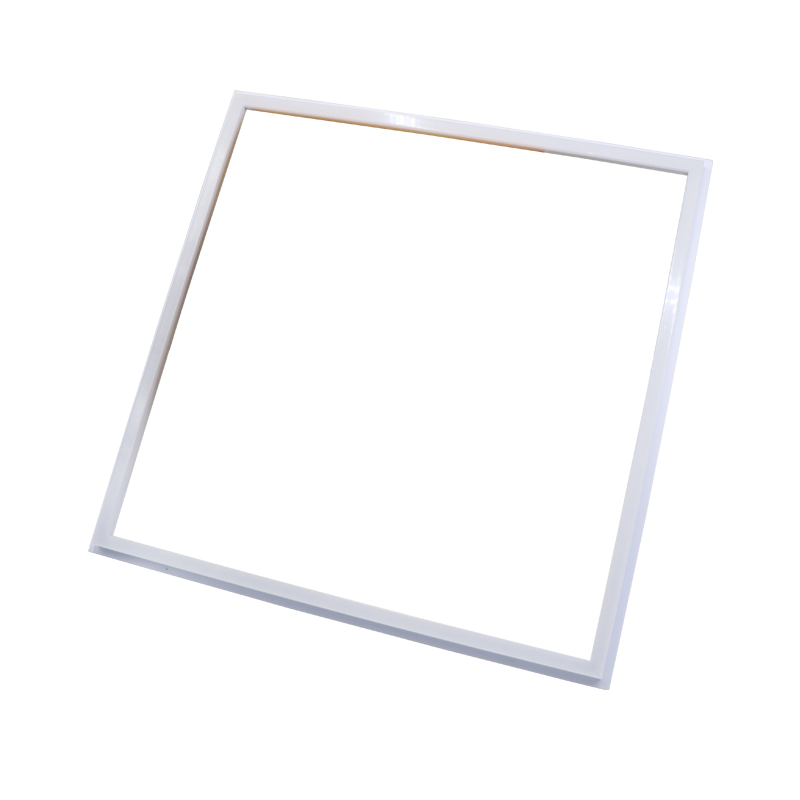

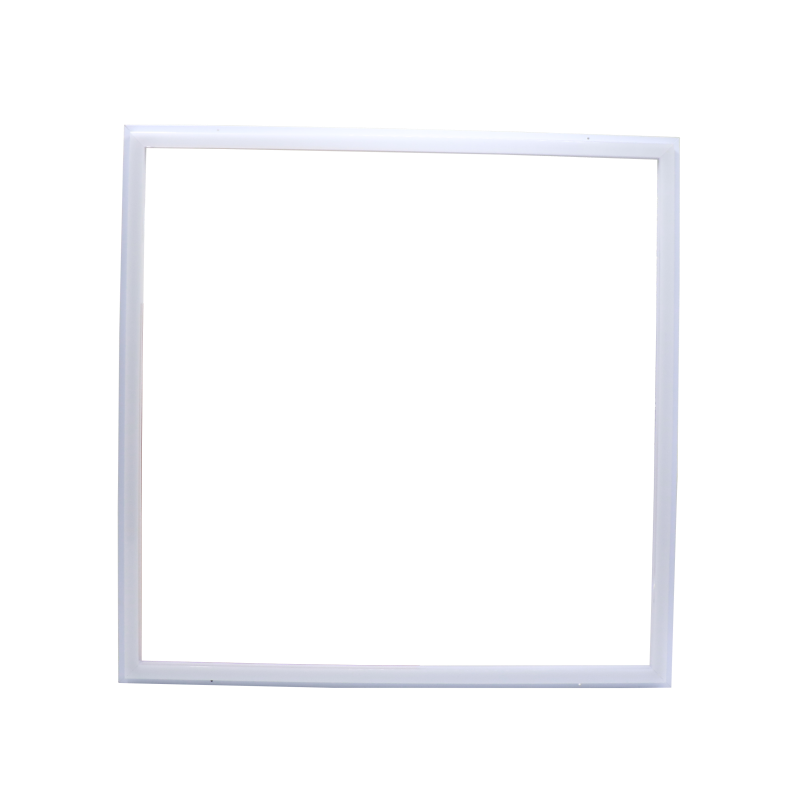

60x60cm LED Recessed Frame Light APL-PB-2515

I. Revolutionary Design Philosophy

Seamless Integration with 600×600mm Flat Panels

• Aesthetic Innovation: 15mm ultra-slim profile creates flush-mounted "lighting canvas" effect

• Grid System Compatibility: Interconnects with Armstrong-style ceilings via T-slot adapters (EN 13964:2014 compliant)

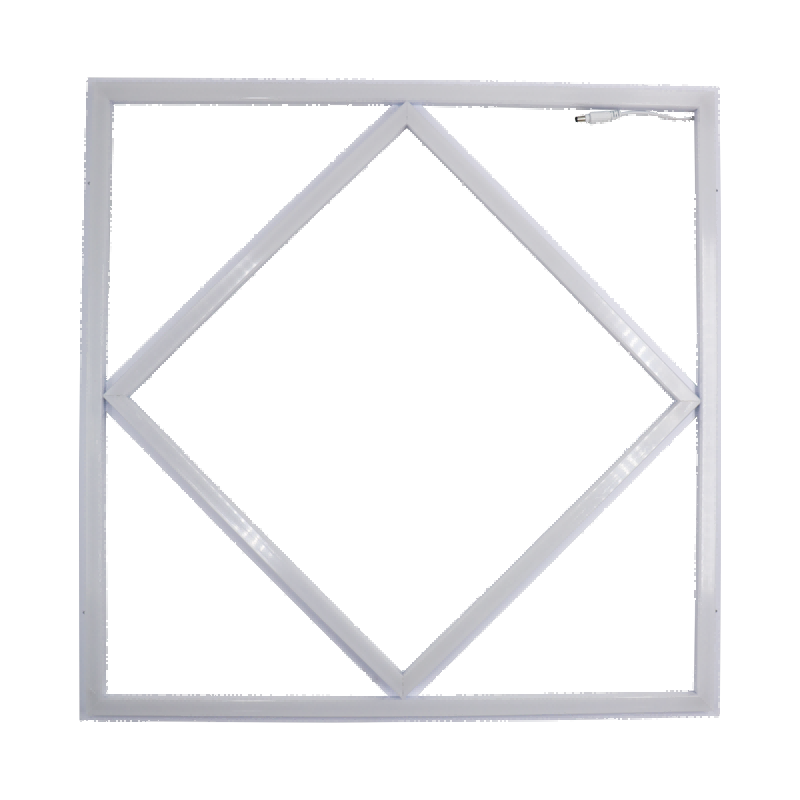

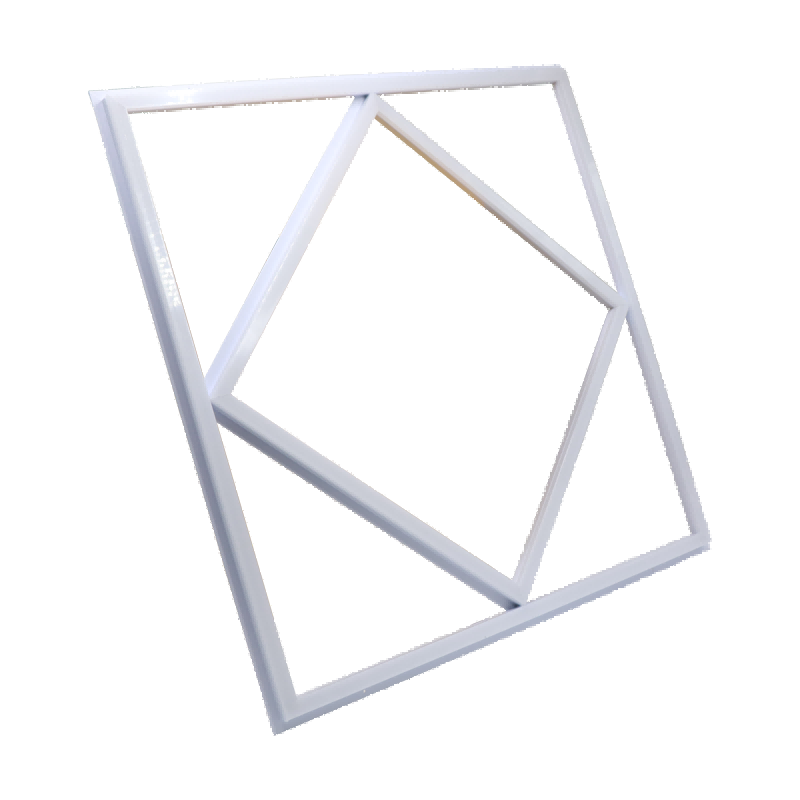

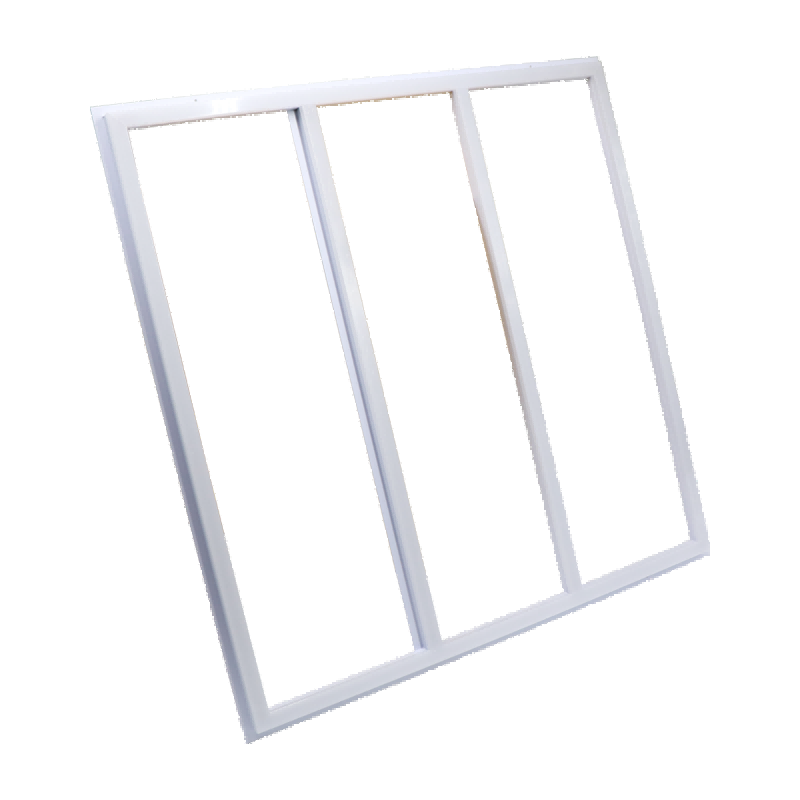

• Shape Customization: Hexagonal/linear/wave configurations via magnetic corner joints (Patent Pending)

II. Photometric Excellence

High-Efficiency Optical Engine

Core Technology:

• Micro-prismatic PC light guide (92% transmission)

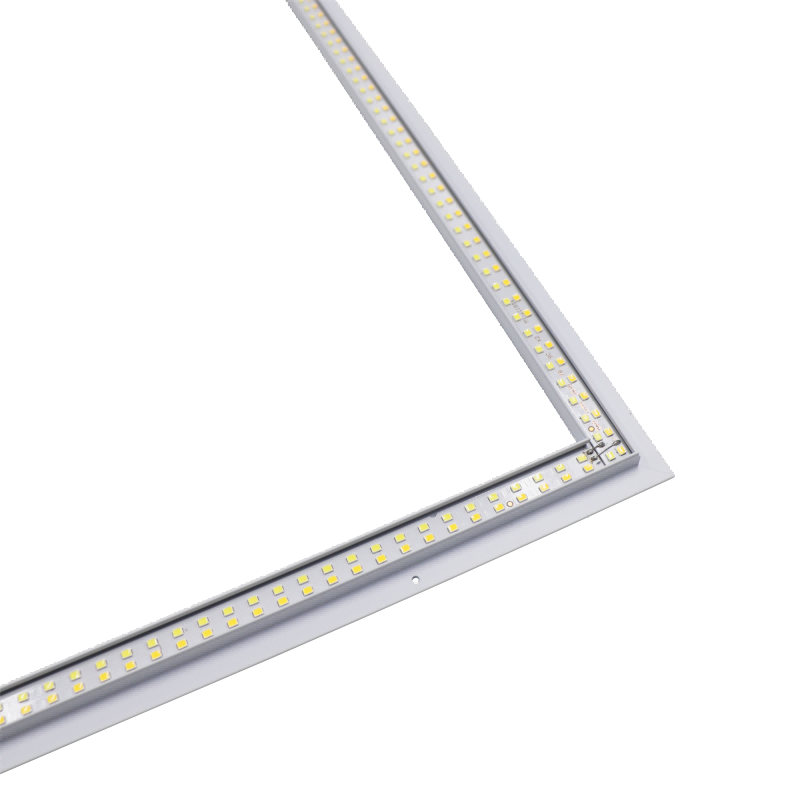

• Edge-lit SMD2835 array (120lm/chip @65mA)

III. Multi-Mount Installation System

1. Recessed Mounting

• Spring Clip Mechanism: Stainless steel torsion springs (15kg retention force)

• Cutout Tolerance: ±5mm accommodation for retrofit ceilings

• Ceiling Compatibility: Gypsum/mineral fiber/concrete (max. 25mm thickness)

2. Surface Mounting

• Direct Screw Fastening: M4 threaded inserts at 200mm intervals (no adapter frame)

• Sealing System: Silicone gasket (IP54 rating for damp locations)

3. Suspended Mounting

• Cable Kit: 4× Ø1.5mm aircraft cables (SWL 15kg)

• Height Adjustment: 500-3000mm via ratchet system

IV. Power & Electrical Architecture

Wattage Matrix

Driver Specifications:

• Global Voltage: AC85-305V 50/60Hz auto-sensing

• Protection Grade: IP67 aluminum housing (6kV surge protection)

• North American Version: ETL-certified iron casing (UL 8750 + CSA C22.2)

V. Material Science & Construction

Structural Integrity:

• Torsional rigidity: 12N·m/degree (ISO 178:2019)

• Impact resistance: IK08 (EN 62262)

VI. Global Compliance Ecosystem

VII. Warranty & Reliability Data

Tiered Warranty Structure:

Accelerated Life Testing:

• Thermal aging: 5,000hrs @85°C (IEC 60068-2-2)

• Humidity exposure: 1,000hrs @95% RH (IEC 60068-2-56)

• Vibration: 10-500Hz @3g (IEC 60068-2-64)

VIII. Application-Specific Configurations

Commercial Interiors

plaintextplaintext复制plaintext复制Project: Dubai Mall Atrium
Configuration: 64W suspended hex-grid (48 units)
Performance:
- Illuminance: 850 lux uniformity 0.88
- Energy saving: 52% vs metal halide

Healthcare Lighting

• Surgical Zones: 48W isolated-driver units (leakage current <0.5mA)

• Patient Rooms: 36W 3000K CCT with Ra>85

IX. Packaging & Logistics

• 100% recyclable PET foam inserts

• Flat-pack design: 1.2m³ per 100 units (vs 2.5m³ industry avg)

X. Ordering & Customization

Finish Options (MOQ 500 units):
