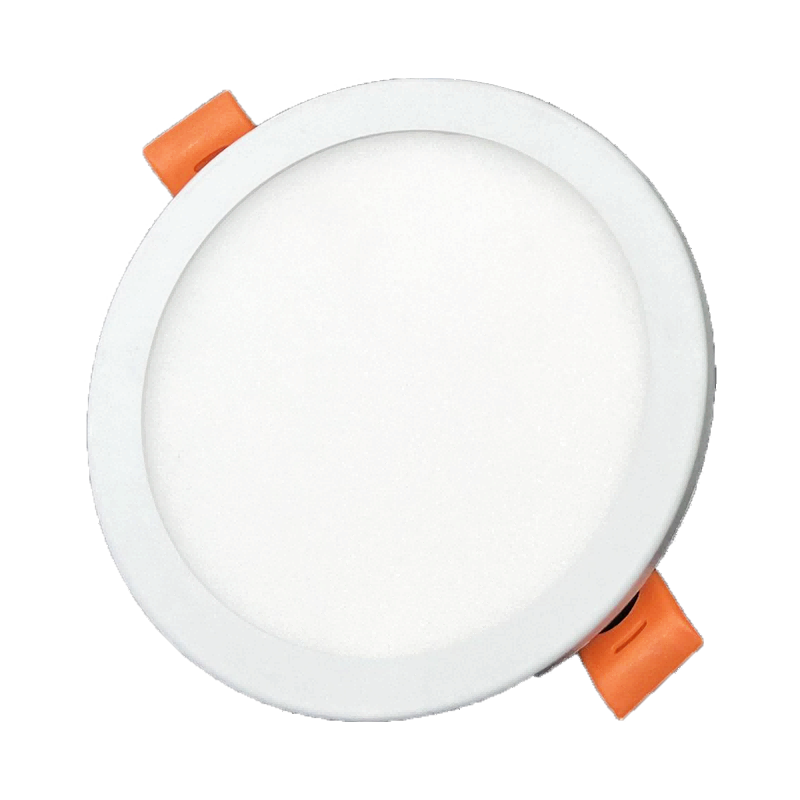

Ultra-Slim LED Panel Light APL-PB-2509

Brand L.I.O.N
Product origin China

Circular: Ø100-230mm×10mm; Square: 100×100-230×230mm×10mm. 6W-20W options with ±15mm cutout tolerance. Dual-driver choice (internal/external). 60-70lm/W efficacy, CRI>80. Aluminum heat sink. AC165-265V input. CE/RoHS/DLC certified for commercial/medical spaces.

I. Optical & Mechanical Engineering

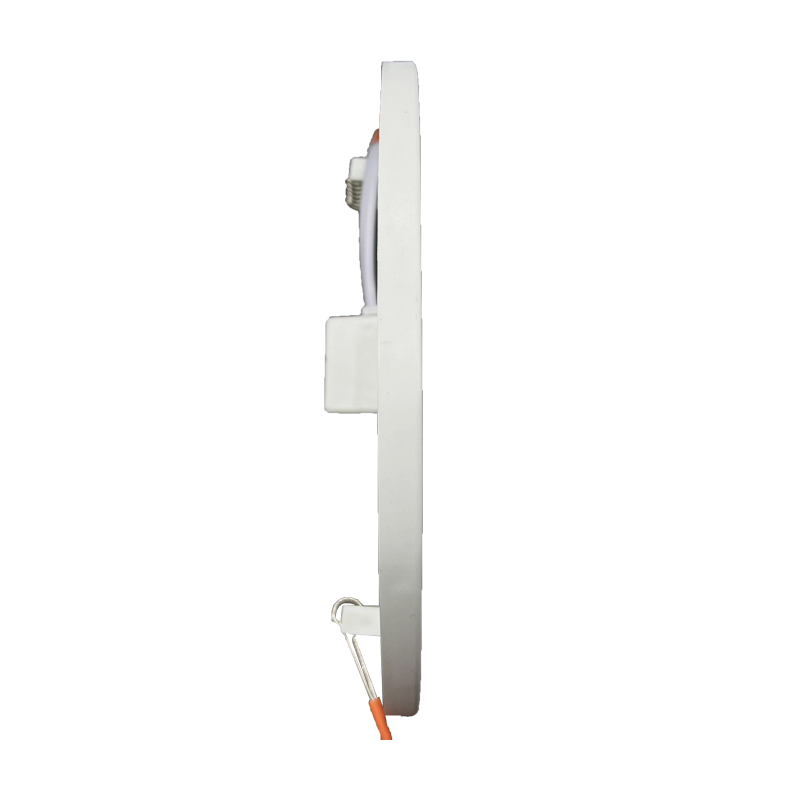

10mm Ultra-Slim Edge-Lit Technology

Space Optimization: 70% thinner than standard panels (industry avg: 35mm)
Light Guide Plate: 0.5mm V-cut micro-prism pattern achieves 92% uniformity (EN 13032-1)
Bezel-Free Illumination: 1.2mm nano-frame design maximizes active area to 98%

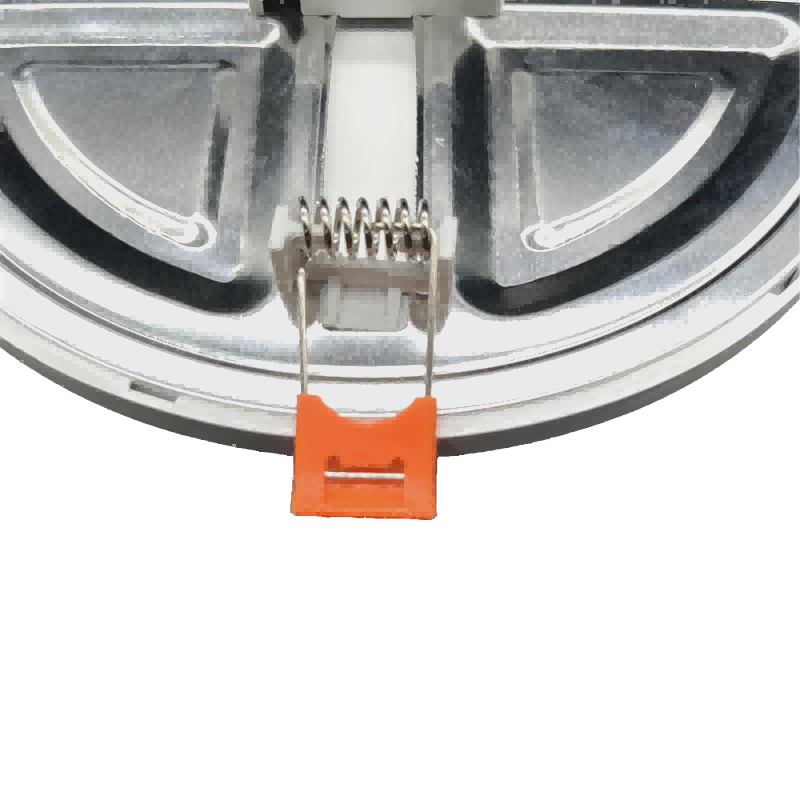

Cutout Flexibility:

Spring-loaded brackets enable ±15mm cutout tolerance (vs. ±3mm industry standard)
Tool-free adjustment via sliding lock mechanism (patent pending)

II. Complete Dimensional Matrix

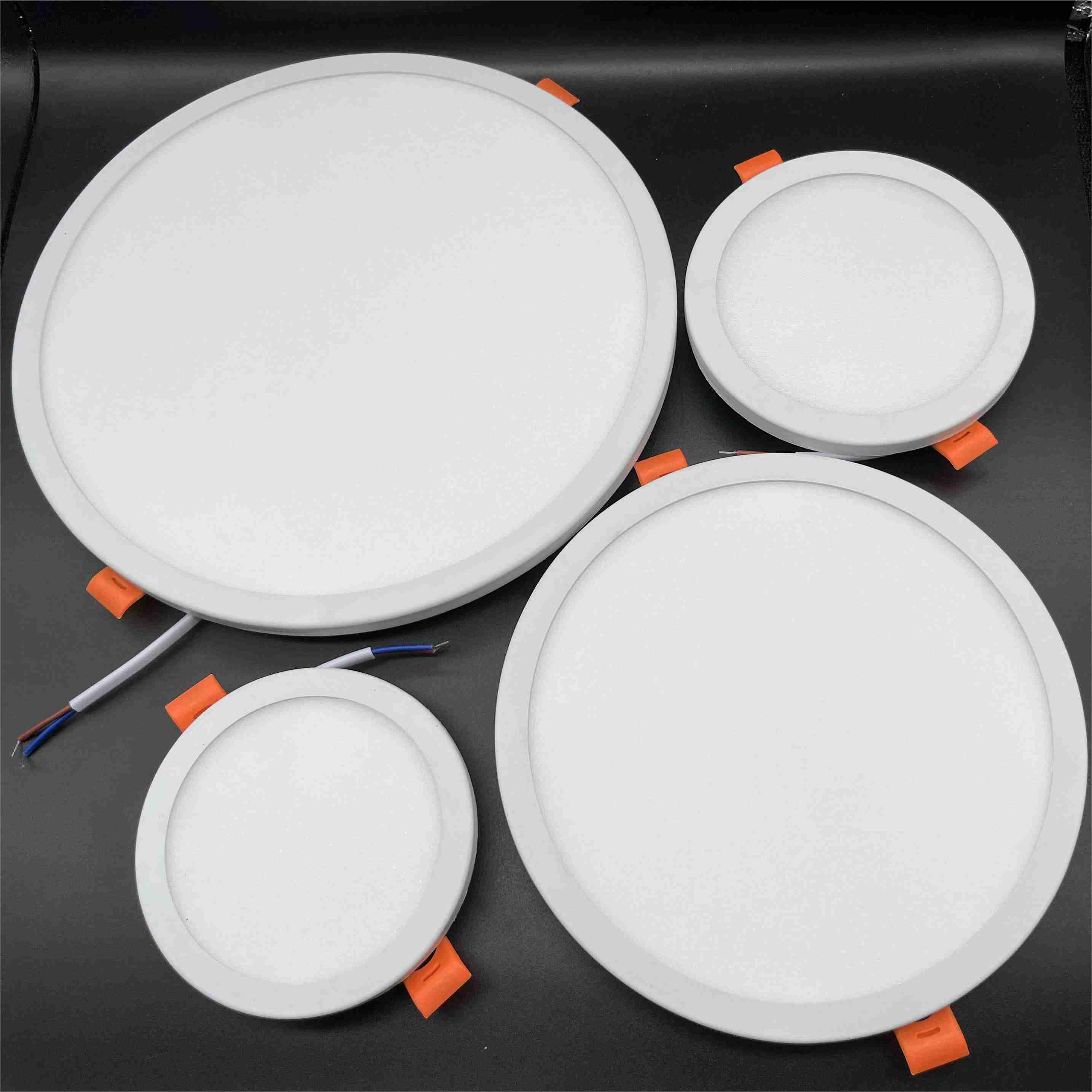

A. Circular Series

Model	Fixture Size (Ø×H mm)	Cutout Range (mm)	Power
C100	Ø100×10±0.3	Ø50-90	6W
C118	Ø118×10±0.4	Ø50-110	8W
C175	Ø175×10±0.6	Ø50-160	15W
C230	Ø230×10±0.8	Ø50-210	20W

B. Square Series

Model	Fixture Size (L×W×H mm)	Cutout Range (mm)	Power
S100	100×100×10±0.3	50×50-90×90	6W
S118	118×118×10±0.4	50×50-110×110	8W
S175	175×175×10±0.6	50×50-160×160	15W
S230	230×230×10±0.8	50×50-210×210	20W

Installation Tolerance:

Max. ceiling unevenness: ±2mm/m²
Mounting ear rotation: 360° continuous

III. Dual-Driver Thermal Architecture

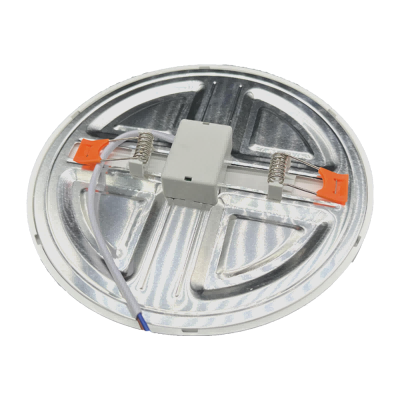

Option 1: Internal Driver

Dimensions: Adds 8mm thickness (total H=18mm)
Thermal Solution: Phase-change material (PCM) with 8W/m·K conductivity
Ambient Limit: Ta≤40°C

Option 2: External Driver

Enclosure: IP67 aluminum case (120×60×30mm)
Cable: 1.5m silicone-jacketed wire (105°C rating)
Ambient Limit: Ta≤50°C

Thermal Performance Comparison:

Parameter	Internal Driver	External Driver
Tc (LED Board)	68°C @Ta=25°C	58°C @Ta=25°C
L70 Lifetime	45,000 hrs	60,000 hrs
Warranty	3 years	5 years

IV. Material Science & Photometrics

Core Components:

Element	Specification	Certification
Light Chamber	1.5mm PMMA + PET reflector	89% transmission (ASTM D1003)
Metal Backplate	1.0mm anodized Al (6063-T6)	EN 755-9 tensile test
Mounting System	Spring steel (SUS304)	50k cycle test (EN 60598)
Diffuser	Micro-prismatic PC (UGR<16)	ISO 4892-2 UV resistance

Photometric Data (LM-79-08):

Model	Lumens	Efficacy	CRI	Beam Angle
C100/S100	360-420	60-70 lm/W	>80	120°
C230/S230	1,200-1,400	60-70 lm/W	>80	140°

V. Global Compliance & Testing

Electrical Safety:

EN 60598-2-1 (EU)
UL 1598 (North America)
GB 7000.202 (China)

Environmental Validation:

Test	Standard	Result
Thermal Shock	IEC 60068-2-14	25 cycles (-30°C↔+85°C)
Humidity Aging	IEC 60068-2-78	95% RH @45°C, 1,000hrs
Vibration Resistance	IEC 60068-2-64	5-500Hz @5g, 2hrs/axis

Certifications:

CE/ROHS/RCM
DLC Premium (70lm/W min)
KC 62368 (Korea)

VI. Installation Protocol

Critical Parameters:

Ceiling Compatibility:

Gypsum board: 9-25mm thickness
Concrete: Requires M6 chemical anchors

Cutout Preparation:

Step 1: Drill pilot hole within cutout range
Step 2: Extend brackets to match opening
Step 3: Lock with quarter-turn fasteners

Thermal Management:

Maintain ≥40mm clearance from insulation
Derating: -5% flux/°C above 35°C

VII. Packaging & Logistics

Model	Carton Qty	Dimensions (mm)	Gross Weight	40HC Capacity
C100/S100	48 units	600×400×200	12kg	23,040 units
C230/S230	16 units	800×800×300	18kg	6,144 units

Sustainability Features:

Recycled aluminum content: 85%
Carbon footprint: 2.8kg CO₂/unit (ISO 14067)

VIII. Application Guidelines

Commercial Retrofit (Berlin Office Case):

复制复制Solution: 220× C175 units (internal driver)
Results:
- Installation time: 3.5min/unit (vs 8min industry avg)
- Energy saving: 52% vs T5 fluorescent

Medical Facilities:

External driver recommended (lower Tc)
4000K CCT with 90CRI option
