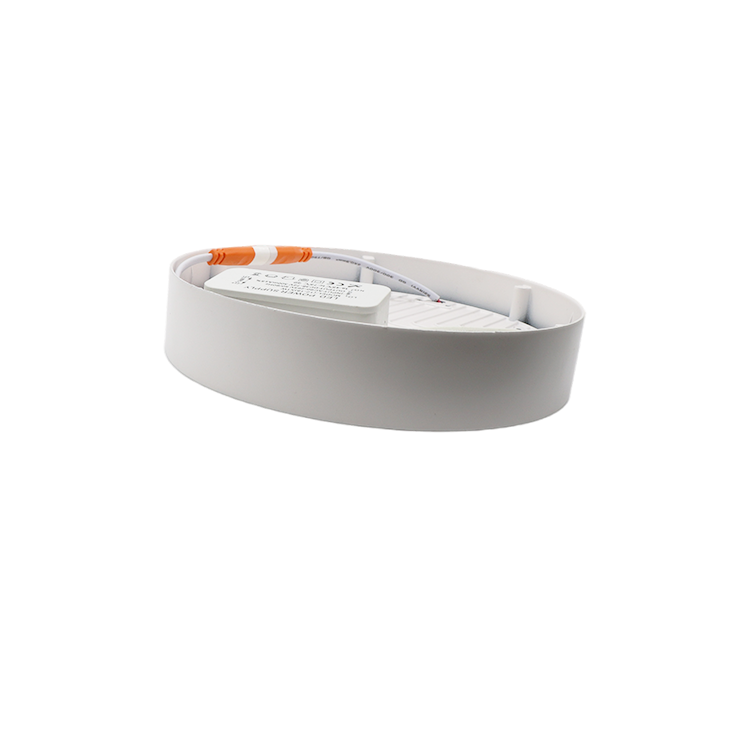

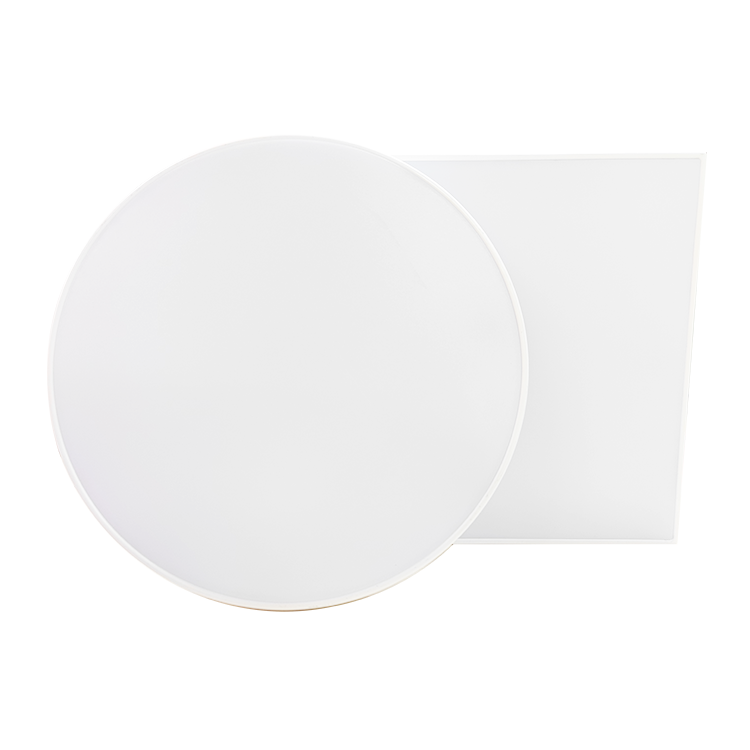

APL-PB-2508D

Brand L.I.O.N
Product origin China

Φ120-300mm sizes (18W-48W). Bezel-free design achieves near 100% active area. Die-cast aluminum housing ensures superior heat dissipation. 90-100lm/W efficacy, CRI>80. AC100-265V input. IP44 rated diffuser. CE/RoHS/DLC certified. Ideal for offices/retail spaces.

I. Optical Engineering Breakthrough

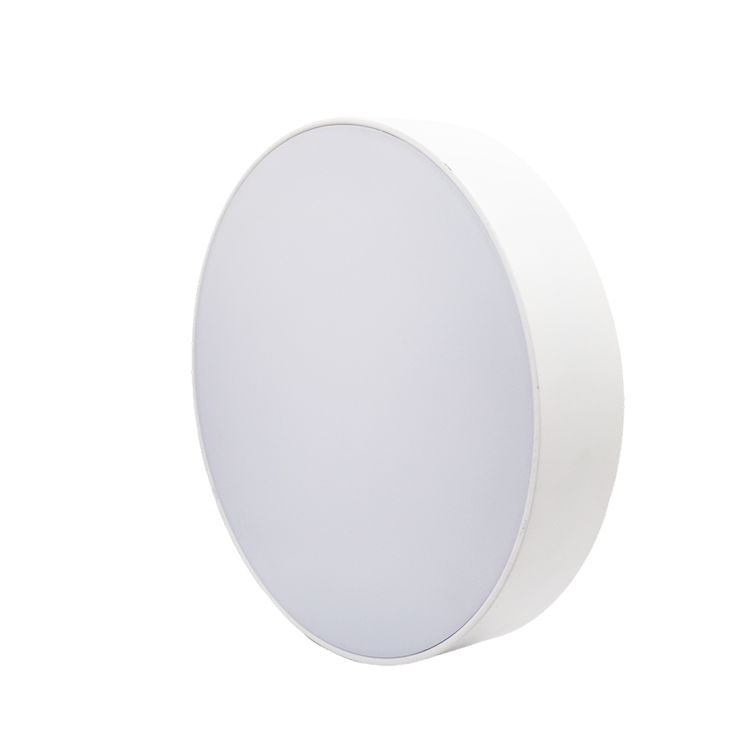

Bezel-Free Illumination Technology

Near-100% Active Area: 1.5mm ultra-narrow bezel achieves 98.7% light-emitting surface ratio (vs. 85% industry standard)
Edge-to-Edge Brightness: Patented light guide plate (LGP) with laser-etched micro-dots eliminates dark borders
Glare Control: UGR<14 via prismatic diffuser + micro-louver layer (EN 12464-1:2021 compliant)

Core Innovation:

Zero frame shadow effect at 170° viewing angle
92% uniformity (CIE 150:2017)

II. Advanced Thermal Architecture

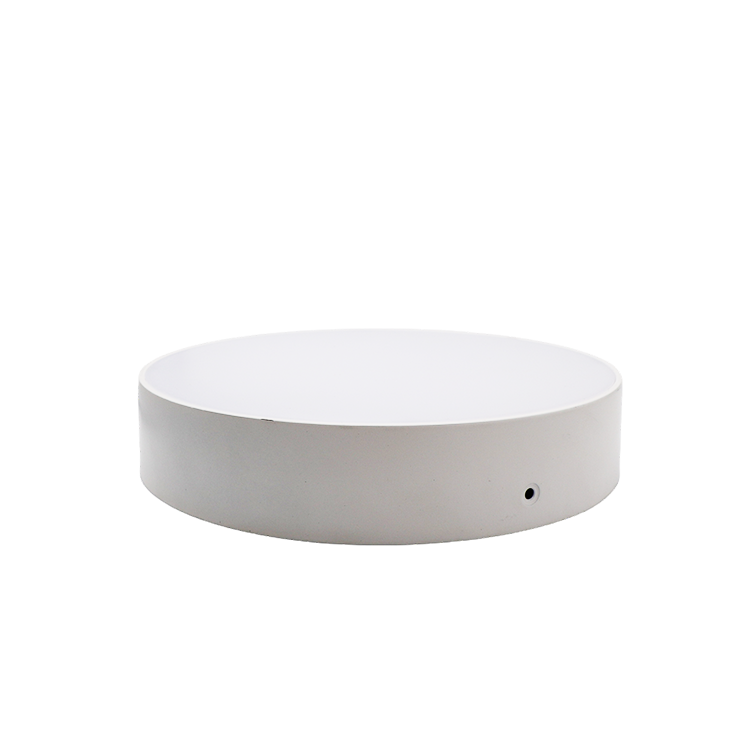

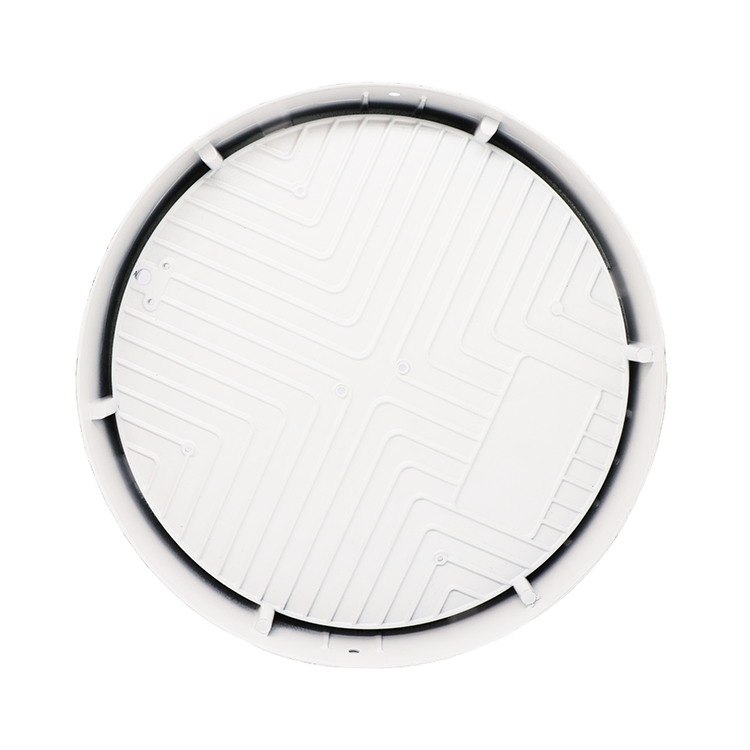

Die-Cast Aluminum (ADC12) Monobody Design

Parameter	Specification	Competitive Advantage
Thermal Conductivity	96 W/m·K	40% faster heat dissipation vs steel
Structural Integrity	2.0mm wall thickness	Withstands 50kg point load (EN 60598-1 4.14.3)
Surface Treatment	Sandblasted + anodized (AA15)	Salt spray resistance: 1,000hrs (ISO 9227)
Weight Optimization	0.8kg/Φ120 model	30% lighter than conventional surface lights

III. Product Matrix & Photometrics

Model	Size (Ø×H mm)	Power	Lumens	Efficacy	Beam Angle
2508D-120	Φ120×36±0.4	18W	1,620-1,800	90-100 lm/W	120°
2508D-170	Φ170×36±0.6	24W	2,160-2,400	90-100 lm/W	130°
2508D-225	Φ225×36±0.8	36W	3,240-3,600	90-100 lm/W	140°
2508D-300	Φ300×37±1.0	48W	4,320-4,800	90-100 lm/W	150°

Photometric Validation:

LM-79-08 testing @Ta=25°C
≤3% lumen depreciation after 1,000hrs (IEC 62612)

IV. Mechanical & Electrical Specifications

Mounting System:

Surface Fixation: 4× M5 threaded inserts (304 stainless steel)
Suspension Option: Aircraft cable kit (Ø1.5mm, SWL 15kg)
Tilt Adjustment: ±5° via gimbal ring (optional)

Electrical Performance:

Parameter	Value	Standard
Input Voltage	AC100-265V 50/60Hz	Auto-sensing IC
Power Factor	>0.95	EN 61000-3-2 Class C
THD	<10% @230V	IEC 61000-3-12
Surge Protection	4kV (L-N), 6kV (L-E)	IEC 61000-4-5 Level 4
Ingress Protection	IP44 (diffuser)	IEC 60529

V. Material Science & Manufacturing

Component-Level Engineering:

Subassembly	Material Specification	Certification
Housing	ADC12 die-cast aluminum	EN 1706:2010 Grade 3.1842
Optical Stack	2mm prismatic PMMA + PET reflector	89% transmission (ASTM D1003)
LED Module	SMD2835 (120lm/W bin)	LM-80 Q90 @Ts=105°C

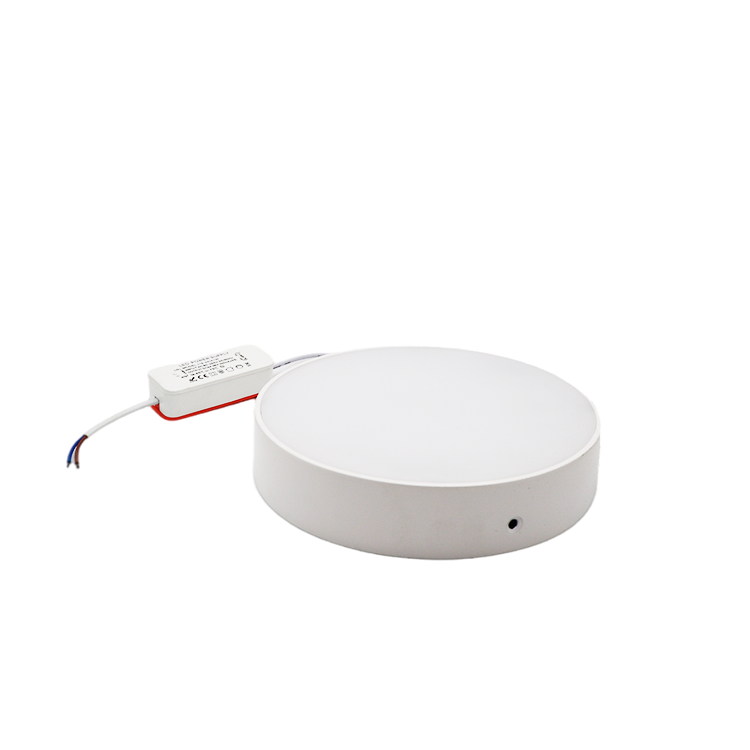

Driver	External IP67 (3m cable)	6kV surge protection

Quality Control:

100% automated AOI inspection (component alignment)
4-point thermal imaging (Tc variance <2°C)

VI. Global Compliance Ecosystem

Region	Safety	EMC	Energy
EU/UK	EN 60598-2-1 + EN 61347-1	EN IEC 55015	ERP Lot 9 (120lm/W min)
North America	UL 1598 + CSA C22.2 No.250.0	FCC Part 15B	DLC Premium v5.2
Asia-Pacific	CCC (GB 7000.201-2017)	KC 62368	MEPS Tier III
Middle East	SASO 2902:2019	GSO EN 55015	ESMA EQM-252:2020

VII. Application-Specific Performance

Commercial Office Installation (Dubai Tower Project):

plaintextplaintext复制plaintext复制Solution: 480× 2508D-225 units (36W/4000K)
Performance Metrics:
- Illuminance: 500 lux uniformity 0.85
- UGR: ≤12.8 @ 3m height
- Energy Saving: 63% vs T8 fluorescent

Retail Highlight:

3000K CCT with 90CRI option (artificial jewelry display)
24° narrow beam optics available

VIII. Installation Protocol

Critical Parameters:

Ceiling Structure:

Min. load capacity: 1.5× fixture weight (≥12kg/m²)
Max. surface unevenness: ±2mm/m²

Electrical Wiring:

Cable cross-section: 1.0-1.5mm² (copper only)
Terminal torque: 0.6Nm (DIN EN 60998)

Thermal Management:

Clearance ≥50mm from insulation (EN 60598-1 Clause 12.5)
Ambient temp limit: 40°C (derating curve applies above)

IX. Packaging & Logistics

Model	Carton Qty	Dimensions (mm)	40HC Capacity
Φ120×36mm	24 units	600×400×300	17,280 units
Φ300×37mm	8 units	800×800×400	5,120 units
Sustainability:

Recycled aluminum content: 85%
Carbon footprint: 3.8kg CO₂/unit
