APL-PB-2508C

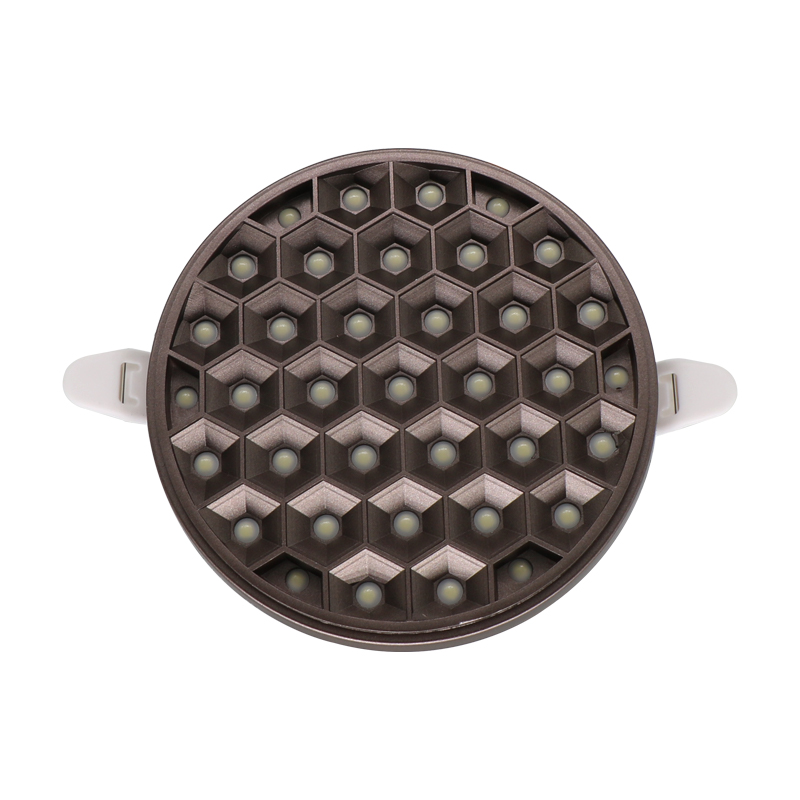

I. Optical Innovation: Honeycomb Glare Control

Deep Anti-Glare Architecture (UGR≤12)

• Micro-Cell Structure: 0.8mm hexagonal aluminum grid blocks direct glare (94% reduction per EN 12464-1)

• Zero Flicker Technology: <0.3% flicker index @100-265V (IEC TR 61547-1:2020 compliant)

• Artistic Light Diffusion: Geometric shadow pattern creates architectural ambiance

Scientific Breakthrough:

• Patent-pending light-diffusing PC layer (89% transmission) + reflective honeycomb matrix

• Museum-grade visual comfort with 1:1.15 luminance uniformity

II. Thermal & Mechanical Engineering

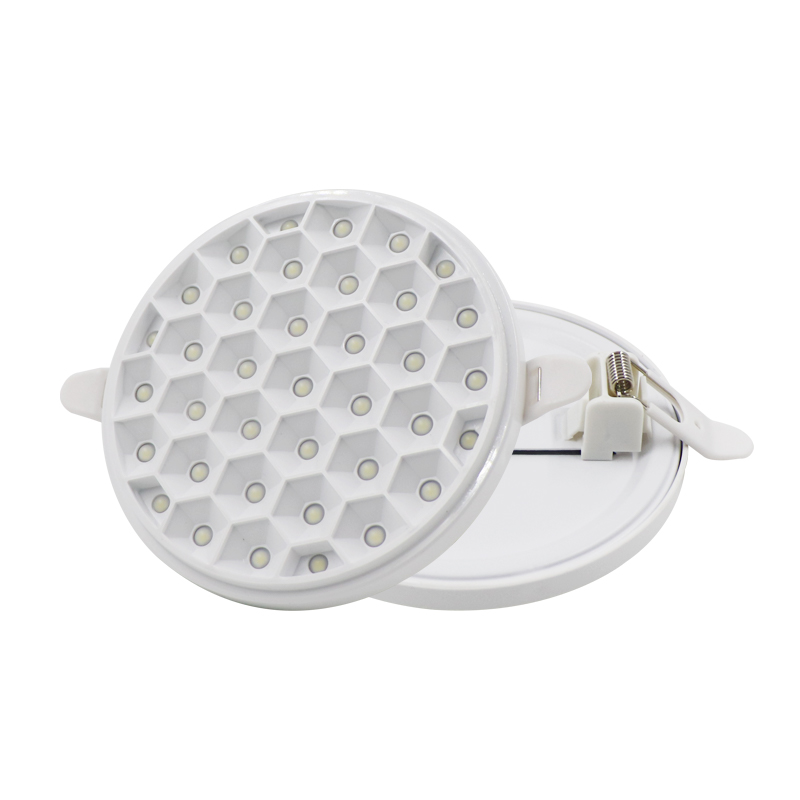

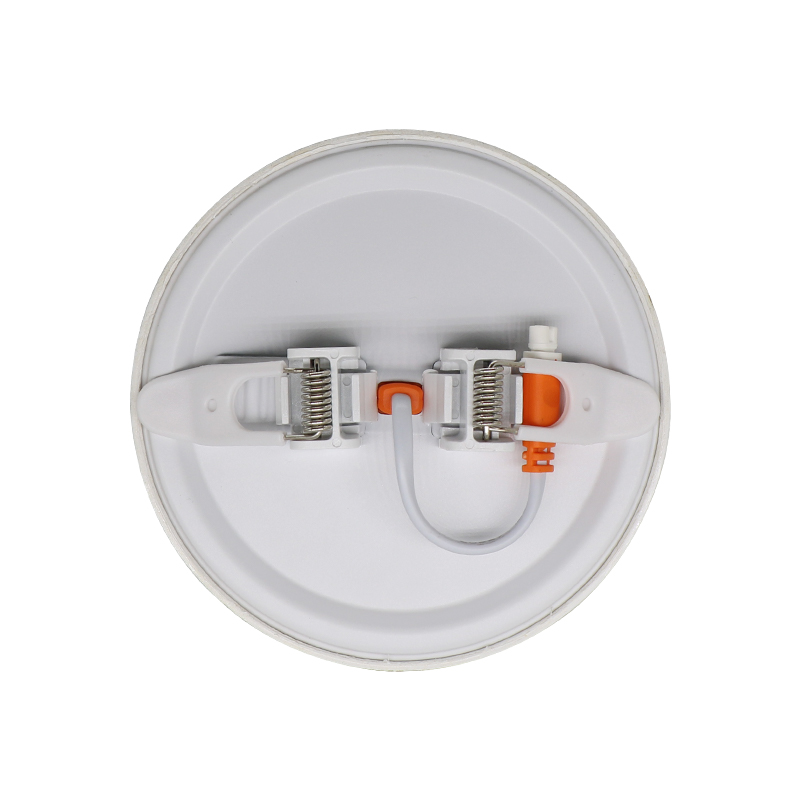

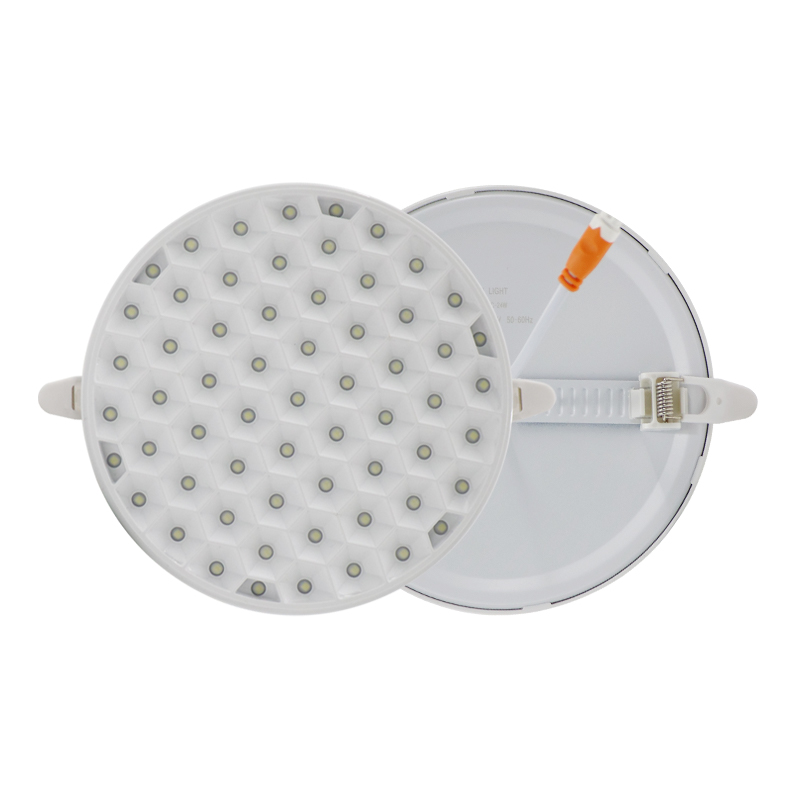

Spring Mechanism Innovation:

• 360° rotatable clips with ±15mm travel range

• Retention force: 8-12kg (adjustable via torque limiter)

III. Complete Product Matrix

Cutout Flexibility:

• Spring clip adjustment range: ±15mm (validated per EN 13964:2014)

• Compatible with irregular openings in historic buildings

IV. Photometric Validation Data

LM-79-08 Certified Performance

V. Electrical & Driver Specifications

External Driver System (IP67 Rated)

Thermal Safeguards:

• Auto power reduction @Tc≥95°C

• Over-temperature shutdown @105°C

VI. Customization Ecosystem

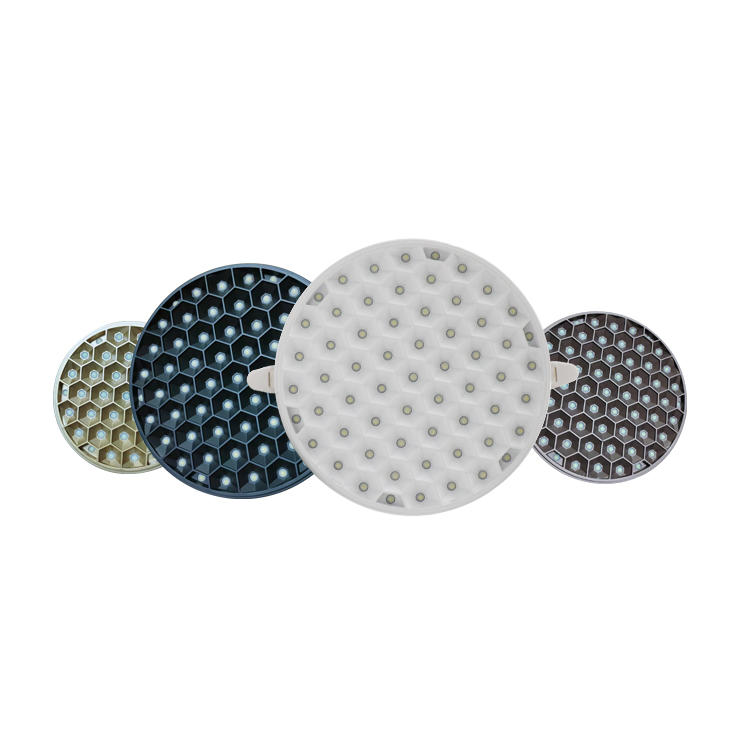

Finish Options (MOQ 500 units)

Honeycomb Pattern Variations:

• Standard Hexagon (6mm cell)

• Diamond lattice (art series)

• Custom fractal designs

VII. Global Compliance & Certification

VIII. Installation Engineering Protocol

Recessed Mounting Procedure

plaintextplaintext复制plaintext复制Step 1: Cut opening within Φ50-205mm range
Step 2: Rotate spring clips to match cutout size
Step 3: Insert vertically → rotate 45° until click (15kg retention)
Step 4: Connect driver via push-lock terminals

Critical Parameters:

• Ceiling thickness: 9-25mm (gypsum/concrete/mineral fiber)

• Void depth requirement: ≥45mm

• Insulation clearance: ≥30mm

IX. Application-Specific Performance

Office Lighting Retrofit (Berlin Tower)

plaintextplaintext复制plaintext复制Project: 620× 2508C-120 units
Results:
- UGR≤12.3 @ 2.8m height
- Energy saving: 58% vs T5 fluorescent
- Maintenance cost: ↓72% (50,000hr lifespan)

Art Gallery Application:

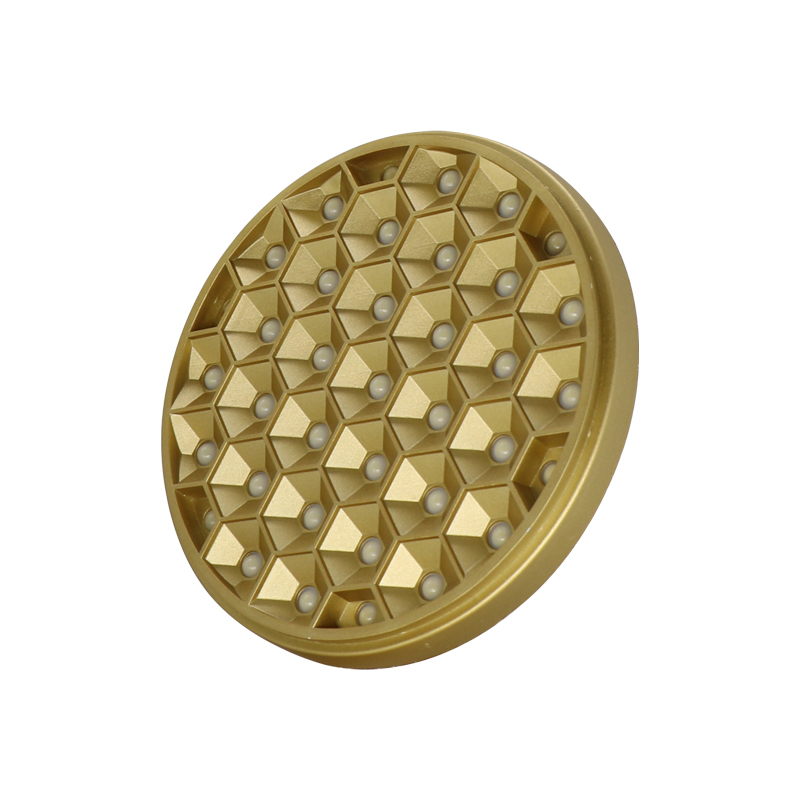

• Custom bronze honeycomb finish

• 3000K CCT with 90CRI option

• 0% UV/IR emission (art preservation)

X. Packaging & Logistics
