When planning a lighting project, one of the most fundamental choices you'll make is between low-voltage and line-voltage (also called high-voltage) lighting systems. While both provide excellent illumination, they serve different purposes and have distinct advantages. Understanding their differences is key to selecting the right solution for your space.
At its core, the primary difference lies in the amount of electrical power they operate on.
Line-Voltage Lighting: Uses the standard voltage from your wall outlet, which is 120 volts (V) in North America and 230V in many other parts of the world. These fixtures plug directly into an outlet or are hardwired into your home's main electrical circuit.

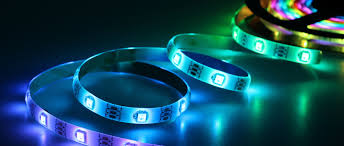

Low-Voltage Lighting: Operates on a much lower, safer voltage, typically 12V or 24V. These systems require a transformer to "step down" the standard line voltage from your home to the lower voltage required by the light fixtures.
Let's break down the key distinctions:
1. Power Source & Installation
Line-Voltage:
Direct Connection: Connects directly to your home's electrical system without an external device.
Simplicity: Installation is often simpler for basic fixtures, as there is no extra component to install.
Examples: Standard ceiling lights, table lamps, most common household light bulbs (like A19 bulbs), and track lighting.
Low-Voltage:
Requires a Transformer: A transformer is mandatory. It can be built into the fixture itself (common for some desk lamps), located in the track of a track lighting system, or be a separate, remote unit (common for outdoor and landscape lighting).
Installation Consideration: You must account for the placement and capacity of the transformer. The transformer's wattage must be equal to or greater than the total wattage of all the lights on the circuit.
Examples: Landscape spotlights, under-cabinet tape lights, high-precision track lights, and many modern pendant lights with integrated drivers.
2. Light Quality and Bulb Types
Low-Voltage:
Superior Light Quality: Historically, low-voltage halogen bulbs produced a whiter, brighter, and more crisp light with excellent color rendering (CRI), making colors appear more vibrant.
Precise Beam Control: The smaller filaments in low-voltage bulbs allow for more compact and efficient reflectors, creating sharper, more controlled beams. This makes them ideal for accent lighting, task lighting, and highlighting artwork.
Modern Shift: With the rise of LEDs, this distinction has blurred, as LEDs inherently produce high-quality light. However, the principle of precise optical control remains a key advantage for low-voltage systems.
Line-Voltage:
Versatile and General Purpose: Traditionally used for ambient lighting to fill a room with general illumination.
Wider Variety: Supports a vast range of bulb shapes, sizes, and technologies (incandescent, CFL, LED).
3. Energy Efficiency and Safety
Low-Voltage:
Inherently Efficient: Operating at a lower voltage allows the system to use less power to produce the same or even more light (measured in lumens). This was especially true with low-voltage halogen vs. standard incandescent bulbs.
Safer: The 12V or 24V current is much safer to handle, reducing the risk of severe electrical shock. This makes it the preferred and often mandatory choice for outdoor, garden, and landscape lighting, as well as for lighting in wet locations like bathrooms or near pools.
Line-Voltage:
Standard Efficiency: Modern line-voltage LED fixtures are highly efficient. The efficiency gap is no longer as wide as it once was.
Standard Safety Protocols: Requires proper installation and grounding according to electrical codes, as the higher voltage poses a greater shock hazard.
4. Cost and Flexibility
Low-Voltage:
Higher Initial Cost: Often more expensive due to the added cost of the transformer and more specialized fixtures and bulbs.
Cable Flexibility: Can use thinner, low-voltage cable, which is easier to run and conceal.
Limitation on Run Length: Because voltage drops over distance, there is a limit to how far you can run the wire from the transformer before the lights dim. This requires careful planning.
Line-Voltage:
Lower Initial Cost: Fixtures and bulbs are generally less expensive and more widely available.
Greater Distance: Can run over much longer distances without significant voltage drop.
Less Flexible Wiring: Requires thicker, sheathed electrical cable that must be installed inside walls or conduits according to strict electrical codes.
Summary: Which One Should You Choose?
Feature | Low-Voltage Lighting | Line-Voltage Lighting |
Operating Voltage | 12V or 24V | 120V / 230V |
Power Source | Requires a Transformer | Plugs directly into outlet or is hardwired |
Best For | Accent, Task, and Landscape Lighting | General, Ambient, and Overhead Lighting |
Light Control | Excellent, precise beams | Good, broader light distribution |
Safety | Higher (Safer for wet/damp locations) | Standard (Must follow electrical codes) |
Initial Cost | Typically higher | Typically lower |
Run Length | Limited by voltage drop | Can run much longer distances |
Conclusion:
The choice isn't about which is "better," but which is more appropriate for your specific application.
Choose low-voltage lighting when you need precise, high-quality light for highlighting features, for task lighting in kitchens or studies, or for any outdoor application where safety and beam control are paramount.
Choose line-voltage lighting for your primary source of ambient light in rooms, for most standard ceiling fixtures, and for situations where you want a simple, cost-effective solution without the need for a separate transformer.
In the modern age of LED technology, many of the performance gaps have closed, but the fundamental differences in installation, safety, and application remain as important as ever.
