Vietnam Cultural & Tourism Complex Floodlight Project
(Adapted for Southeast Asian markets, highlighting outdoor engineering, night scene lighting, and cultural tourism scenarios)
Case Cover / Header Information：
Case Name: Outdoor Floodlight Lighting Project for in Vietnam
Industry: Cultural Tourism Night Experience / Commercial Complex / Outdoor Landscape Lighting
Project Type: Turnkey Engineering (Design + Supply + Installation + Commissioning) for Outdoor Floodlight Systems
Cooperation Period: 2025
Core Technology Stack: RGBW Full-Color Floodlights + DMX512 Control System + Waterproof & Heat-Dissipation Design + Remote Intelligent Dimming System
Core Achievements: Created Southeast Asia’s first all-weather "Rainforest Theme" night scene, increased nighttime foot traffic by 45%, turned the venue into a local internet-famous check-in spot, and was nominated for Vietnam’s Ministry of Culture, Sports and Tourism "Best Night Scene Project of the Year".
Project Background & Requirements
1.1 Client Pain Points
The original venue only had basic lighting with no professional night scene design, resulting in nighttime foot traffic being less than 20% of daytime levels, which could not support nighttime operations such as dining and performances.
The tropical coastal climate (high temperature, humidity, and salt spray) caused standard lighting fixtures to suffer from water ingress, fading, and rapid light decay.
The venue required dynamic lighting effects (to switch with stage performances and themed events), but the existing system lacked intelligent control capabilities.
Local Vietnamese construction teams had limited experience with large-scale outdoor lighting projects, requiring full-process support from design to implementation.
1.2 Core Requirements
Basic Requirements: Complete night scene lighting for a 12,000㎡ outdoor dining and performance area, using floodlights to create a layered rainforest atmosphere. Fixtures must have IP67 waterproofing, salt spray corrosion resistance, and a lifespan of ≥50,000 hours.
Value-Added Requirements: Deploy a DMX512 intelligent control system supporting one-click scene switching and remote debugging; adapt to Vietnam’s grid voltage fluctuations (180V–240V) for system stability; provide localized after-sales operation and maintenance training for long-term reliability.
2. Project Solutions
2.1 Lighting Fixture Selection & Customization
Core Product: Custom 96W two modules RGBW Full-Color Floodlight
Optical Design: 60 wide-beam lens with anti-glare grille to avoid direct light on audiences.
Protection Design: Integrated die-cast structural waterproofing aluminum housing + tempered glass panel, IP67 waterproof rating, with anti-salt-spray corrosion coating.
Heat Dissipation Design: Fin-type heat sink + thermal silicone pad, ensuring stable operation at 45°C ambient temperature.
Control System: DMX512 master + slave modules, supporting mobile APP/PC remote control, with 8 preset lighting scenes (e.g., "Rainforest Breathing", "Stage Follow Spot", "Festival Celebration").
2.2 Lighting Design Scheme
Layered Lighting Strategy:

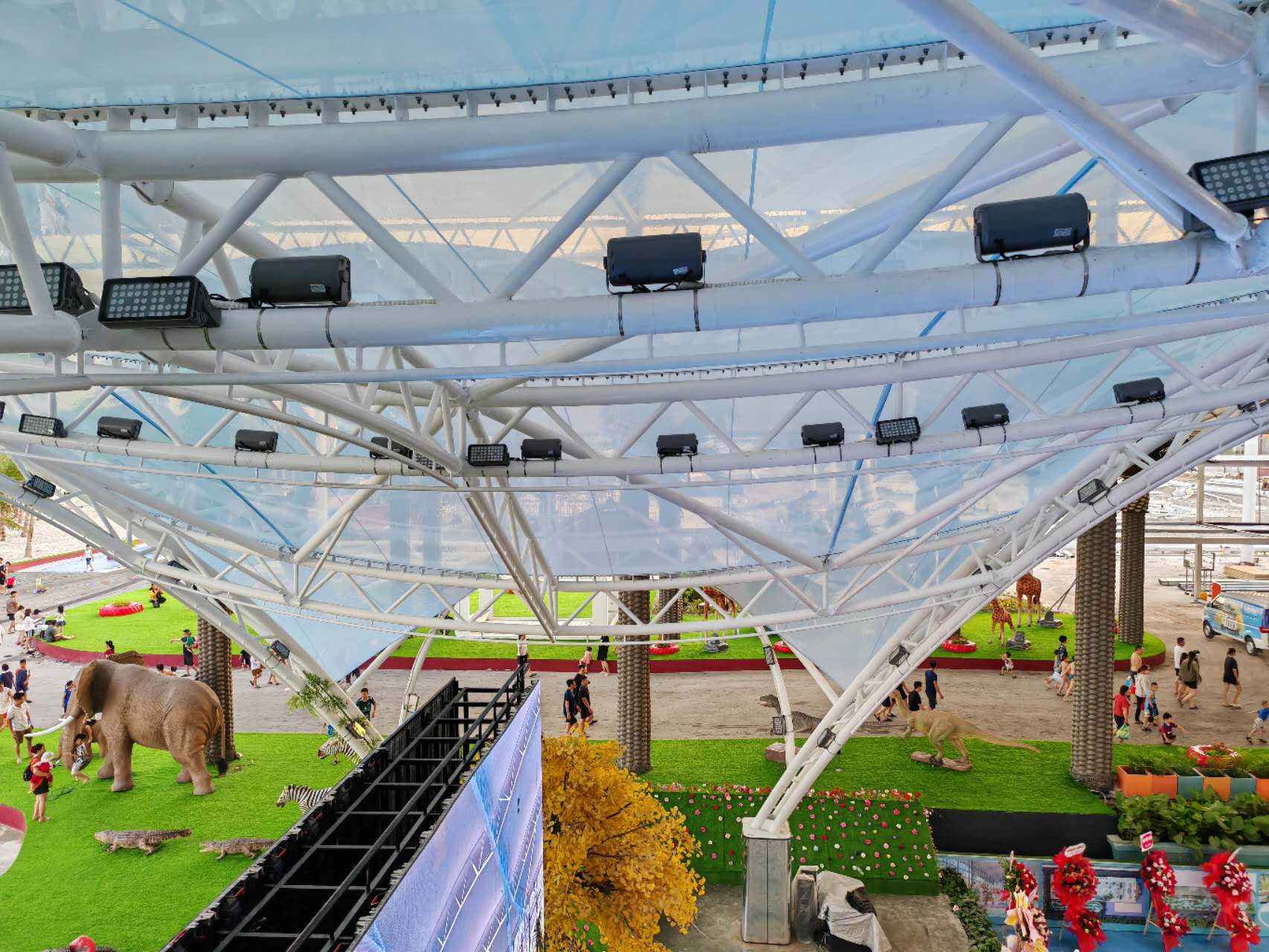

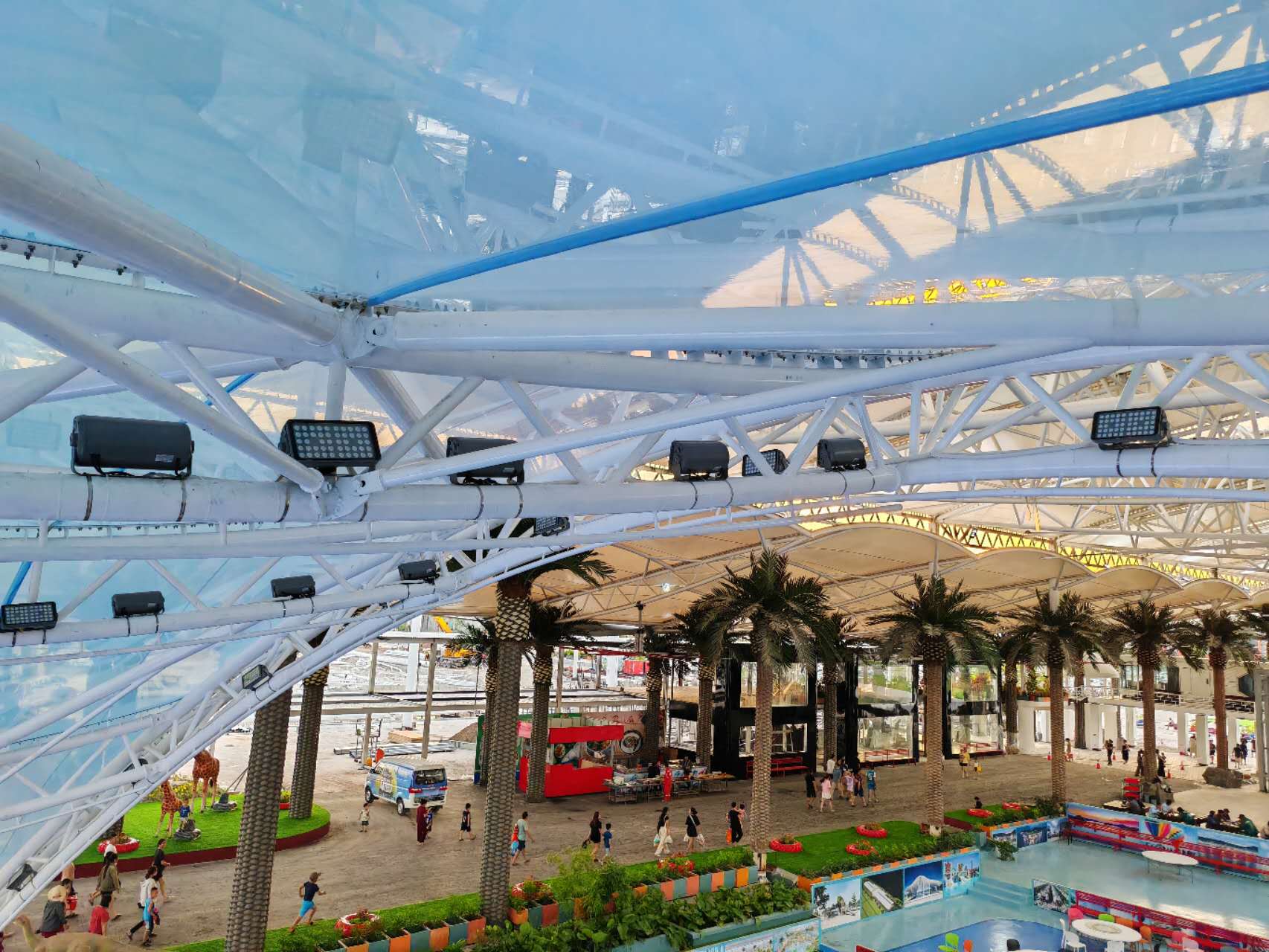

Structure Illumination: Green floodlights illuminate the dome steel structure, simulating the translucent light of a rainforest canopy.
🌴 Plant Ambiance: Warm white floodlights highlight artificial palm trees, creating realistic tropical plant shadows.
🌟 Stage Focus: Zoomable floodlights in the main stage area provide dynamic follow spots synchronized with performances.
🛋️ Functional Lighting: Low-brightness warm white floodlights illuminate dining tables, balancing ambiance and visibility.
Dynamic Effect Design: The DMX512 system enables color gradients, brightness breathing, and zone linkage, automatically switching scenes with nighttime performance rhythms.
2.3 Localized Implementation & Services
Construction Adaptation: Provided Vietnamese-language installation manuals and on-site technical engineers to guide local teams in wiring, installation, and commissioning, complying with local construction codes.
Power Grid Adaptation: Custom wide-voltage drivers (AC180–240V) to address Vietnam’s grid voltage fluctuations.
After-Sales Support: Established a spare parts warehouse in Ho Chi Minh City, offering 2-year free warranty + lifetime maintenance training, ensuring 24-hour response to fixture failures.
3. Project Implementation Process
On-Site Survey & Design: 7 days (site measurement, climate assessment, 3D effect rendering)
Fixture Customization & Production: 25 days (optimized fixture structure for Vietnamese climate, mass production)
Cross-Border Logistics & Customs Clearance: 10 days (land transport via Vietnam border, assisting with tariff declaration)

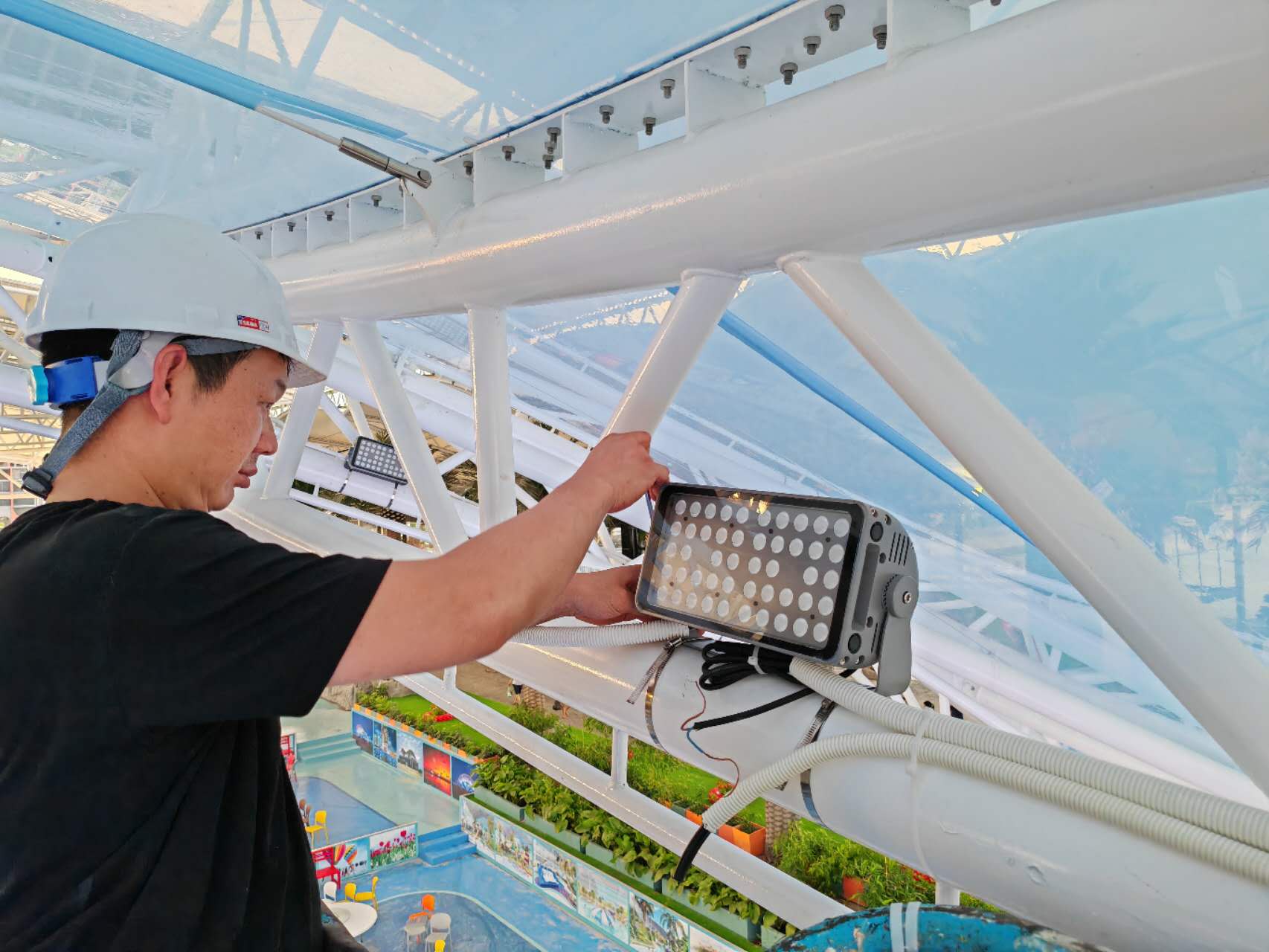

On-Site Installation & Commissioning: 15 days (guiding local teams in wiring, fixture installation, and system debugging)
Acceptance & Training: 3 days (client acceptance of lighting effects, operation training for the maintenance team)
4. Core Project Outcomes
4.1 Scene Effect Improvement

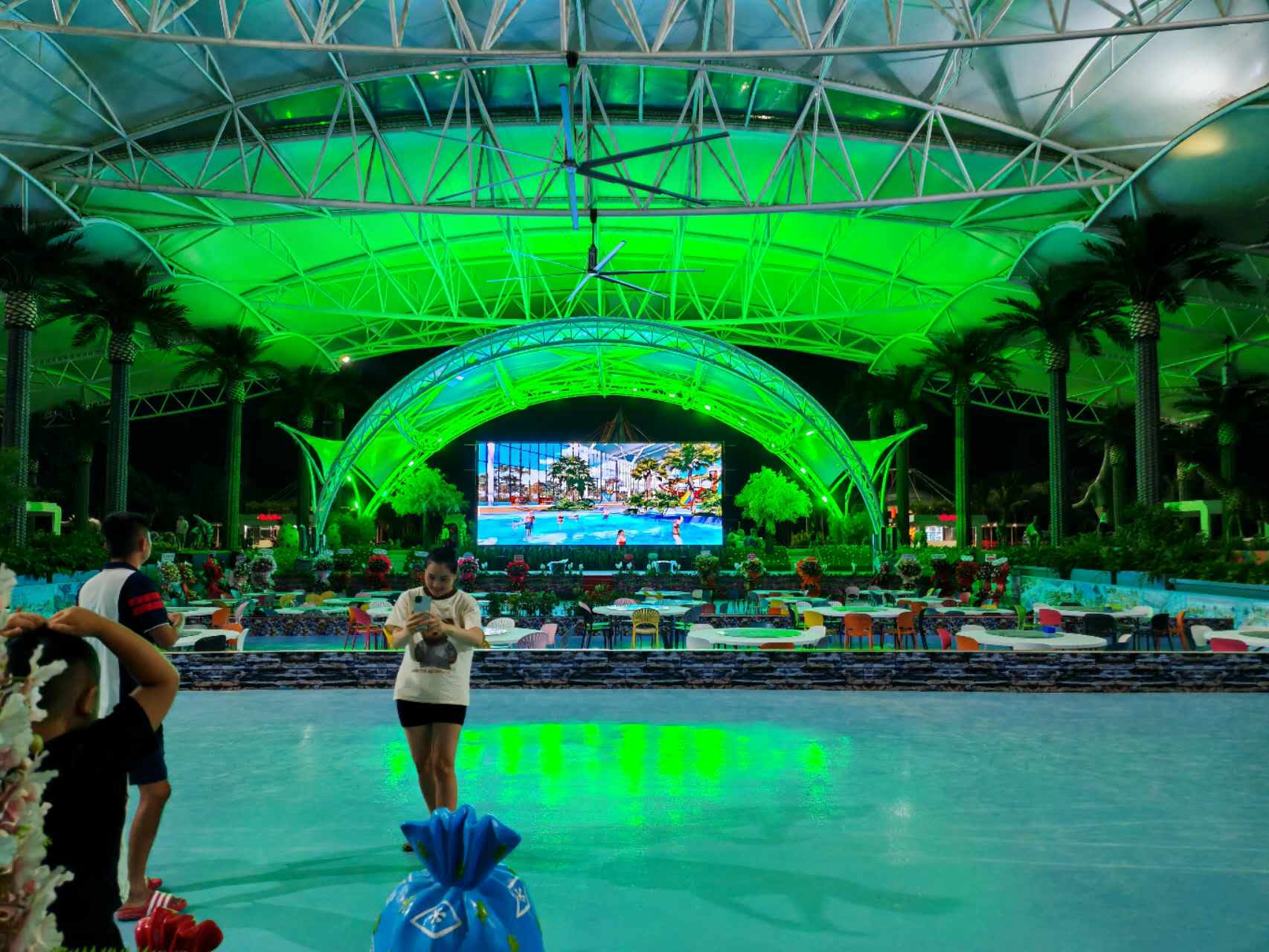

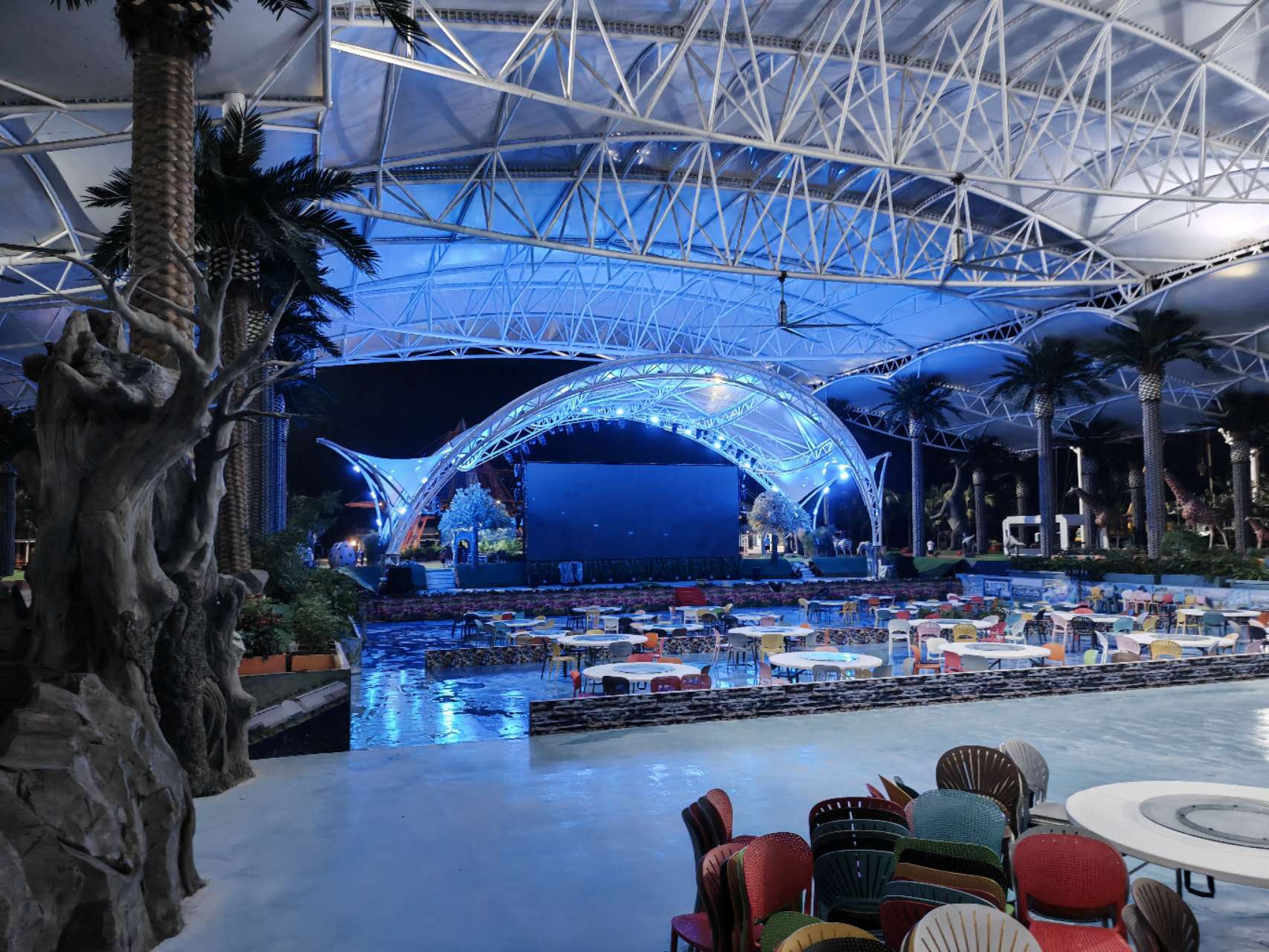

Nighttime Ambiance: Successfully created an immersive "Rainforest Dome" atmosphere, with 100% dome coverage by green floodlights and 92% uniformity.
Dynamic Performance: 8 preset scenes with one-click switching, ≤0.5s response time, and lighting synchronized with music during performances.
Durability Verification: Withstood 3 tropical rainstorms without water ingress or short circuits, achieving ≤3% annual light decay.
4.2 Business Value Enhancement
| Metric | Before Project | After Project | Improvement |
| Daily Nighttime Foot Traffic | 800 people | 1,160 people | +45% |
| Nighttime Revenue Share | 18% | 42% | +133% |
| Social Media Exposure | 0/month | 150,000/month | — |
| Customer Satisfaction Score | 3.2/5 | 4.8/5 | +50% |
4.3 Technical Breakthroughs
First large-scale dome dynamic lighting project in Vietnam, solving fixture durability issues in high-humidity, salt-spray environments.
Established a localized after-sales system, providing a replicable operation and maintenance model for future Southeast Asian projects.
5. Project Highlights & Innovations
Climate Adaptability Innovation: Custom anti-salt-spray coating and wide-voltage drivers extended fixture lifespan by 20% compared to industry standards, tailored for Vietnam’s tropical coastal climate.
Scenario-Based Dynamic Control: The DMX512 system enabled "breathing" lighting effects, making the dome structure exhibit natural light rhythms and enhancing visitor immersion.
Localized Delivery Capability: Full-process Vietnamese-language services, from design to construction, resolved communication and implementation challenges in cross-border projects.
6. Client Testimonial
"We originally only wanted to improve nighttime lighting, but this floodlight project turned our venue into Nha Trang’s most popular nighttime check-in spot! The lighting effects exceeded expectations, and the system remained stable even during the rainy season. The professionalism and localized service of the Chinese team gave us great confidence."
— Operations Director, Vietnam Cultural & Tourism Complex
7. Industry Experience Summary
The core of cultural tourism lighting projects in Southeast Asia is climate adaptability, requiring customized designs for high temperature, humidity, and salt spray.
Dynamic lighting effects are key to enhancing commercial value—scene requirements must be communicated early to enable quick preset scene switching.
The success of cross-border engineering depends on localized services, including language support, on-site construction guidance, and spare parts inventory, to build long-term client trust.
