Ceiling Height | Target Lumens | Wattage Range | Fixture Type |
|---|---|---|---|
12–20 ft | 10,000–15,000 lm | 80–100W | UFO lights |
20–40+ ft | 15,000–40,000+ lm | 150–300W | Linear lights |
Spaces with ceilings from 12 to 20 feet high require directional high bay lighting. Facility managers choose correct led high bay light fixtures to avoid fatigue and low energy efficiency. Matching the proper led high bay light to a warehouse maximizes safety. Modern led high bay lights fulfill strict lighting requirements. Upgrading to led high bay lights yields a 60% energy cost reduction over metal halide options. They provide high brightness across the facility. High brightness lights raise operational efficiency while delivering energy saving light everywhere. Reliable fixtures transform warehouse lighting effectively.
Key Takeaways
Pick long, straight LED lights for tight warehouse walkways, and choose round UFO lights for big, open spaces.
Calculate the light brightness you need using your ceiling height to keep your building floor brightly lit.
Pick the right light beam angles and place fixtures well to prevent dark spots and uncomfortable overhead glare.
Choose IP65-rated aluminum lights with bright 5000K cool daylight to keep your lights safe and help workers stay awake.
Selecting the Ideal LED High Bay Light Form Factor
Facility managers must always pick the right shape of led high bay light for their building design. Fixture shape directly affects how light spreads across active work areas and facility floors.
Linear Fixtures for Warehouse Aisles
Linear fixtures fit narrow rack paths inside a warehouse layout very well. Long fixtures send light down long aisles quite efficiently. They shine light on vertical shelf faces evenly. Workers read inventory labels clearly from the ground up to top shelves.
Aspect | Linear High Bay | UFO High Bay |
|---|---|---|
Beam pattern | Rectangular optics | Circular spread |
Aisle performance | Optimizes vertical light on racks | Concentrates light on upper layers |
Primary application | Narrow aisle racking | Open warehouse bays |
Linear led high bay lights reduce dark shadows between tall shelves. These led high bay light fixtures point light downward without wasting power on rack tops. Picking this style of led high bay light keeps thin storage aisles safe. New led high bay lights replace old fluorescent tubes with far better energy efficiency.

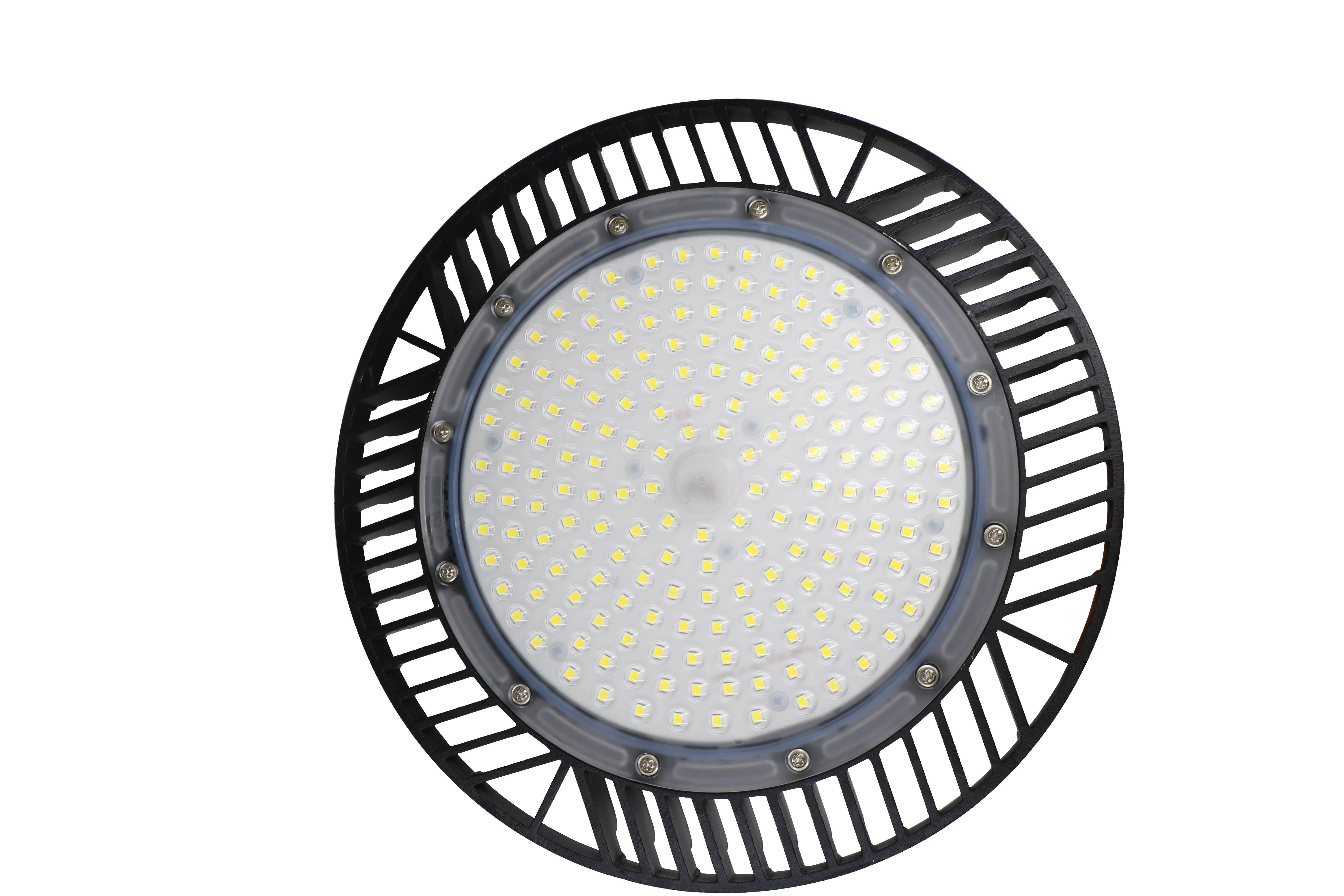

UFO LED Lights for Open Spaces
UFO round lights work in open storage spots remarkably well. These small lights make a round beam pattern over broad floors. Facility managers place led high bay lights in factory areas, loading docks, and store spaces. These led high bay lights brighten wide storage floors from tall ceiling spots.
Guangdong Liyinled Lighting Co., Ltd. makes strong industrial fixtures. Their Liyinled LED UFO High Bay Light series gives great flexibility across various building heights. Types like APL-UFO-06, APL-UFO-05, and APL-UFO-02 offer high lumen output. These high bay fixtures use smart heat control to chill the led light engine constantly. Good heat removal lengthens total fixture life greatly.
Round led high bay light fixtures give clear, even light across open floor areas. New round lights hang easily from tall ceilings with basic hook mounts. Building managers pick these led high bay lights to lower ongoing upkeep costs greatly. Current led tech keeps power use low while making high brightness constantly. These sturdy lights boost overall workplace safety and visibility.
Calculating Photometrics for Warehouse Lighting
Lumen Output and Mounting Height Rules
Building managers find starting light levels by checking ceiling heights between 12 and 45 feet. Tall ceilings need strong led high bay lights to push good light down to floor areas. Over time, led bulbs slowly lose brightness during continuous work. The L70 score shows how many hours lights run before brightness drops down to 70%. As an example, led high bay light fixtures with 20,000 original lumens give 14,000 lumens after 50,000 hours.
Designers calculate this fading output by using Light Loss Factors. A smaller factor means you must start with a higher output. Light output drops from 100% at zero hours down to 90% at 10,000 hours, 85% at 20,000, 80% at 30,000, 75% at 40,000, and 70% at 50,000 hours. Managers multiply initial goals by 1.43 to keep target brightness steady over total fixture life. Good math planning keeps strong light steady for warehouse space.
Beam Angle Selection for Optimal Coverage
Picking beam angles sets how total light spreads across open floor spaces. Open rooms with ceilings between 10 and 16 feet high run best with a wide 120° beam angle. This wide beam spread makes smooth light without creating dark spots on open floors. Good distance planning stops dark spots under work lights. Picking wide beam angles spreads bright light over big floor spaces easily.
A 60 degree or 90 degree beam may place more useful light down the aisle and onto rack faces. But narrow does not mean safe by default. If fixtures are spaced too far apart, the design can create bright pools under fixtures and dark gaps between them.
Tall storage racks between 30 and 50 feet high need a narrow 60° beam angle. Narrow beam angles shoot light straight down thin paths. Bad distances between fixture spots cause uneven light distribution. Setting the right distance between fixtures prevents dark areas around directional lights. Layout workers adjust lighting distance based on room height. Setting correct fixture spacing keeps light levels even everywhere. Buying sturdy fixtures and good led high bay lights boosts overhead light systems. New led high bay lights raise floor safety. Setting up modern led high bay light choices improves warehouse lighting setups for bright floors.
Evaluating LED High Bay Lights Specs
Color Temperature and Glare Control
Picking the right color temperature for led high bay lights helps workers focus better inside factories. A 5000K light gives off cool daylight brightness. This bright light makes it easy to read barcodes and drive forklifts safely. The high 0.85 melanopic ratio in 5000K lights keeps staff alert through long work shifts.
Higher temperatures like 5000K emit a cooler, bluish light akin to daylight, stimulating alertness and concentration. Conversely, 4000K lighting can facilitate better communication and create an atmosphere that promotes teamwork and vigilance, essential for safety in warehouses.
Workplaces with ten-hour shifts often use 4000K options around main work zones. This color lowers eye fatigue and cuts down on harsh light reflection for workers. Special lens covers on new led high bay light fixtures protect eyes from bright direct light. Smart optical covers spread light smoothly over big floor areas. As a result, bosses boost daily output while protecting team health.
Thermal Management and IP Ratings
Industrial buildings need tough led high bay light fixtures with great heat controls. Guangdong Liyinled Lighting Co., Ltd. builds strong aluminum bodies to cool all led high bay lights fast. Fast heat removal stops the power driver from breaking down early. This design protects inner led parts and makes every light unit last much longer. Good cooling paths in these heavy-duty fixtures ensure steady performance in hot work spots.
Spec Feature | Standard Rating | Operational Benefit |
|---|---|---|
Ingress Protection | IP65 rated | Protects led high bay lights against dust |
Thermal Design | Aluminum heat sink | Maximizes total operational lifespan |
Heavy dust and water can ruin basic high bay fixtures over time. Building owners place IP65 rated UFO led high bay lights and waterproof linear led high bay lights in supply hubs. These top fixtures stop fine dust from getting inside while these reliable lights run nonstop. Built-in motion sensors turn down top lights when areas stay clear. Smart sensor tools cut power costs and offer great energy saving perks. Picking bright led high bay lights with energy saving features lifts overall work output while boosting total lighting efficiency.
Sizing Calculations and Purchasing Pitfalls
Determining Warehouse Fixture Quantities
Facility managers calculate total light levels before buying high bay fixtures. They find out how many led high bay lights their room needs with a quick test. Workers multiply total space by target foot-candles. Next, they divide that number by usable lumens per light. A clean building uses a light loss factor from 0.75 to 0.85. For instance, a 10,000 square foot building needing 20 foot-candles takes 200,000 total lumens. A light making 26,000 lumens with a 0.75 real factor gives 19,500 lumens. Dividing 200,000 by 19,500 means buying 11 total units.
Good light placement gives smooth brightness across all active floors. Planners set up high bay lighting layouts easily. Facility planners check room height to find proper distance rules. Basic spacing between lights ranges from 0.8 to 1.2 times ceiling height. For example, an 8-meter setup height needs a suggested spacing range of 6 to 9 meters. Proper distance stops dark spots between lights. High output areas need close spacing to give clear sight. Correct distance math boosts energy savings. Picking led high bay light fixtures needs full ceiling checks.
Common Industrial Lighting Errors
Many buyers make errors when setting high bay lighting layouts. First, buyers pick lights based on watts instead of reading lumens per watt. New led units give high output while saving real power. Second, workers ignore optical beam angles during room planning. A wide beam spread makes low floor light when hung from high ceilings. But a narrow beam makes bright spots under lights and leaves dark gaps between fixtures. Proper beam choices control light spread very well. Also, adding led high bay light fixtures improves clear sight.
Skipping care planning causes weak light over long fixture lives. Heavy dust and old led parts drop light output over time. Also, bad spacing makes uneven light spread across active walkways. Workers keep good spacing between lights to stop harsh glare and tired eyes. Bosses decide how many led high bay lights to buy by checking spacing rules and tall height numbers. Setting led high bay lights right keeps staff safe. Putting in new led high bay lights lifts daily work. Picking good led high bay lights gives great results. Top industrial lights give strong power. Modern led high bay light fixtures give true trust.
Picking the right high bay lighting takes simple planning steps. First, facility managers check their ceiling height. Then, workers select linear fixtures or UFO round lights to match their floor plan. Figuring out light targets keeps work areas bright. Finally, reading durability ratings ensures fixtures last a long time.
Buyers should check these important details before purchasing led high bay light fixtures:
Proper voltage range and dimming controls
Strong cooling design for a long life span
Good warranty protection for high bay lighting setups
Switching to Liyinled led high bay lights brings high energy efficiency. These led high bay lights offer great power savings in large buildings. Modern led high bay lights reduce total energy bills. Bright illumination improves workplace safety. Reliable led fixtures boost clear visibility. Liyinled provides custom industrial lighting options.
FAQ
How do facility managers calculate how many led high bay lights an open warehouse layout requires?
Managers multiply total floor area by target foot-candles. Next, they divide that figure by fixture lumens. Proper fixture spacing prevents dark gaps. Installers set spacing between 0.8 and 1.2 times ceiling height. This precise spacing delivers balanced overhead lights across active work floors.
Why does fixture spacing matter for ceiling lights?
Correct spacing distributes light output evenly across active floors. Wide spacing creates dark gaps between work zones. Conversely, tight spacing causes harsh glare. Proper spacing maintains clear sight lines. Facility managers maintain visibility to support workplace safety in demanding environments.
What common errors occur when purchasing industrial lights?
Buyers often evaluate wattage instead of checking lumens per watt. Others ignore optical beam angles during layout planning. Wide beam angles on tall ceilings produce weak ground light. Additionally, improper fixture spacing leaves dark spots. Choosing IP65 rated UFO lights prevents dust damage.
How does Liyinled assist buyers with factory customization?
Guangdong Liyinled Lighting Co., Ltd. provides tailor-made industrial options like the APL-UFO-06 series. Engineers design custom beam optics and aluminum heat sinks. Facility teams calculate how many led high bay lights their space needs through detailed photometric layouts. Modern UFO lights improve overall operations.
